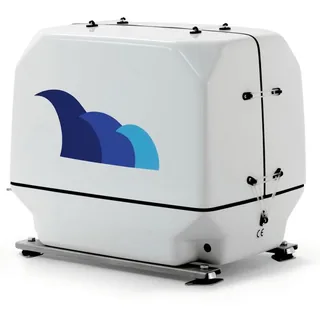

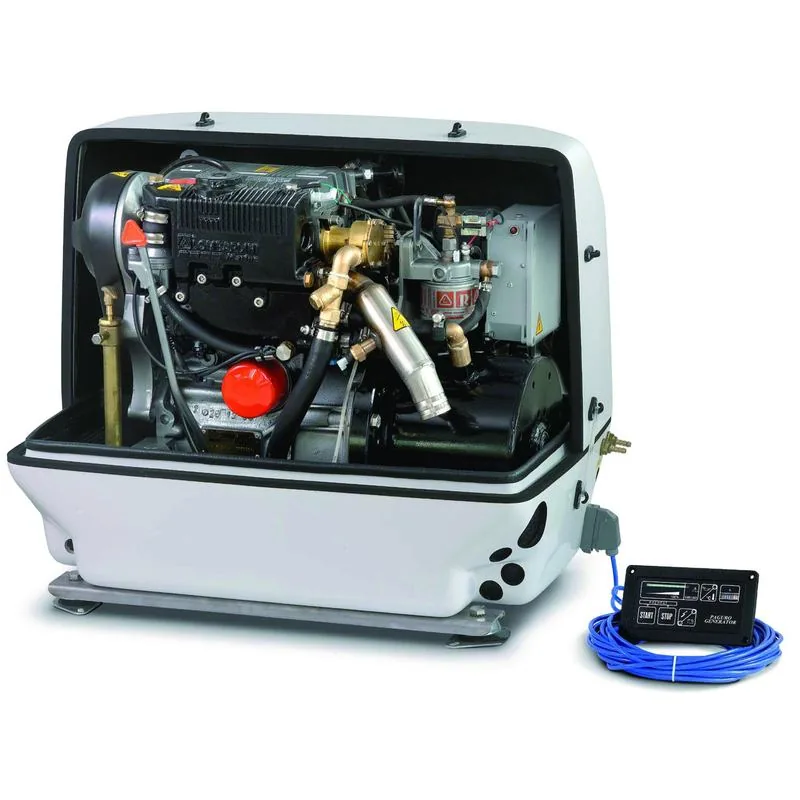

VTE Paguro 8500 Marine Generator 8.5 kW 60 Hz

VTE Paguro 8500 is a compact and quiet marine diesel generator designed to provide reliable onboard electrical power for yachts, motorboats, and other marine applications. Delivering 8.5 kW of continuous electrical power at 60 Hz, the Paguro 8500 operates at 1800 RPM and is powered by a Lombardini LDW 1404 four-cylinder diesel engine.

The generator features a synchronous brushless alternator, capacitor regulation, freshwater cooling with a stainless steel AISI 316 L heat exchanger, and a 12 V electric starting system. Its super-silenced enclosure and dual anti-vibration system help reduce noise and vibration, with a reported acoustic pressure of 49 dB(A). The unit also includes a remote control system with LCD display, load indicator, engine frequency/speed monitoring, hour meter, and automatic shutdown protection.

Specifications

- Brand: VTE Paguro
- Manufacturer: VTE Srl – Italy
- Model: Paguro 8500
- Reference: AP08511560S0
- Type: Marine Diesel Generator
- Fuel Type: Diesel
- Continuous Electrical Power: 8.5 kW at 60 Hz
- Continuous Apparent Power: 8.5 kVA at 60 Hz
- Frequency: 60 Hz
- Engine Speed: 1800 RPM at 60 Hz
- 50 Hz Engine Speed: 1500 RPM
- 50 Hz Output: 8.0 kW / 8.5 kVA
- Voltage: 115/230 V at 60 Hz
- Voltage: 230 V at 50 Hz
- Phase: Single Phase
- Peak Current: 204 A at 60 Hz
- Peak Current: 102 A at 50 Hz
- Engine Manufacturer: Lombardini
- Engine Model: LDW 1404
- Number of Cylinders: 4
- Engine Mechanical Power: 11.5 kW
- Alternator Type: Synchronous, Brushless
- Alternator Regulation: Capacitor Regulation
- Alternator Insulation: Class H
- Alternator Cooling: Water-Cooled
- Heat Exchanger: Stainless Steel AISI 316 L
- Cooling System: Freshwater with Heat Exchanger
- Cooling Pump: Self-Priming
- Specific Diesel Fuel Consumption: 0.35 L/kW/h
- Starting System: 12 V Electric
- Battery Charger: 12 V / 8 A
- Remote Control: LCD Remote Control Panel
- Remote Cable: 15 m
- Noise Level: 49 dB(A)
- Soundproofing: Super-Silenced
- Anti-Vibration System: Double Anti-Vibration System
- Dimensions: Approximately 860 × 580 × 650 mm
- Dry Weight: 200 kg
- Water Inlet: 19 × 1/2 in
- Exhaust Line: 45 mm
- Diesel Fuel Supply: 8 mm
- Diesel Fuel Return: 8 mm
- Anti-Siphon Valve: 19 mm
- Remote Panel Protection: IP65

Key Features

- 8.5 kW continuous marine generator output
- 60 Hz operating frequency
- 1800 RPM low-speed operation
- Lombardini LDW 1404 four-cylinder diesel engine
- Single-phase 115/230 V output at 60 Hz
- 230 V output at 50 Hz
- Synchronous brushless alternator
- Capacitor voltage regulation
- Class H alternator insulation
- Freshwater cooling with heat exchanger
- AISI 316 L stainless steel heat exchanger
- 49 dB(A) super-silenced operation
- Double anti-vibration system
- 12 V electric starting system
- 12 V / 8 A battery charger
- LCD remote control panel
- Engine speed and frequency monitoring
- Load indicator
- Hour meter
- Automatic shutdown for low oil pressure
- Automatic shutdown for high temperature
- 15 m remote-control cable
- Compact and space-saving marine design
- Suitable for yachts and motorboats
- Designed for reliable onboard auxiliary power
