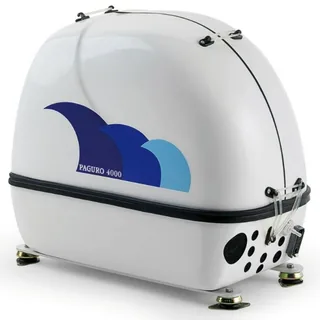

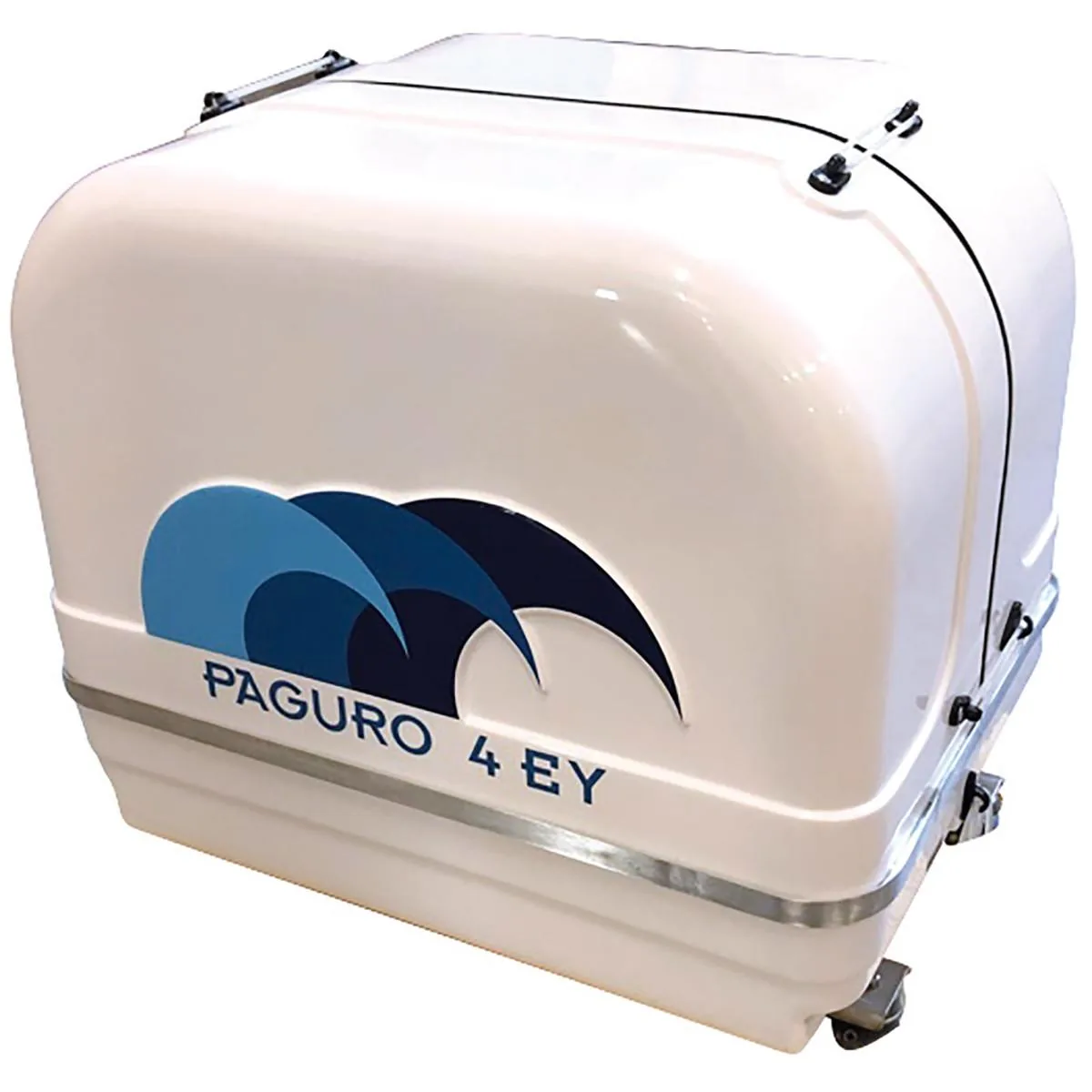

VTE Paguro 4000 Marine Generator 3.2 kW 60 Hz

VTE Paguro 4000 is a compact and quiet marine diesel generator designed to provide reliable onboard electrical power for yachts, motorboats and other marine applications. Powered by a Yanmar L70 1-cylinder diesel engine, the Paguro 4000 delivers 3.2 kW of continuous electrical power at 60 Hz and operates at 3600 RPM. Its compact soundproof design, water-cooled engine and alternator, low vibration system, and marine-grade stainless steel components make it a practical auxiliary power solution for vessels where space, noise and reliability are important considerations.

The Paguro 4000 includes a remote digital control panel, a 15-meter (49 ft) harness, and a sound shield. Components exposed to raw water are manufactured from AISI 316 L stainless steel for marine durability. The generator also incorporates automatic protection against overheating and low oil conditions.

Specifications

- Brand: VTE Paguro
- Model: Paguro 4000
- Part Number: 4EY
- Type: Marine Diesel Generator
- Engine Manufacturer: Yanmar
- Engine Model: L70
- Number of Cylinders: 1
- Fuel Type: Diesel
- Continuous Electrical Power: 3.2 kW
- Frequency: 60 Hz
- Engine Speed: 3600 RPM
- Mechanical Power: 3.2 kW at 60 Hz
- Voltage Output: Single Phase 115 V
- Phase: Single Phase
- Peak Current: 80 A
- Continuous Duty Current: 28 A
- Alternator Manufacturer: V.T.E. Srl – Italy
- Alternator Type: Synchronous, Brushless
- Alternator Regulation: Capacitor Regulation
- Alternator Cooling: Water-cooled through stainless steel AISI 316 L heat exchanger
- Battery Charging: 12 V – 8 A
- Fuel Consumption: 0.35 L/kW/h
- Cooling System: Freshwater with heat exchanger
- Cooling Pump: Self-priming
- Starting System: Electric 12 V
- Remote Control: Yes
- Remote Panel Harness: 15 m / 49 ft
- Dimensions: 24.8 × 18.1 × 22 in
- Dimensions: 629 × 459 × 558 mm
- Weight: 209 lb / 94 kg
- Noise Level: 53 dB(A)
- Sound Shield: Included
- Raw Water Components: AISI 316 L stainless steel
- Warranty: 2 years from date of purchase
- 50 Hz Version: Available

Key Features

- 3.2 kW continuous marine generator output
- 60 Hz operating frequency
- 3600 RPM Yanmar L70 diesel engine
- Single-cylinder diesel engine
- Single-phase 115 V output
- 80 A peak current
- 28 A continuous-duty current
- Synchronous brushless alternator
- Water-cooled engine and alternator
- Freshwater cooling with heat exchanger
- Stainless steel AISI 316 L heat exchanger components
- 53 dB(A) noise level
- Compact and lightweight generator package
- Soundproof capsule with sound-absorbing materials
- Dual anti-vibration mounting system
- Automatic overheat protection
- Automatic low-oil protection and shutdown
- 12 V electric starting system
- 12 V / 8 A battery charging
- Remote digital control panel
- 15 m / 49 ft remote-panel harness
- Suitable for yachts and motorboats
- Designed for reliable onboard auxiliary power
- 2-year standard VTE warranty
