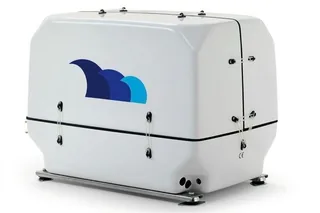

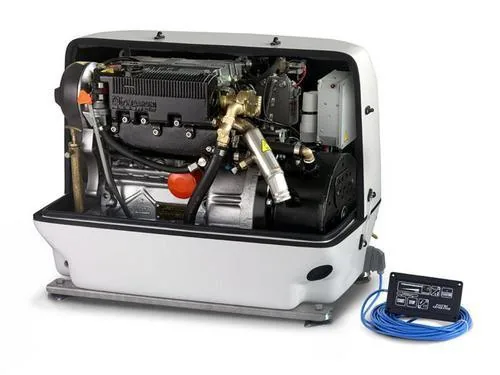

VTE Paguro 18000 Marine Generator 18 kW 60 Hz

VTE Paguro 18000 is a high-power marine diesel generator designed to provide reliable onboard electrical power for yachts, motorboats, and other demanding marine applications. It delivers 18 kW of continuous electrical power at 60 Hz and operates at 3600 RPM. The generator is powered by a Lombardini LDW 1404 four-cylinder diesel engine and uses a water-cooled synchronous brushless alternator.

The Paguro 18000 is engineered around a combination of high power, compact dimensions, quiet operation, and low vibration. Both the engine and alternator are water-cooled, while the reinforced fiberglass soundproof capsule and high-density acoustic insulation help reduce operating noise. A dual anti-vibration system further reduces vibration transmitted to the vessel.

Specifications

- Brand: VTE Paguro
- Manufacturer: V.T.E. Srl – Italy
- Model: Paguro 18000
- Part Number: VTE PAGURO 18000
- Type: Marine Diesel Generator
- Fuel Type: Diesel
- Continuous Electrical Power: 18 kW at 60 Hz
- Continuous Apparent Power: 21 kVA at 60 Hz
- 50 Hz Electrical Power: 18 kW / 18 kVA
- Frequency: 60 Hz
- 50 Hz Version: Available
- Engine Manufacturer: Lombardini Marine – Italy
- Engine Model: LDW 1404
- Number of Cylinders: 4
- Engine Speed: 3600 RPM at 60 Hz
- Engine Speed: 3000 RPM at 50 Hz
- Phase: Single Phase
- Peak Current: 230 / 460 A
- Alternator Manufacturer: V.T.E. Srl – Italy
- Alternator Type: Synchronous Brushless
- Alternator Cooling: Water-Cooled
- Heat Exchanger: Stainless Steel AISI 316 L
- Battery Charging: 12 V / 8 A
- Fuel Consumption: 0.35 L/kW/h
- Cooling System: Freshwater with Heat Exchanger
- Cooling Pump: Self-Priming
- Starting System: 12 V Electric
- Remote Control: Yes
- Remote Panel: Digital
- Remote Harness: 15 m / 49 ft
- Sound Shield: Included
- Soundproof Capsule: Multilayer reinforced fiberglass with acoustic insulation
- Anti-Vibration System: Dual anti-vibration system
- Dimensions: 970 × 580 × 650 mm
- Dimensions: 38 × 22 × 25 in
- Weight with Capsule: 230 kg / 507 lb
- Noise Level: 54 dB(A)
- Raw-Water Components: AISI 316 L Stainless Steel
- Warranty: 2 years
- Application: Marine onboard power, yachts and motorboats

Key Features

- 18 kW continuous electrical output at 60 Hz
- 21 kVA apparent power at 60 Hz
- 3600 RPM operation
- Lombardini LDW 1404 four-cylinder diesel engine
- Synchronous brushless alternator
- Water-cooled alternator
- Freshwater engine cooling with heat exchanger
- AISI 316 L stainless-steel heat exchanger
- 54 dB(A) noise level
- Reinforced multilayer fiberglass soundproof capsule
- High-density sound-absorbing insulation
- Dual anti-vibration mounting system
- 12 V electric starting system
- 12 V / 8 A battery charging
- Digital remote control panel
- Real-time LED power monitoring
- Automatic overheat protection
- Automatic low-oil protection and shutdown
- 15 m / 49 ft remote-control harness
- Compact design for marine installations
- Suitable for yachts and motorboats
- 50 Hz version available
- 2-year VTE warranty
