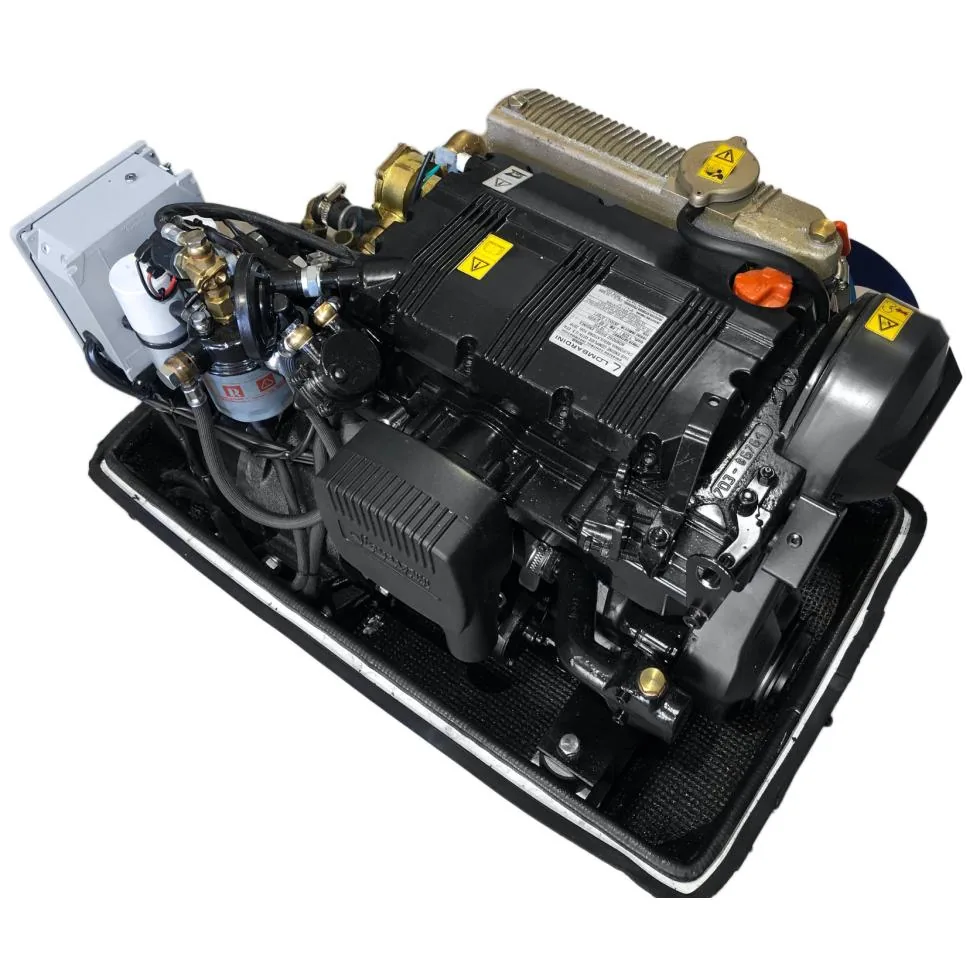

VTE Paguro 6500 Marine Generator 6.5 kW 60 Hz

VTE Paguro 6500 is a compact and quiet marine diesel generator designed to provide reliable onboard electrical power for yachts, motorboats, and other marine applications. Delivering 6.5 kW of continuous electrical power at 60 Hz, the Paguro 6500 combines high power output, compact dimensions, and quiet operation. It is powered by a Lombardini LDW 1003 three-cylinder diesel engine operating at 1800 RPM in the 60 Hz configuration.

The generator features a synchronous brushless alternator, freshwater cooling with a stainless-steel AISI 316 L heat exchanger, electric 12 V starting, automatic overheat and low-oil protection, and a digital remote control panel. The package includes a 15-meter (49 ft) remote-panel harness and Sound Shield. Components that come into contact with raw water are made from AISI 316 L stainless steel for marine durability.

Specifications

- Brand: VTE Paguro
- Model: Paguro 6500
- Part Number: VTE PAGURO 6500
- Type: Marine Diesel Generator
- Fuel Type: Diesel
- Engine Manufacturer: Lombardini, Italy
- Engine Model: LDW 1003
- Number of Cylinders: 3
- Continuous Electrical Power: 6.5 kW at 60 Hz
- Continuous Electrical Power: 6.0 kW at 50 Hz
- Apparent Power: 6.5 kVA at 50 Hz and 60 Hz
- Frequency: 60 Hz
- 50 Hz Version: Available
- Engine Speed: 1800 RPM at 60 Hz
- Engine Speed: 1500 RPM at 50 Hz
- Phase: Single Phase
- Peak Current: 72 / 144 A
- Alternator Manufacturer: V.T.E. Srl – Italy
- Alternator Type: Synchronous, Brushless
- Alternator Regulation: Capacitor Regulation
- Alternator Cooling: Water-cooled
- Heat Exchanger: Stainless Steel AISI 316 L
- Battery Charging: 12 V – 8 A
- Fuel Consumption: 0.35 L/kW/h
- Cooling System: Freshwater with heat exchanger
- Cooling Pump: Self-priming
- Starting System: Electric 12 V
- Remote Control: Yes
- Remote Panel: Digital
- Remote Panel Harness: 15 m / 49 ft

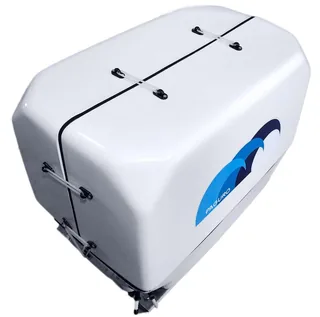

- Sound Shield: Included
- Dimensions: 770 × 460 × 620 mm
- Dimensions: 30 × 18 × 24 in
- Weight with Capsule: 170 kg / 374 lb
- Noise Level: 49 dB(A)
- Raw Water Components: AISI 316 L stainless steel
- Warranty: 2 years from date of purchase

Key Features

- 6.5 kW continuous electrical output at 60 Hz
- 6.0 kW output at 50 Hz
- Lombardini LDW 1003 three-cylinder diesel engine
- 1800 RPM operation at 60 Hz
- 1500 RPM operation at 50 Hz
- Single-phase electrical system
- Synchronous brushless alternator
- Capacitor-regulated alternator
- Freshwater cooling with heat exchanger
- AISI 316 L stainless-steel heat exchanger
- 49 dB(A) low-noise operation
- Sound Shield for reduced operating noise
- Compact marine generator design
- Automatic overheat protection
- Automatic low-oil protection and shutdown
- 12 V electric starting system
- 12 V / 8 A battery charging
- Digital remote control panel
- 15 m / 49 ft remote-panel harness
- Self-priming cooling pump
- Marine-grade AISI 316 L stainless-steel components
- Suitable for yachts and motorboats
- Designed for reliable onboard auxiliary power
- 2-year VTE warranty
