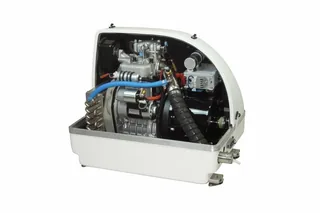

The VTE Paguro 3 SY is an ultra-compact 3 kVA marine diesel generator for vessels requiring 230V, 50Hz single-phase AC power with limited engine-room space. It produces 2.8 kW continuous output and uses a Yanmar L70N single-cylinder diesel engine with a soundproof fiberglass enclosure. It is suited to modest onboard electrical loads such as battery charging, refrigeration, lighting, electronics, and other loads that remain within the generator’s continuous and surge capacity.

The generator operates at 3,000 RPM and uses marine diesel fuel. It has a listed fuel consumption of approximately 0.8 L per hour at 75% load and a stated noise level of approximately 53 dB(A) at 7 m. The package includes a remote start-stop control panel and harness, while fuel supply, exhaust, seawater cooling, AC distribution, starting battery, ventilation, and installation hardware must be designed around the vessel.

Key Specifications

- Ultra-compact fixed-speed marine diesel generator with 2.8 kW, or 3 kVA, continuous output.
- Provides 230V single-phase AC output at 50Hz.
- Uses a Yanmar L70N single-cylinder diesel engine with 320 cc displacement.
- Operates at 3,000 RPM.
- Uses marine diesel fuel with listed consumption of approximately 0.8 L per hour at 75% load.
- Uses direct seawater cooling, with heat-exchanger options depending on the installed version.
- Measures approximately 530 mm by 400 mm by 460 mm and has a listed dry weight of approximately 90 kg.
- Includes remote start-stop control with harness and low-oil-pressure plus high-temperature protection functions.

System Integration

This generator is not a complete onboard AC electrical installation. It requires an appropriately designed diesel fuel system, seawater intake and strainer, exhaust system, ventilation, starting battery, AC distribution panel, shore-power transfer or interlock arrangement, grounding plan, circuit protection, and suitable cabling. Use qualified marine installation and commissioning practices.

Confirm that onboard electrical demand remains within the 2.8 kW continuous rating. Consider the combined operation and starting surge of battery chargers, refrigeration compressors, air-conditioning units, water pumps, galley appliances, and other motor loads. The generator should not be selected from nominal appliance wattage without allowing for simultaneous demand and inrush current.

Installation Considerations

Install the generator on a rigid vibration-isolated foundation with service clearance for oil changes, fuel-system inspection, impeller service, exhaust connections, and electrical access. Ensure reliable cooling-water supply, safe exhaust routing, adequate ventilation, and protected fuel lines. Test voltage, frequency, load response, cooling flow, exhaust integrity, remote controls, warning functions, and automatic shutdowns during commissioning.

Before Ordering

Confirm required continuous and surge load within 2.8 kW, 230V single-phase 50Hz compatibility, available 530 mm by 400 mm by 460 mm installation space, 90 kg structural support, diesel fuel-system layout, seawater intake, exhaust route, ventilation capacity, starting-battery connection, remote-control cable route, AC distribution and transfer-switch design, service access, and qualified marine-generator installation requirements before purchase.
