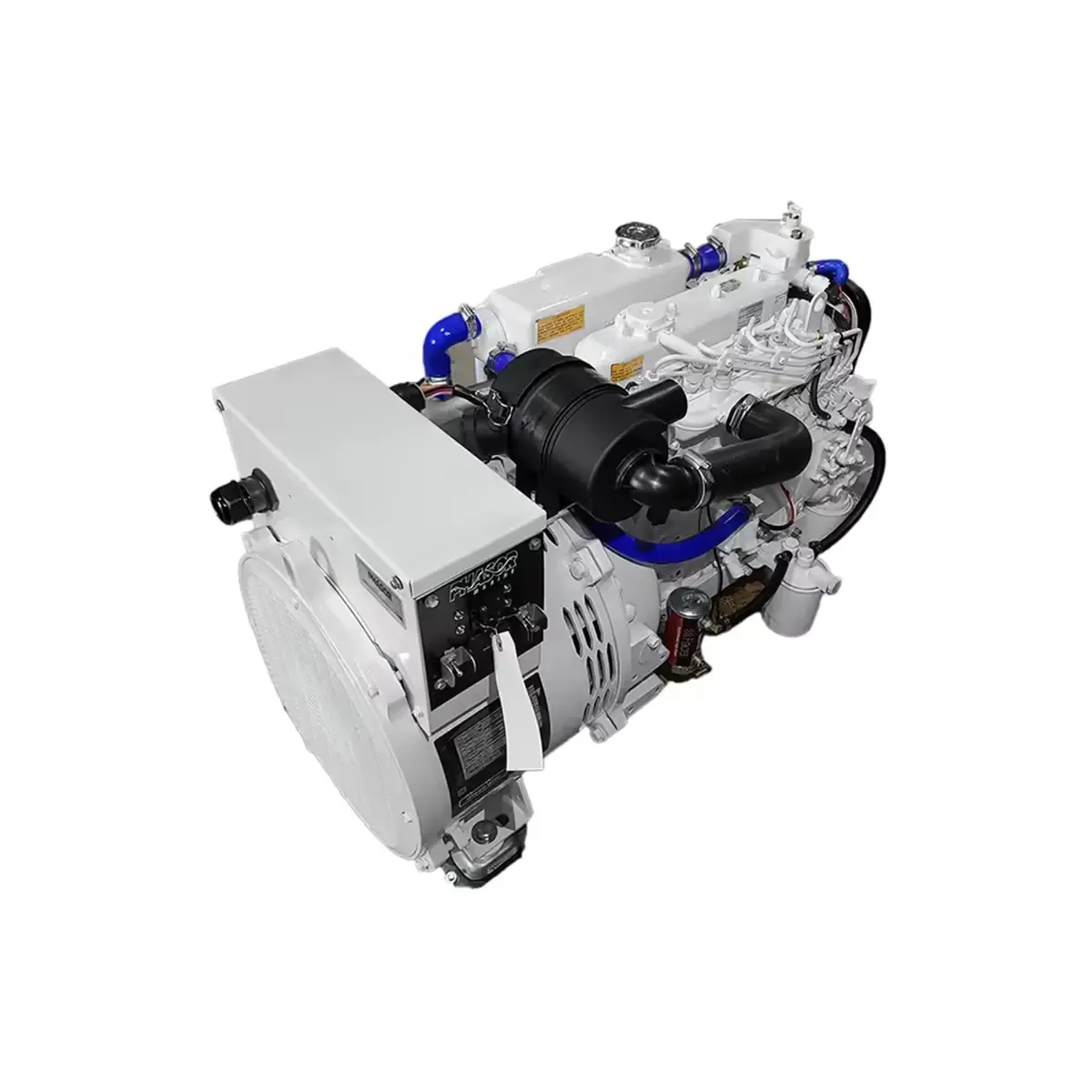

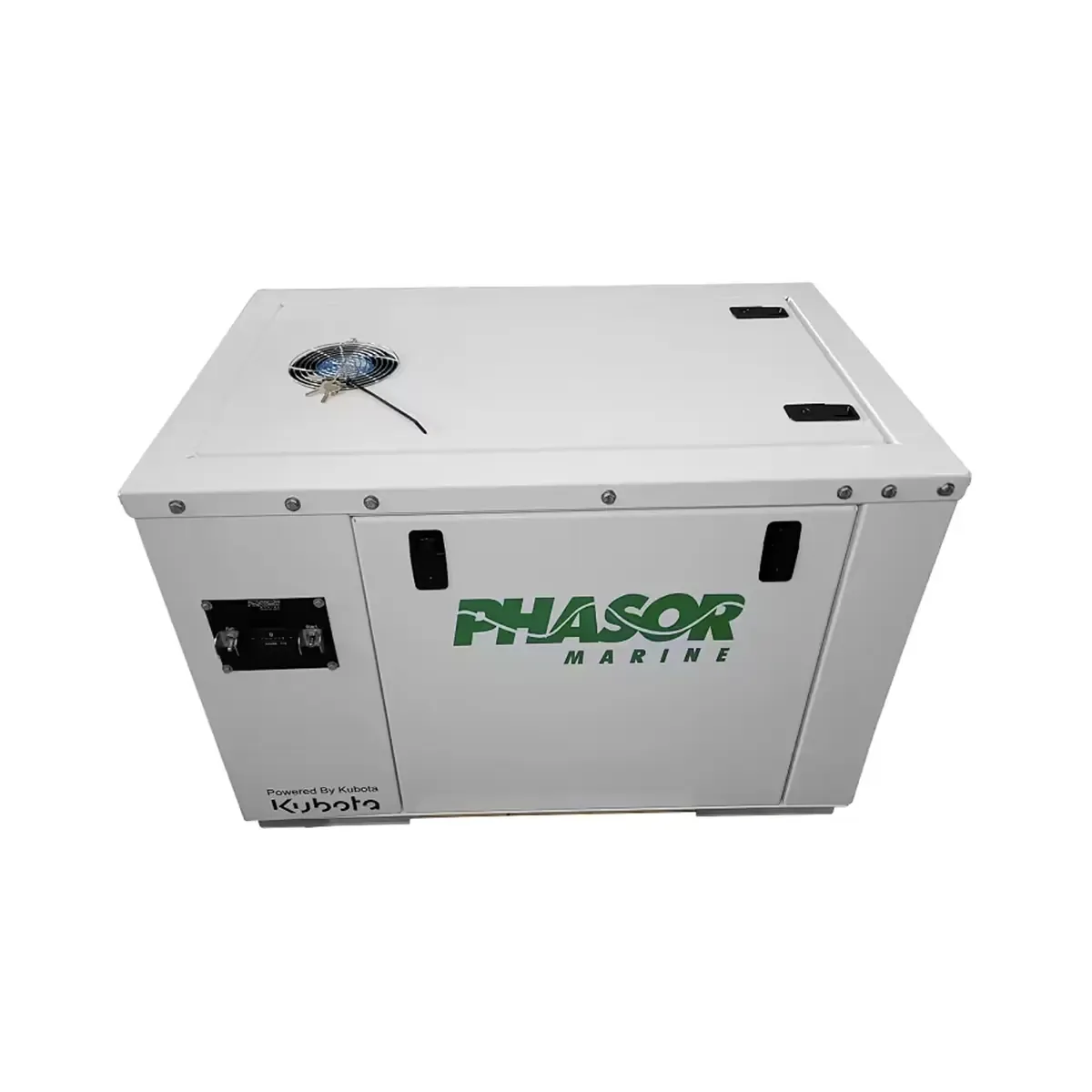

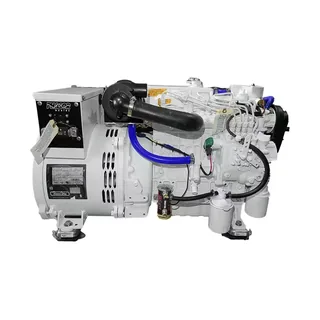

Overview Phasor K4-12.5kW 12.5 kW Marine Generator 120/240V

Phasor K4-12.5kW 12.5 kW Marine Generator 120/240V is a standard series diesel marine generator built with a Kubota V1505-E4BG four-cylinder engine and 1800 RPM operating speed. This model is rated at 12.5 kW at 60 Hz and 10.5 kW at 50 Hz, with listed 120/240V output and 104/52 amp output. For buyers comparing marine generators by confirmed technical data, it offers a clear combination of output, voltage regulation, shutdown protection, and included spare service parts.

Key Features of Phasor K4-12.5kW 12.5 kW Marine Generator 120/240V

- Kubota V1505-E4BG diesel engine with four-cylinder design.
- 12.5 kW rated output at 60 Hz and 10.5 kW rated output at 50 Hz.
- 120/240V output with listed 104/52 amp specification.
- 1800 RPM operating speed.
- ±1% solid-state voltage regulation.
- Safety shutdown system for high coolant temperature or low lube oil pressure.
- Single bearing direct coupled generator design.
- Single series circuit control system with no printed circuit boards and tinned wiring.
- Fresh water double pass heat exchanger with removable integral cupro-nickel heat exchanger core.
- Water cooled exhaust manifold, stainless steel exhaust elbow cast, and gear driven raw water pump.
- Spin-on lube and fuel filters, secondary 5 micron fuel filter, and self bleed fuel system.
- Circuit breaker – single phase, electric fuel transfer pump, and belt guard.

Applications

This generator is suited to buyers looking for a diesel marine generator with stated 12.5 kW output at 60 Hz, dual-frequency rating details, and 120/240V configuration. It is also relevant for replacement or upgrade projects where engine model, output figures, operating speed, and service kit contents are important buying factors.

Why Choose This Marine Generator

This model gives buyers a specification-driven option with clearly stated engine, output, voltage, and fuel consumption data. The product data also confirms voltage regulation, safety shutdown protection, and multiple service-related spare parts included with the unit. The 5 year limited warranty adds a verified ownership detail for customers comparing marine generator options in this output range.
