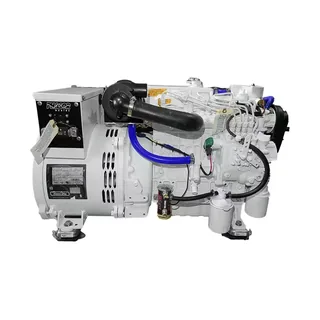

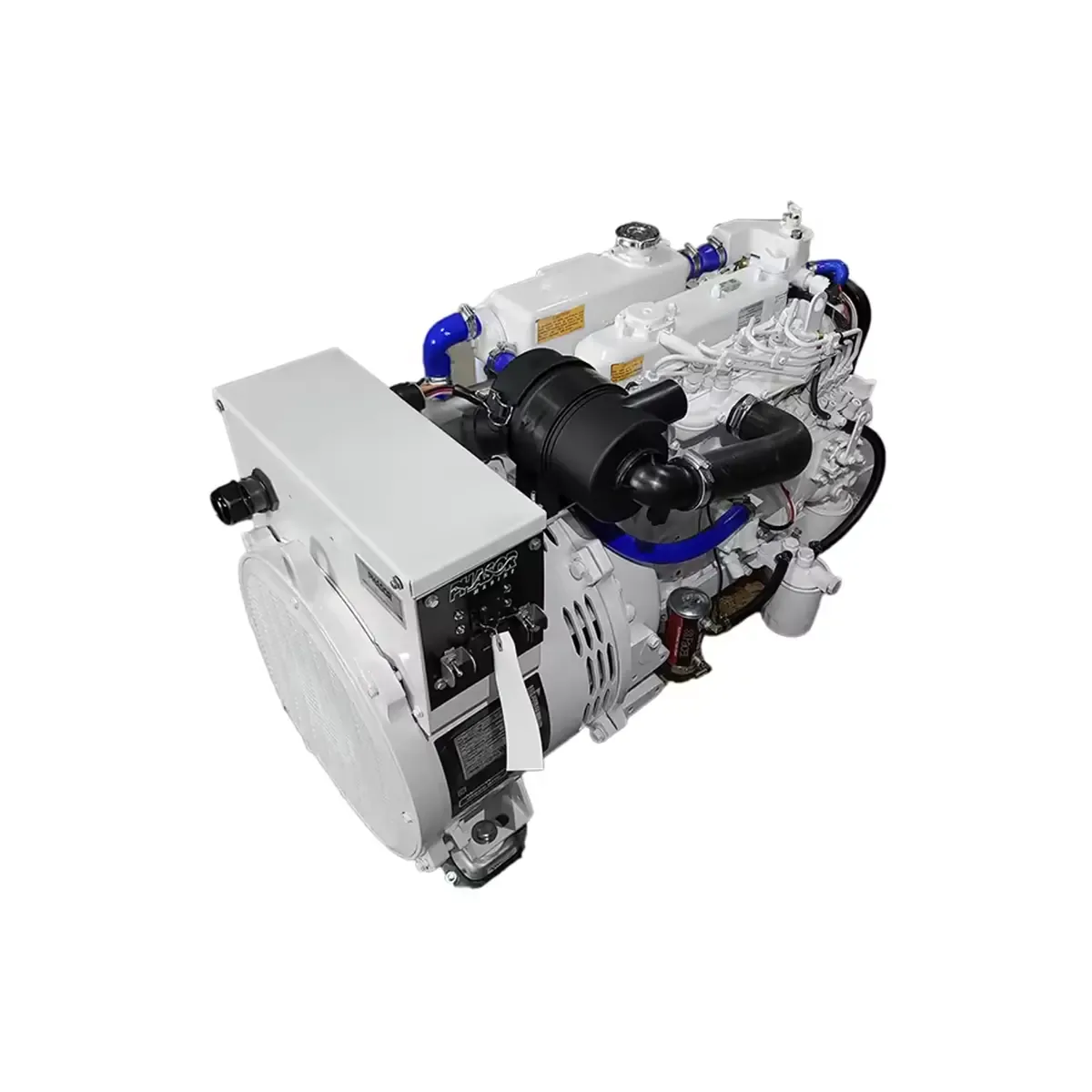

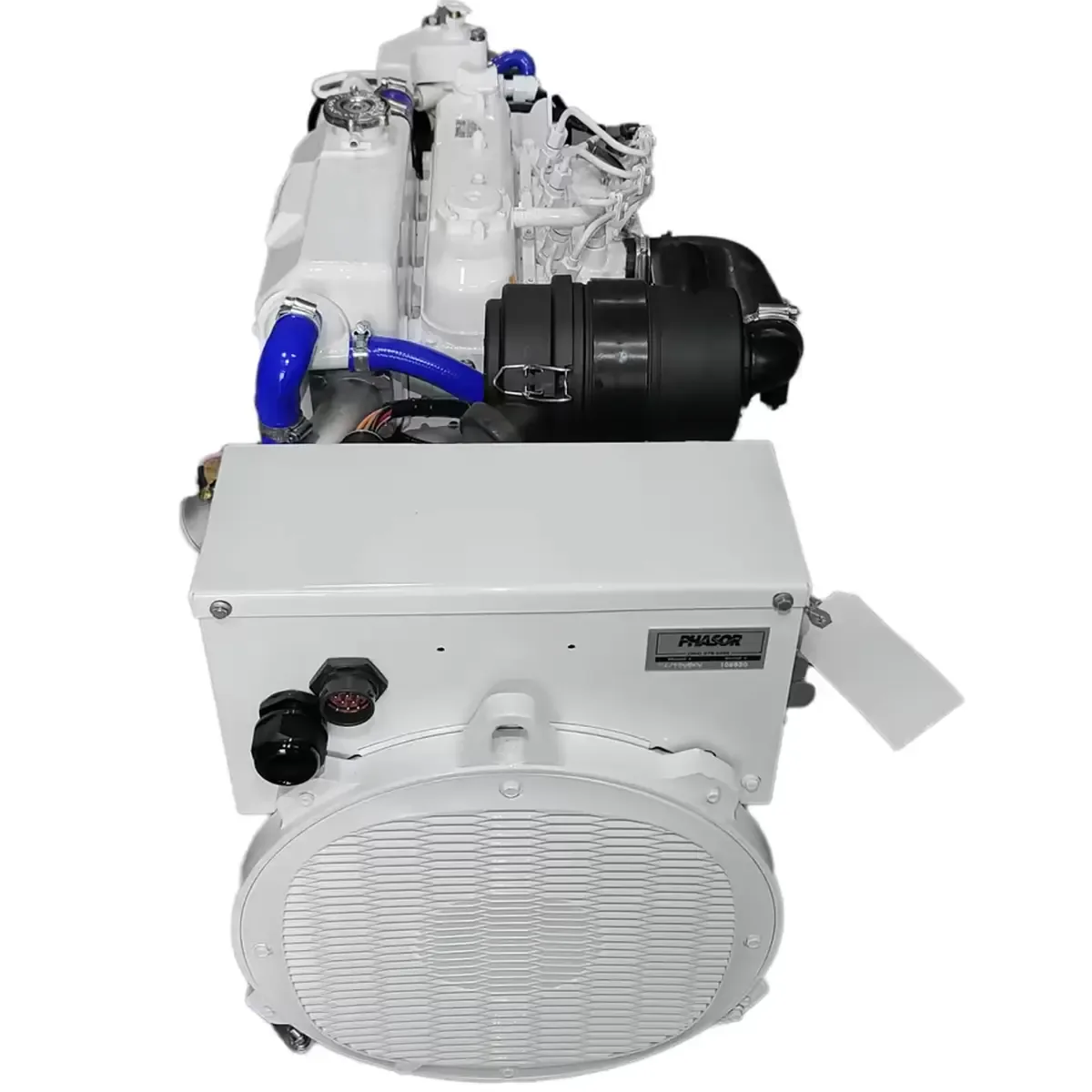

Overview Phasor K3-14.0 kW Marine Generator 120/240V

Phasor K3-14.0 kW Marine Generator 120/240V is a standard series diesel marine generator built with a Kubota D1503-M-E4BG three-cylinder engine and 1800 RPM operating speed. This model is rated at 14.0 kW at 60 Hz and 11.5 kW at 50 Hz, with listed 120/240V output and 116.6/58.3 amp output. For buyers comparing marine generators by confirmed technical data, it offers a clear combination of output, voltage regulation, shutdown protection, and included spare service parts.

Key Features of Phasor K3-14.0 kW Marine Generator 120/240V

- Kubota D1503-M-E4BG diesel engine with three-cylinder design.
- 14.0 kW rated output at 60 Hz and 11.5 kW rated output at 50 Hz.
- 120/240V output with listed 116.6/58.3 amp specification.
- 1800 RPM operating speed.
- ±1% solid-state voltage regulation.
- Safety shutdown system for high coolant temperature or low lube oil pressure.
- Single bearing direct coupled brushless generator design.
- Tinned wiring and freshwater double pass heat exchanger.
- Water-cooled exhaust manifold, stainless steel exhaust elbow cast, and gear-driven raw water pump.
- Spin-on lube filter, secondary 5 micron fuel filter, and self-bleed fuel system.
- Electric fuel transfer pump, forged brass oil drain valve with safety lock, and belt guard.
- Main line circuit breaker and 5-year limited warranty.

Applications

This generator is suited to buyers looking for a diesel marine generator with stated 14.0 kW output at 60 Hz, dual-frequency rating details, and 120/240V configuration. It is also relevant for replacement or upgrade projects where engine model, output figures, operating speed, and service kit contents are important buying factors.

Why Choose This Marine Generator

This model gives buyers a specification-driven option with clearly stated engine, output, voltage, and fuel consumption data. The product data also confirms voltage regulation, safety shutdown protection, and multiple service-related spare parts included with the unit. The 5 year limited warranty adds a verified ownership detail for customers comparing marine generator options in this output range.
