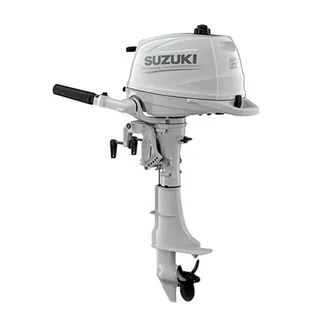

Suzuki DF6ASW3 6HP Outboard Motor

The Suzuki DF6ASW3 6HP Outboard Motor is a lightweight and reliable 4-stroke marine engine designed for small fishing boats, inflatable boats, dinghies, and recreational vessels. It provides smooth power, quiet operation, excellent fuel efficiency, and dependable performance for easy and convenient boating.

Specifications:

- Engine Type: 4-Stroke OHV, 1-Cylinder / 2 Valves
- Displacement: 138 cc (8.4 cu.in.)
- Bore & Stroke: 60.4 x 48 mm (2.38" x 1.89")
- Full Throttle RPM Range: 4,750 - 5,750 RPM
- Alternator Output: 12V, 72W, 6A (Optional installation required)
- Dry Weight Range: 52 lbs (23.5 kg)
- Rated Power: 6 HP
- Fuel Delivery: Carburetor
- Steering Type: Tiller Handle
- Shaft Length: 15" (Short Shaft)
- Body Color: Cool White
- Starting System: Manual Recoil
- Cooling System: Water cooled with thermostat
- Ignition System: Digital CDI
- Exhaust: Above propeller
- Lubrication System: Wet sump
- Oil Capacity: 0.7 L (24 fl oz.)
- Trim Range: 5-Position manual pin adjustment
- Shallow Water Drive: 2-Position settings
- Gear Ratio: 1.92:1
- Gear Shift: F-N-R (Side-mounted lever)
- Standard Propeller Type (Diameter x Pitch): 3-Blade aluminum, 7.5" x 6.5"
- Oil Pressure Alert: Visual indicator window (Sight glass)
- Temperature Alert: N/A
- Rev Limiter: Standard (Over-rev limiter protection)
- Fuel Tank Capacity: 0.26 gal (1.0 Liter) built-in internal tank (External tank ready)
