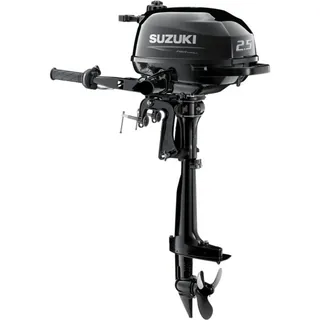

Suzuki DF2.5L3 2.5HP Outboard Motor

The Suzuki DF2.5L3 2.5HP Outboard Motor is a lightweight and portable 4-stroke marine engine designed for small boats, dinghies, and tenders. It provides easy handling, quiet operation, excellent fuel efficiency, and reliable performance for convenient recreational boating.

Specifications:

- Engine Type: 4-Stroke OHV, 1-Cylinder / 2 Valves
- Displacement: 68 cc (4.15 cu.in.)
- Bore & Stroke: 48 x 38 mm (1.89" x 1.50")
- Full Throttle RPM Range: 5,250 - 5,750 RPM
- Alternator Output: None (N/A)
- Dry Weight Range: 31 lbs (14 kg)
- Rated Power: 2.5 HP
- Fuel Delivery: Carburetor
- Steering Type: Tiller Handle (360° rotation)
- Shaft Length: 20" (Long Shaft)
- Starting System: Manual Recoil (with compression reduction)
- Cooling System: Water cooled
- Ignition System: Suzuki PEI Pointless Electronic Ignition
- Exhaust: Above propeller
- Lubrication System: Wet sump
- Oil Capacity: 0.3 L (0.32 US quart)
- Trim Range: 4-Position manual pin adjustment
- Shallow Water Drive: 2-Position settings
- Gear Ratio: 2.15:1
- Gear Shift: F-N (Forward-Neutral, uses 360° steering for reverse)
- Standard Propeller Type (Diameter x Pitch): 3-Blade aluminum, 7.5" x 5.5"
- Oil Pressure Alert: Visual indicator window
- Temperature Alert: N/A
- Rev Limiter: Standard
-
- Fuel Tank Capacity: 0.26 gal (1.0 Liter) built-in internal tank
