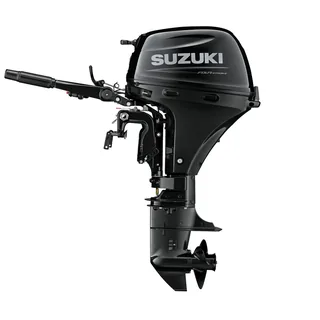

Suzuki DF15AS3 15HP Outboard Motor

The Suzuki DF15AS3 15HP Outboard Motor is a compact and reliable 4-stroke marine engine designed for fishing boats, recreational vessels, and utility applications. It delivers smooth power, excellent fuel efficiency, quiet operation, and dependable performance with Suzuki's advanced outboard technology.

Specifications:

- Engine Type: 4-Stroke SOHC, 2-Cylinder / 4 Valves
- Displacement: 327 cc (20.0 cu.in.)
- Bore & Stroke: 60.4 x 57 mm (2.38" x 2.24")
- Full Throttle RPM Range: 5,000 - 6,000 RPM
- Alternator Output: 12V, 72W, 6A (Standard circuit for manual start)
- Dry Weight Range: 97 lbs (44 kg)
- Rated Power: 15 HP
- Fuel Delivery: Battery-less Electronic Fuel Injection (EFI) with Lean Burn
- Steering Type: Tiller Handle
- Shaft Length: 15" (Short Shaft)
- Starting System: Manual Recoil
- Cooling System: Water cooled with thermostat
- Ignition System: Digital CDI
- Exhaust: Through-hub
- Lubrication System: Wet sump (trochoid oil pump)
- Oil Capacity: 1.0 L (1.06 US quart)
- Trim Range: 5-Position manual pin adjustment
- Shallow Water Drive: 2-Position settings
- Gear Ratio: 2.08:1
- Gear Shift: F-N-R (Front-mounted lever)
- Standard Propeller Type (Diameter x Pitch): 3-Blade aluminum, 9.25" x 9"
- Oil Pressure Alert: Standard
- Temperature Alert: Standard
- Rev Limiter: Standard
- Fuel Tank Capacity: 3.1 gal external (fuel line included)
