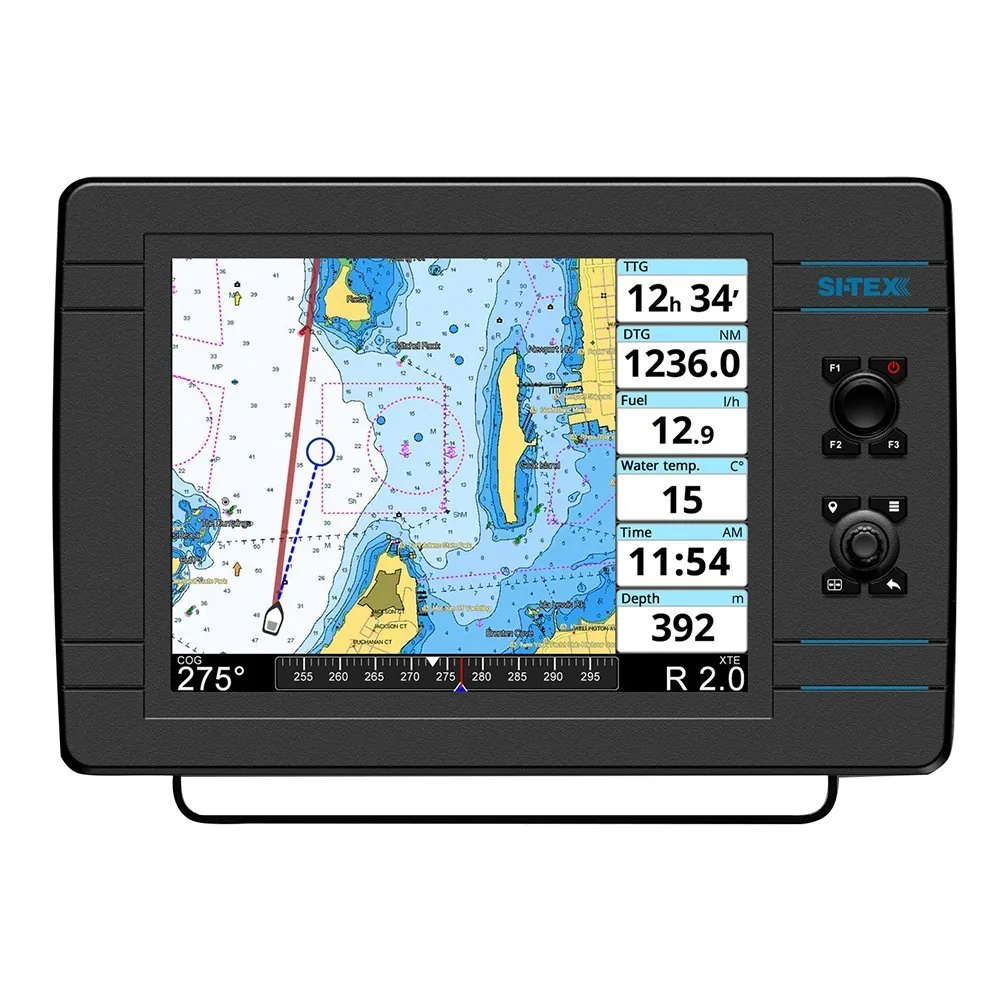

SI-TEX NavPro 1200F w/Wifi & Built-In CHIRP – Includes Internal GPS Receiver/Antenna

The SI-TEX NavPro 1200F provides a large 12.1-inch hybrid-touch display with 1280 x 800 resolution, an internal 50-channel GPS receiver, built-in CHIRP sounder up to 1kW, and dual C-MAP 4D Micro SD card slots. NMEA 2000, NMEA 0183, WiFi, and Bluetooth support a connected installation, making this unit suitable for coastal cruisers, fishing boats, and workboats with room for a larger helm display.

Key Features

- 12.1-inch hybrid-touch high-resolution display – Provides a large workspace for charts, sonar, and vessel data with touch and physical-control options.
- 1280 x 800 WXGA resolution – Shows more chart and data detail than 800 x 480 displays.
- Built-in CHIRP sounder up to 1kW – Supports high-power fishfinding when paired with a suitable transducer.
- Internal 50-channel GPS receiver and antenna – Provides onboard positioning without a separate GPS receiver listed.
- Dual C-MAP 4D Micro SD slots – Provides chart-card support and storage flexibility for compatible C-MAP data.

Who Is This For?

The NavPro 1200F suits coastal fishing boats, cruisers, workboats, and larger center consoles that have enough dash space for a 12.1-inch display. Its hybrid control layout is useful when wet hands or boat movement make touchscreen-only operation less convenient.

It is not ideal for a small helm or buyers seeking a complete transducer bundle, because the supplied specifications do not identify a transducer as included. It also requires compatible C-MAP 4D chart cards for detailed regional coverage.

Compatibility

Confirmed interfaces include NMEA 2000, NMEA 0183, WiFi, Bluetooth, the internal 50-channel GPS receiver, and dual C-MAP 4D Micro SD slots. The supplied information does not identify compatible transducer models, radar, autopilot, or third-party chartplotter systems. No named incompatible system was provided; verify SI-TEX sounder and network requirements before installation.

Technical Specifications

- Brand: SI-TEX
- Model: NavPro 1200F
- Display: 12.1-inch hybrid-touch high-resolution screen
- Resolution: 1280 x 800 WXGA
- Built-in sonar: CHIRP sounder up to 1kW
- GPS: Internal 50-channel GPS receiver and antenna
- Chart support: Dual C-MAP 4D Micro SD slots
- Networking: NMEA 2000, NMEA 0183, WiFi, Bluetooth
- Warranty: 2-year limited warranty
- Origin: Designed in the USA; made in Taiwan

Warranty & Support

SI-TEX provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The NavPro 1200F is the large-screen option here for buyers who want a hybrid-touch interface, internal GPS, and both NMEA 2000 and NMEA 0183 connections. Its dual C-MAP 4D slots provide chart flexibility, but the lack of a listed transducer means the sonar installation is not complete from the box. Choose it for a planned 12-inch system rather than a compact plug-and-play package.
