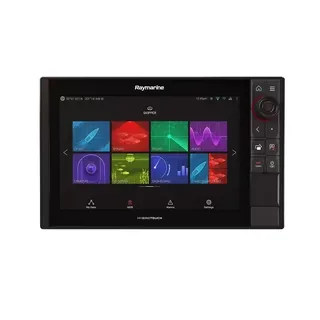

Raymarine Axiom Pro MFD – 9, 12, 16-Inch Chartplotter & Sonar

The Raymarine Axiom Pro range gives a boat owner a choice of 9-, 12.1-, and 15.6-inch chartplotter and sonar displays, all built around HybridTouch control. That means touchscreen speed when the sea is calm and physical keypad control when spray, gloves, or boat movement make tapping a screen awkward. It suits coastal fishing boats, cruisers, and offshore helms that want one Raymarine platform to grow with the boat.

The 1kW dual-channel CHIRP sounder supports 50/200kHz and High CHIRP, while RealVision 3D, SideVision, and DownScan provide structure views with compatible transducers. Built-in 10Hz GNSS helps keep position updates responsive, and LightHouse, Navionics, and C-MAP support gives charting flexibility. The 9-inch model uses 1280 x 720 resolution, while the 16-inch version reaches 1920 x 1080. Transducer selection matters because the 25-pin RealVision and 11-pin 1kW connections determine the sonar features available.

Key Features

- 9-, 12.1-, and 15.6-inch display options – Lets the owner match the MFD to the helm space.
- HybridTouch touchscreen and keypad – Provides practical control in changing weather and sea conditions.
- Dual-channel 1kW CHIRP – Supports separate high-power sonar channels.
- RealVision 3D, SideVision, and DownScan – Provides structure and imaging views with compatible transducers.
- 10Hz GNSS, NMEA 2000, Ethernet, NMEA 0183, WiFi, and Bluetooth – Supports a connected Raymarine system.

Who Is This For?

This Raymarine chartplotter and sonar range suits coastal fishing boats, cruisers, sailboats, and offshore vessels. It is not ideal to choose by screen size alone; the transducer and Axiom Pro version determine which sonar modes are available.

Compatibility

Confirmed features include Raymarine Axiom Pro displays, RealVision 3D, SideVision, DownScan, 25-pin RV transducers, 11-pin 1kW transducers, NMEA 2000, Ethernet, NMEA 0183, WiFi, and Bluetooth. The supplied information does not identify specific radar, autopilot, Garmin, Simrad, or third-party transducer compatibility. No named incompatible system was provided.

Technical Specifications

- Brand: Raymarine
- Models: Axiom Pro 9, 12.1, and 15.6 inches
- Resolution: 1280 x 720 for 9-inch; 1920 x 1080 for 16-inch
- Display: Optically bonded IPS multitouch
- Sonar: 50/200kHz, High CHIRP, dual-channel
- Output: 1kW RMS High CHIRP
- Scanning: RealVision 3D, SideVision, DownScan
- Depth: Up to 5000 feet, transducer dependent
- GPS: Built-in 10Hz GNSS
- Warranty: 3 years with registration

Warranty & Support

Raymarine provides a 3-year warranty with registration. The supplied specifications do not state warranty exclusions or service procedures.

The Axiom Pro range is the flexible Raymarine choice when the boat needs both charting and advanced sonar. The 9-inch model fits tighter helms, the 12.1-inch version balances screen space and installation, and the 15.6-inch model suits larger boats. The trade-off is the need to match the transducer and sonar ports carefully. Choose the size first, then build the sonar package around the hull.
