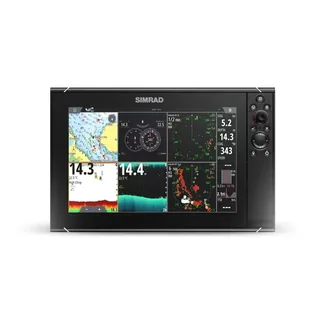

Simrad NSS9 evo3S – 9-Inch MFD Chartplotter & Fishfinder

The Simrad NSS9 evo3S is a 9-inch chartplotter and fishfinder for boats that need a compact display without giving up serious sonar and network expansion. Its SolarMAX IPS screen combines touchscreen and full keypad control, which is useful when the boat is bouncing or the operator is wearing wet gloves. It suits coastal fishing boats, cruisers, and center consoles with limited helm space.

The 1280 x 720 display supports dual-channel CHIRP from 40-250kHz, plus 455-800kHz scanning bands. Active Imaging, StructureScan 3D, SideScan, and DownScan provide more than a basic sounder, while the 10Hz high-gain GPS supports routes and waypoints. NMEA 2000, Ethernet, J1939, WiFi, and Bluetooth make it a capable network MFD. The 9-pin Xsonic connection means the transducer must be selected to match the desired sonar modes.

Key Features

- 9-inch SolarMAX IPS display – Fits compact helms while providing a useful chart and sonar workspace.
- 1280 x 720 HD resolution – Keeps chart and fishfinding pages clear.
- Dual-channel 1kW CHIRP – Supports high-power sonar operation.
- Active Imaging, StructureScan 3D, SideScan, and DownScan – Provides broad structure and imaging options.
- Touchscreen and full keypad control – Gives the operator two ways to work the unit in rough conditions.

Who Is This For?

This 9-inch Simrad chartplotter fishfinder suits coastal fishing boats, cruisers, and center consoles that need GPS, multiple sonar views, and network expansion. It is not ideal for buyers without a suitable 9-pin transducer or for a large helm that needs more screen space.

Compatibility

Confirmed features include 9-pin Xsonic transducers, Active Imaging, StructureScan 3D, SideScan, DownScan, ActiveTarget, ActiveTarget 2, LiveScope modules, NMEA 2000, Ethernet, J1939, WiFi, and Bluetooth. The supplied information does not identify specific transducer models, radar, autopilot, Garmin, or Raymarine compatibility. No named incompatible system was provided.

Technical Specifications

- Brand: Simrad
- Model: NSS9 evo3S
- Display: 9-inch SolarMAX IPS multitouch
- Resolution: 1280 x 720 pixels
- Sonar: Dual-channel 1kW CHIRP
- Frequency: 40-250kHz and 455-800kHz imaging bands
- Scanning: Active Imaging, StructureScan 3D, SideScan, DownScan
- Depth: Up to 3000 feet, transducer dependent
- GPS: Built-in 10Hz high-gain GPS
- Warranty: 2 years

Warranty & Support

Simrad provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The NSS9 evo3S is the stronger compact option when keypad control and sonar expansion matter more than a touch-only display. It offers broader sonar features than the Axiom+ 12 RV, but with a smaller screen. The trade-off is the need to choose a compatible 9-pin transducer and network layout. Choose it for a compact but serious fishing helm.
