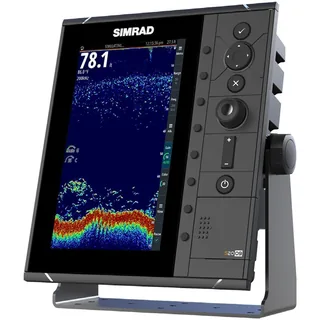

Simrad S2009 9 Fishfinder w/Broadband Sounder Module & CHIRP Technology

The Simrad S2009 is a dedicated 9-inch portrait fishfinder for anglers and commercial operators who want a clear vertical view of the water column. Its Broadband Sounder and CHIRP technology cover a wide frequency range, while the 1kW RMS output gives the system the power needed for serious depth work. It is a sounder display, not a chartplotter or GPS navigation unit.

The 480 x 800 portrait screen is useful when the operator wants to see the bottom, bait, and fish returns stacked vertically. CHIRP covers 28-210kHz, while broadband choices include 28, 38, 50, 83, and 200kHz. Vertical heave compensation helps keep the sonar picture steadier in a moving sea. The eight direct-access keys are practical when the helm is wet or gloves make touchscreen menus inconvenient. A compatible transducer is required.

Key Features

- 9-inch portrait LCD – Gives the sounder a tall view of the water column and bottom.
- Broadband Sounder and CHIRP – Provides several frequency options for different depths and targets.
- 1kW RMS output – Supports serious conventional fishfinding with a suitable transducer.
- 28-210kHz CHIRP range – Gives broad frequency flexibility for the installation.
- Vertical heave compensation and eight direct-access keys – Helps maintain a usable sonar image and quick control in moving water.

Who Is This For?

This 1kW CHIRP fishfinder suits commercial fishing boats, charter vessels, offshore anglers, and workboats that need a dedicated vertical sounder. It is not ideal for buyers seeking charts, GPS, SideScan, or an included transducer; this is a professional sounder display.

Compatibility

Confirmed features include Broadband Sounder, CHIRP, vertical heave compensation, eight direct-access keys, and a compatible transducer connection. The supplied information does not identify specific transducers, NMEA 2000, NMEA 0183, radar, autopilot, or chartplotter compatibility. No named incompatible system was provided; verify the transducer and power requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: S2009, 000-12185-001
- Display: 9-inch LED-backlit portrait LCD
- Resolution: 480 x 800 pixels
- Sonar: Broadband Sounder and CHIRP
- Output: 1kW RMS
- Frequency: CHIRP 28-210kHz; broadband 28/38/50/83/200kHz
- Controls: Eight direct-access keys and vertical heave compensation
- Transducer: Not listed as included
- Warranty: 2-year limited warranty

Warranty & Support

Simrad provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The S2009 is the sounder-first choice here, offering more output and frequency control than compact recreational fishfinders. Its trade-off is the absence of charts, GPS, and a bundled transducer. Choose it for serious conventional sonar and a portrait water-column view, not as a general-purpose marine MFD.
