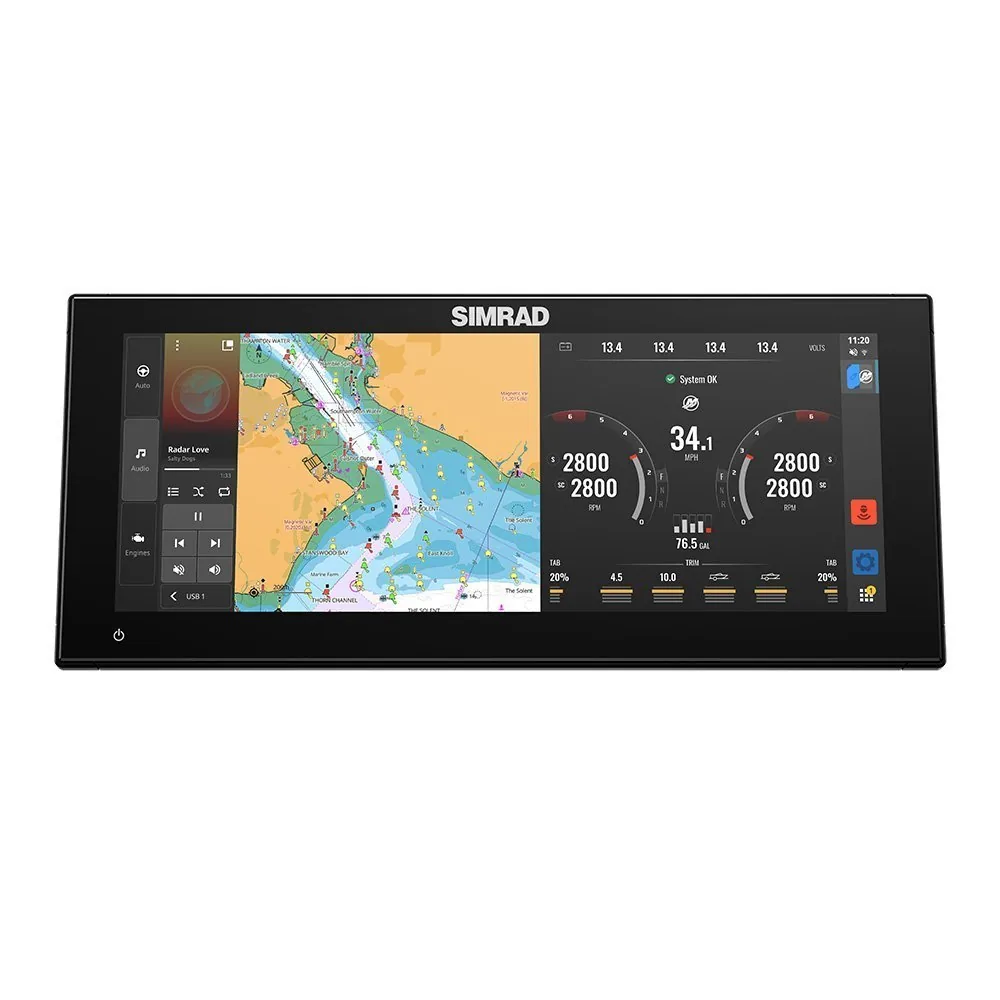

Simrad NSX 3012UW Combo w/Active Imaging 3-in-1 Transducer

The Simrad NSX 3012UW combines a 12-inch SolarMAX IPS touchscreen with C-MAP Reveal X North America charts and an included Active Imaging 3-in-1 transducer. CHIRP, SideScan, and DownScan provide multiple sonar views, while the NEON Android-based operating system and NMEA 2000, Ethernet, WiFi, and Bluetooth connections support a connected fishing-boat installation.

Key Features

- 12-inch SolarMAX IPS touchscreen – Provides a large chart and sonar workspace for split-screen operation.
- 1280 x 800 resolution – Shows useful detail across charts, sonar, and system information.
- Active Imaging 3-in-1 transducer included – Provides CHIRP, SideScan, and DownScan sonar.
- C-MAP Reveal X North America charts – Provides preloaded chart coverage for supported North American waters.
- NMEA 2000, Ethernet, WiFi, and Bluetooth – Provides confirmed wired and wireless connections for system expansion.

Who Is This For?

This unit suits offshore fishing boats, larger center consoles, coastal cruisers, and multi-display helms that need a 12-inch screen with the transducer included. The Active Imaging 3-in-1 package makes it suitable for a new sonar installation.

It is not ideal for a small console where the 12-inch display would crowd other instruments. Buyers who need integrated radar should also verify the radar hardware and network requirements separately.

Compatibility

Confirmed components include the Active Imaging 3-in-1 transducer, C-MAP Reveal X North America charts, NMEA 2000, Ethernet, WiFi, Bluetooth, CHIRP, SideScan, and DownScan. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party transducer compatibility. No named incompatible system was provided; verify Simrad accessory and network requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSX 3012UW, 000-15371-001
- Display: 12-inch SolarMAX IPS touchscreen
- Resolution: 1280 x 800 pixels
- Preloaded charts: C-MAP Reveal X North America
- Transducer: Active Imaging 3-in-1 with CHIRP, SideScan, DownScan
- Operating system: NEON, Android based
- Networking: NMEA 2000, Ethernet, WiFi, Bluetooth
- Warranty: 2-year standard warranty
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The NSX 3012UW is the complete 12-inch fishing package in this group, combining a large display, North American C-MAP Reveal X charts, and an Active Imaging 3-in-1 transducer. It provides more sonar coverage than a basic CHIRP package and more screen room than 7- or 9-inch units. The trade-off is installation size, so it suits a larger helm rather than a compact fishing boat.
