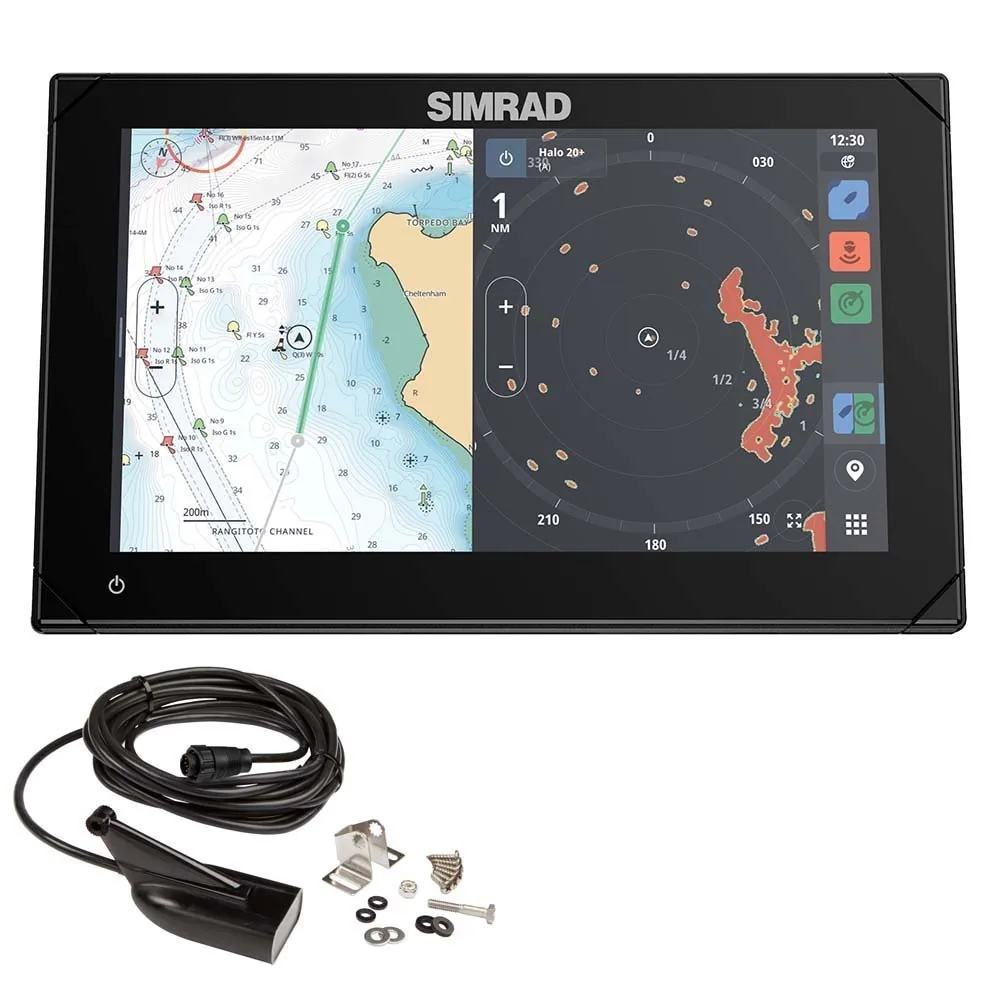

Simrad NSX 3009 9 Combo Chartplotter & Fishfinder w/HDI Transducer

The Simrad NSX 3009 bundle combines a 9-inch SolarMAX IPS touchscreen with C-MAP Discover X North America charts and an included HDI transducer. The HDI unit supports 83/200kHz traditional sonar and DownScan, while the NEON Android-based operating system, NMEA 2000, Ethernet, WiFi, and Bluetooth provide a capable platform for a coastal fishing boat or small cruiser.

Key Features

- 9-inch SolarMAX IPS touchscreen – Provides a practical chart and sonar workspace in a compact helm size.
- 1024 x 600 resolution – Shows useful mapping and fishfinding detail in a mid-size display.
- HDI transducer included – Provides 83/200kHz traditional sonar and DownScan from the supplied transducer.
- C-MAP Discover X North America charts – Provides preloaded chart coverage for supported North American waters.
- NMEA 2000, one Ethernet, WiFi, and Bluetooth – Provides confirmed connection options for a connected Simrad installation.

Who Is This For?

This bundle suits coastal fishing boats, bay boats, center consoles, and small cruisers that need a 9-inch display with the transducer included. The HDI package is useful for buyers who want conventional sonar and DownScan without selecting a separate transducer.

It is not ideal for buyers who specifically need SideScan, because the supplied HDI specification lists traditional 83/200kHz sonar and DownScan. A larger display is also better for a helm that regularly uses several split-screen panels.

Compatibility

Confirmed components include the HDI 83/200kHz traditional and DownScan transducer, C-MAP Discover X North America charts, NMEA 2000, one Ethernet port, WiFi, Bluetooth, and the NEON operating system. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party transducer compatibility. No named incompatible system was provided; verify Simrad sonar and network requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSX 3009, 000-15368-005
- Display: 9-inch SolarMAX IPS touchscreen
- Resolution: 1024 x 600 pixels
- Operating system: NEON, Android based
- Transducer: HDI with 83/200kHz traditional sonar and DownScan
- Preloaded charts: C-MAP Discover X North America
- Networking: NMEA 2000, one Ethernet, WiFi, Bluetooth
- Warranty: 2-year standard warranty
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The NSX 3009 HDI bundle is the practical choice over the display-only NSX 3009 when you want the transducer included for conventional sonar and DownScan. Its 9-inch screen provides more room than the NSX 3007, while the 1024 x 600 resolution keeps the display detailed enough for everyday fishing. The trade-off is narrower sonar coverage than an Active Imaging 3-in-1 bundle, which adds SideScan.
