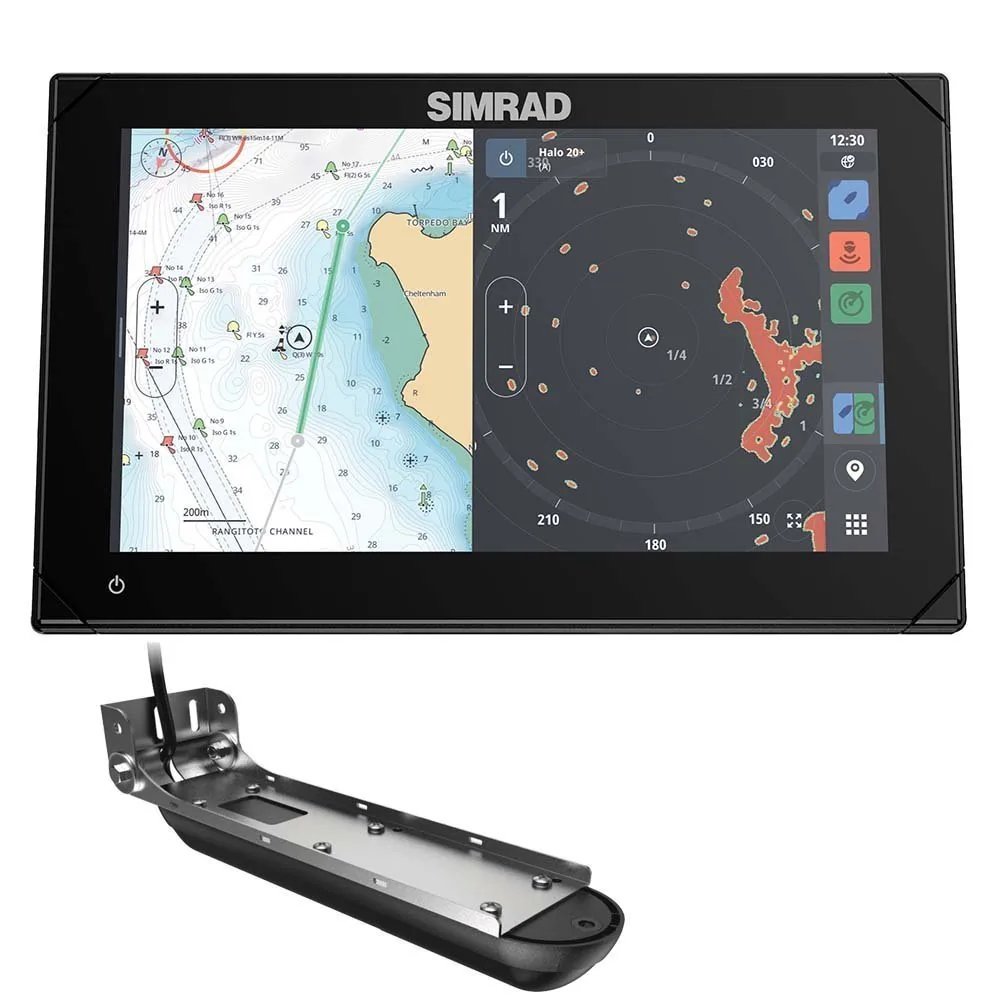

Simrad NSX 3009 9 Combo Chartplotter & Fishfinder w/Active Imaging 3-in-1 Transducer

The Simrad NSX 3009 bundle provides a 9-inch SolarMAX IPS touchscreen, C-MAP Discover X North America charts, and an included Active Imaging 3-in-1 transducer. High-Wide CHIRP, SideScan, and DownScan provide a broader view of the water and bottom than a basic CHIRP package. The full touchscreen and setup wizard make this a practical chartplotter/fishfinder for coastal fishing boats and mid-size helms.

Key Features

- 9-inch SolarMAX IPS touchscreen – Provides more chart and sonar viewing area than a 7-inch display.
- 1024 x 600 WSVGA resolution – Shows useful detail across the larger screen while keeping the unit compact.
- Active Imaging 3-in-1 transducer included – Provides High-Wide CHIRP, SideScan, and DownScan from the supplied transducer.
- C-MAP Discover X North America charts – Provides preloaded chart coverage for supported North American waters.
- Full touchscreen with setup wizard – Provides touch operation and guided initial configuration.

Who Is This For?

This bundle suits coastal fishing boats, bay boats, center consoles, and cruisers that need more display space and broader imaging than a 7-inch HDI package. The included 3-in-1 transducer makes it suitable for a new installation.

It is not ideal for a small console where a 9-inch display would crowd other equipment. Buyers who prefer physical keypad controls should also consider a Simrad model with HybridTouch or keypad operation.

Compatibility

Confirmed components include the Active Imaging 3-in-1 transducer, C-MAP Discover X North America charts, High-Wide CHIRP, SideScan, DownScan, and full touchscreen operation. The supplied information does not identify NMEA 2000, NMEA 0183, Ethernet, WiFi, Bluetooth, radar, or autopilot compatibility for this listing. No named incompatible system was provided; verify Simrad network and accessory requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSX 3009, 000-15368-001
- Display: 9-inch SolarMAX IPS touchscreen
- Resolution: 1024 x 600 WSVGA
- Transducer: Active Imaging 3-in-1 with CHIRP, SideScan, DownScan
- Sonar support: High-Wide CHIRP, SideScan, DownScan
- Preloaded charts: C-MAP Discover X North America
- Interface: Full touchscreen with setup wizard
- Warranty: 2-year standard warranty plus 5-year upgrade support
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty with 5-year upgrade support as listed in the supplied specifications. No warranty exclusions or upgrade conditions were provided.

The NSX 3009 is the larger and more capable sonar bundle compared with the NSX 3007 HDI version. Its 9-inch screen gives more room for charts and split-screen views, while the Active Imaging 3-in-1 transducer adds SideScan to High-Wide CHIRP and DownScan. The trade-off is the larger installation footprint, so it suits a mid-size helm better than a compact skiff.
