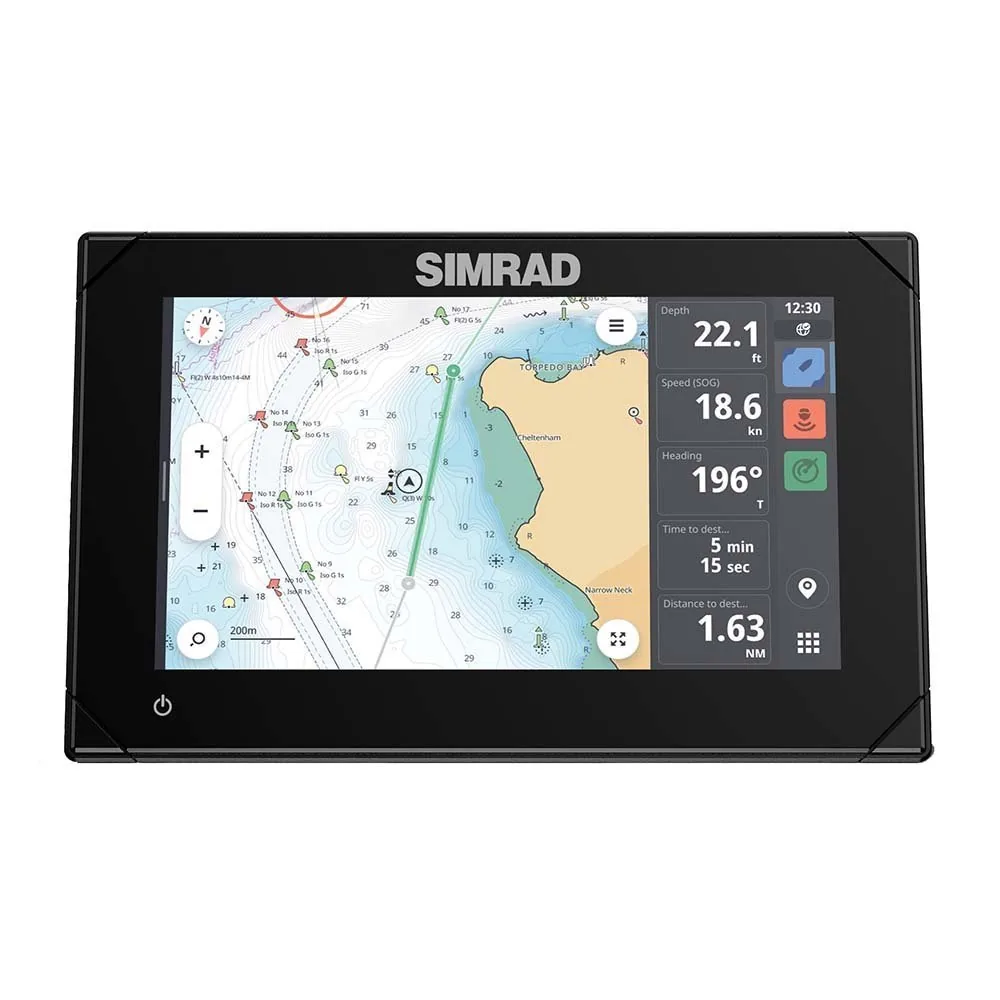

Simrad NSX 3007 7 Combo Chartplotter & Fishfinder – Display Only – No Transducer

The Simrad NSX 3007 display-only package suits anglers and boat owners who want a 7-inch multifunction display without receiving another transducer. Its SolarMAX IPS touchscreen, 1024 x 600 resolution, NEON operating system, and C-MAP Discover X North America charts provide a modern chartplotter platform, while High-Wide CHIRP, SideScan, and DownScan require a compatible transducer.

Key Features

- 7-inch SolarMAX IPS touchscreen – Provides a bright, compact display for charts and sonar.
- 1024 x 600 WSVGA resolution – Shows more detail than 800 x 480 displays in the same size class.
- NEON Android-based operating system – Provides the software platform used to control the NSX multifunction display.
- High-Wide CHIRP, SideScan, and DownScan sonar – Supports several sonar views when paired with the correct transducer.
- C-MAP Discover X North America charts – Provides preloaded chart coverage for supported North American waters.

Who Is This For?

This model suits small center consoles, bay boats, fishing boats, and owners replacing a display in an existing Simrad installation. It is useful when the transducer is already installed or will be selected separately.

It is not ideal for buyers who need a complete fishfinder bundle because no transducer is included. A 12-inch display is a better choice for a large helm that needs comfortable split-screen viewing.

Compatibility

The supplied information confirms C-MAP Discover X North America charts and built-in High-Wide CHIRP, SideScan, and DownScan sonar support. It does not identify a specific compatible transducer, NMEA 2000 network, radar, autopilot, or NMEA 0183 system. No named incompatible system was provided; verify Simrad transducer and network requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSX 3007, 000-15365-001
- Display: 7-inch SolarMAX IPS touchscreen
- Resolution: 1024 x 600 WSVGA
- Operating system: NEON, Android based
- Built-in sonar: High-Wide CHIRP, SideScan, DownScan
- Transducer: Not included
- Preloaded charts: C-MAP Discover X North America
- Warranty: 2-year standard warranty plus 5-year upgrade support
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty with 5-year upgrade support as listed in the supplied specifications. No warranty exclusions or upgrade conditions were provided.

This NSX 3007 is the display-only alternative to the bundled NSX 3007 with Active Imaging 3-in-1 transducer. It gives you the same 7-inch 1024 x 600 display platform and North American C-MAP chart package, but leaves the transducer choice open. Choose it for an existing or planned Simrad installation; choose the bundled version if you want the transducer included from the start.
