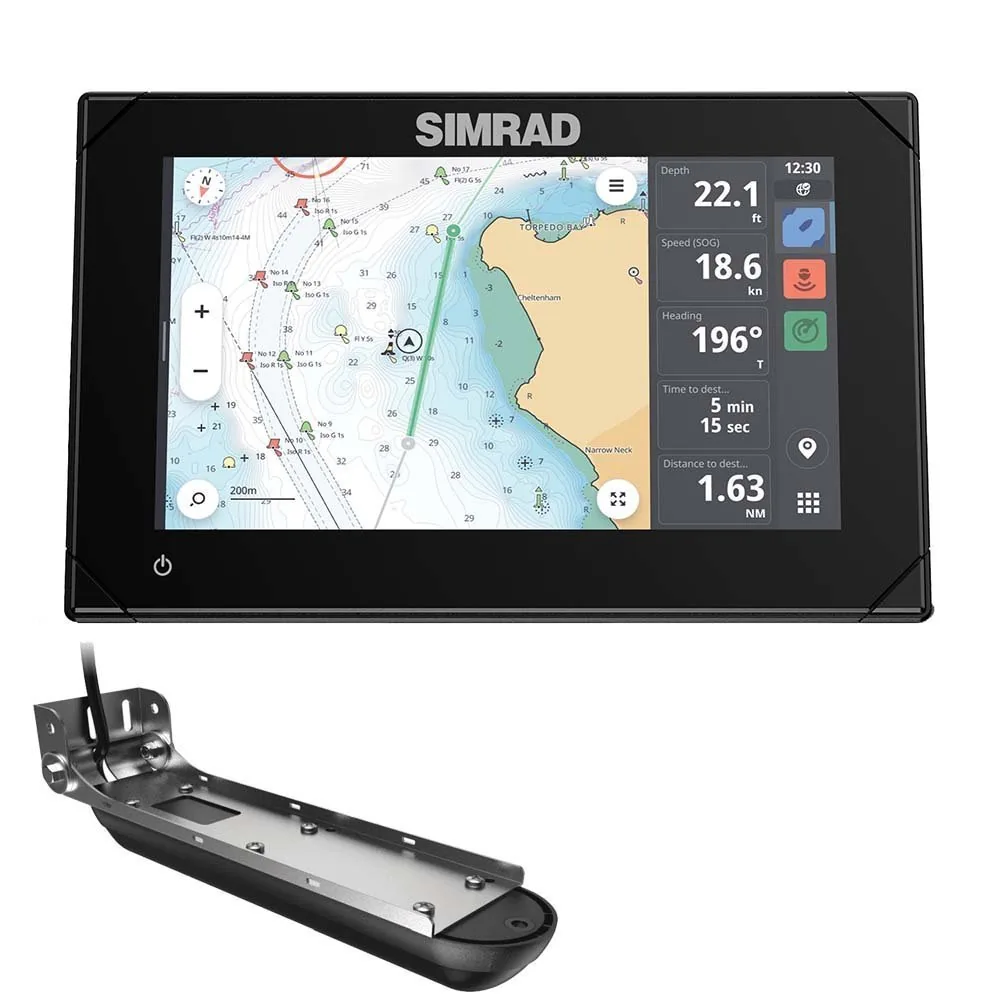

Simrad NSX 3007 7 Combo Chartplotter & Fishfinder w/Active Imaging 3-in-1 Transducer

The Simrad NSX 3007 is a compact chartplotter and fishfinder bundle for smaller boats that still need touch control and side-looking sonar. Its 7-inch SolarMAX IPS screen uses a 1024 x 600 resolution, while the included Active Imaging 3-in-1 transducer provides CHIRP, SideScan, and DownScan. C-MAP Discover X North America charts are preloaded, and the NEON operating system provides the Simrad platform in a smaller installation.

Key Features

- 7-inch SolarMAX IPS touchscreen – Fits compact consoles while providing a bright display for charts and sonar.
- 1024 x 600 WSVGA resolution – Shows more detail than 800 x 480 screens in the same size class.
- Active Imaging 3-in-1 transducer included – Adds CHIRP, SideScan, and DownScan without requiring a separate transducer purchase.
- NEON Android-based operating system – Provides the software platform used to control the NSX multifunction display.
- IPX6/IPX7 rating – Provides protection against powerful water jets and temporary immersion under the stated ratings.

Who Is This For?

This bundle suits bay boats, small center consoles, aluminum fishing boats, and trailerable coastal craft that need charting and multiple sonar views in a 7-inch display. The included transducer reduces the number of separate components needed for installation.

It is not the best fit for a large offshore helm where a 12-inch display would be easier to read, or for a buyer who already owns a different sonar transducer that they intend to reuse. The supplied specifications do not confirm compatibility with third-party transducers.

Compatibility

Confirmed components include the Simrad Active Imaging 3-in-1 transducer, C-MAP Discover X North America charts, NEON operating system, and IPX6/IPX7 protection rating. The supplied information does not identify NMEA 0183, NMEA 2000, autopilot, radar, or third-party chartplotter compatibility. No named incompatible system was provided; verify network and accessory requirements before expanding the installation.

Technical Specifications

- Brand: Simrad
- Model: NSX 3007, 000-15365-001
- Display: 7-inch SolarMAX IPS touchscreen
- Resolution: 1024 x 600 WSVGA
- Transducer: Active Imaging 3-in-1 with CHIRP, SideScan, DownScan
- Operating system: NEON, Android based
- Preloaded charts: C-MAP Discover X North America
- Water rating: IPX6 / IPX7
- Warranty: 2-year standard warranty plus 5-year upgrade support
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty with 5-year upgrade support as listed in the supplied specifications. No warranty exclusions or upgrade conditions were provided.

The NSX 3007 gives you the core advantages of the NSX platform in a smaller package than the 12-inch NSX 3012. It includes the same type of Active Imaging 3-in-1 transducer and North American C-MAP Discover X charts, but its 7-inch 1024 x 600 screen is easier to install on a compact boat. Choose it for a complete small-boat bundle; choose the NSX 3012 if screen size matters more than console space.
