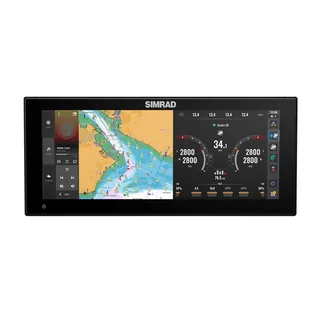

The Simrad NSX 3015UW display-only package provides a 15-inch SolarMAX IPS ultrawide Full HD touchscreen with C-MAP Discover X North America charts, 1kW CHIRP, and SideScan/DownScan readiness. No transducer is included, so it suits large fishing boats, cruisers, and multi-display helms where sonar hardware will be selected separately. Its ultrawide 1920 x 1080 layout is designed for charts and system information across a large screen.

Key Features

- 15-inch SolarMAX IPS ultrawide touchscreen – Provides a broad workspace for charts, sonar, and split-screen system information.
- 1920 x 1080 Full HD resolution – Shows detailed mapping and navigation information across the large display.
- 1kW CHIRP support – Provides a high-power fishfinding platform when paired with suitable sonar hardware.
- SideScan and DownScan ready – Allows expansion with compatible imaging transducers.
- C-MAP Discover X North America charts – Provides preloaded chart coverage for supported North American waters.

Who Is This For?

This unit suits offshore fishing boats, larger center consoles, cruisers, and multi-display helms with enough dash width for a 15-inch ultrawide display. The large Full HD workspace is useful when charts and system information must remain visible together.

It is not ideal for a compact console or buyers seeking a complete fishfinder package. No transducer is included, and the ultrawide format requires careful mounting measurements.

Compatibility

Confirmed features include C-MAP Discover X North America charts, 1kW CHIRP, SideScan and DownScan readiness, and the SolarMAX IPS ultrawide display. The supplied information does not identify NMEA 2000, NMEA 0183, Ethernet, WiFi, Bluetooth, radar, autopilot, or specific transducer compatibility. No named incompatible system was provided; verify Simrad network and sonar requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSX 3015UW, 000-16216-001
- Display: 15-inch SolarMAX IPS ultrawide touchscreen
- Resolution: 1920 x 1080 Full HD
- Preloaded charts: C-MAP Discover X North America
- Sonar support: 1kW CHIRP, SideScan/DownScan ready
- Transducer: Not included
- Warranty: 2-year standard warranty
- Origin: Made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The NSX 3015UW is the large ultrawide alternative to the 12-inch NSX 3012UW, providing Full HD resolution and more space for charts and system data. Both list C-MAP Discover X charts and leave the transducer separate, but the 3015UW needs substantially more helm width. Choose it for a large vessel where screen area matters more than compact installation.
