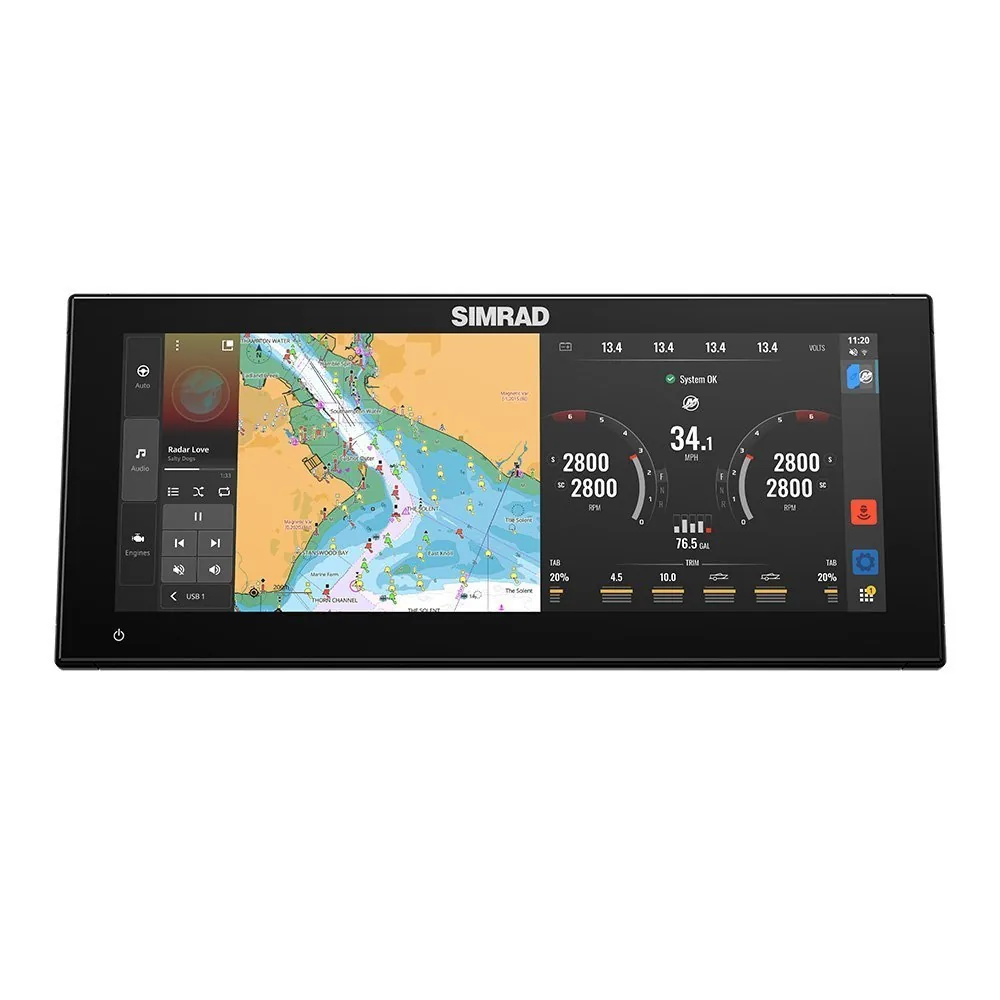

Simrad NSX 3015UW Combo w/Active Imaging 3-in-1 Transducer

The Simrad NSX 3015UW combines a 15-inch SolarMAX IPS touchscreen with Full HD 1920 x 1080 resolution, C-MAP Reveal X North America charts, and an included Active Imaging 3-in-1 transducer. CHIRP, SideScan, and DownScan sonar are built into the bundle, while NMEA 2000, Ethernet, WiFi, and Bluetooth support a connected installation on a large fishing boat or cruiser.

Key Features

- 15-inch SolarMAX IPS touchscreen – Provides a large workspace for charts, sonar, and split-screen information.
- 1920 x 1080 Full HD resolution – Shows detailed mapping and sonar information across the large display.
- Active Imaging 3-in-1 transducer included – Provides CHIRP, SideScan, and DownScan sonar.
- C-MAP Reveal X North America charts – Provides preloaded chart coverage for supported North American waters.
- NMEA 2000, Ethernet, WiFi, and Bluetooth – Provides wired and wireless connection options for a connected system.

Who Is This For?

This unit suits offshore fishing boats, larger center consoles, coastal cruisers, and multi-display helms where a 15-inch screen can be viewed comfortably. The included transducer and regional charts make it suitable for a new installation.

It is not ideal for a compact boat or a helm with limited mounting space. Buyers who need radar should also confirm separate radar hardware and network requirements, because radar is not listed in the supplied specifications.

Compatibility

Confirmed components include the Active Imaging 3-in-1 transducer, C-MAP Reveal X North America charts, NMEA 2000, one Ethernet connection, WiFi, Bluetooth, CHIRP, SideScan, and DownScan. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party transducer compatibility. No named incompatible system was provided; verify Simrad network and accessory requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSX 3015UW, 000-15374-001
- Display: 15-inch SolarMAX IPS touchscreen
- Resolution: 1920 x 1080 Full HD
- Operating system: NEON, Android based
- Transducer: Active Imaging 3-in-1 with CHIRP, SideScan, DownScan
- Preloaded charts: C-MAP Reveal X North America
- Networking: NMEA 2000, one Ethernet, WiFi, Bluetooth
- Warranty: 2-year standard warranty
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The NSX 3015UW is the large-screen alternative to the 12-inch NSX 3012UW, offering Full HD resolution and more physical workspace for charts and sonar. Both include an Active Imaging 3-in-1 transducer and North American C-MAP coverage, but the 3015UW requires considerably more helm space. Choose it for a larger vessel where display size matters more than compact installation.
