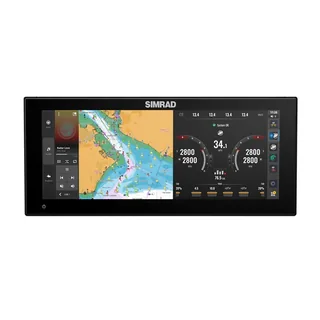

The Simrad NSX 3012UW display-only package provides a 12-inch SolarMAX IPS ultrawide touchscreen with 1920 x 720 resolution, C-MAP Discover X North America charts, and built-in single-channel 1kW CHIRP. No transducer is included, but SideScan and DownScan readiness, NMEA 2000, Ethernet, WiFi, and Bluetooth provide a flexible base for a planned Simrad installation.

Key Features

- 12-inch SolarMAX IPS ultrawide touchscreen – Provides a wide workspace for charts, sonar, and split-screen information.
- 1920 x 720 ultrawide HD resolution – Uses the wide display format to show navigation and system data across the screen.
- 1kW single-channel CHIRP – Supports high-power conventional fishfinding when paired with a suitable transducer.
- SideScan and DownScan ready – Allows expansion with compatible sonar hardware.
- NMEA 2000, Ethernet, WiFi, and Bluetooth – Provides wired and wireless connection options for a connected system.

Who Is This For?

This unit suits coastal fishing boats, offshore center consoles, cruisers, and helms that benefit from an ultrawide 12-inch display. Its charted North American package and network connections make it useful as a central MFD in a planned Simrad installation.

It is not ideal for buyers who need a complete fishfinder package because the transducer is not included. It also requires more dash width than a conventional 12-inch display because of the ultrawide format.

Compatibility

Confirmed features include C-MAP Discover X North America charts, single-channel 1kW CHIRP, SideScan and DownScan readiness, NMEA 2000, Ethernet, WiFi, and Bluetooth. The supplied information does not identify specific transducer models, NMEA 0183, radar, autopilot, or third-party accessory compatibility. No named incompatible system was provided; verify Simrad sonar and network requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSX 3012UW, 000-16215-001
- Display: 12-inch SolarMAX IPS ultrawide touchscreen
- Resolution: 1920 x 720 ultrawide HD
- Built-in sonar: 1kW single-channel CHIRP
- Sonar readiness: SideScan and DownScan
- Transducer: Not included
- Preloaded charts: C-MAP Discover X North America
- Networking: NMEA 2000, Ethernet, WiFi, Bluetooth
- Warranty: 2-year standard warranty

Warranty & Support

Simrad provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The NSX 3012UW is the ultrawide alternative to a conventional 12-inch MFD, giving the helm a broader 1920 x 720 layout for charts and system data. It includes North American C-MAP charts and a 1kW CHIRP platform, but leaves the transducer open for separate selection. Choose it for a custom Simrad installation where screen width matters more than an included sonar bundle.
