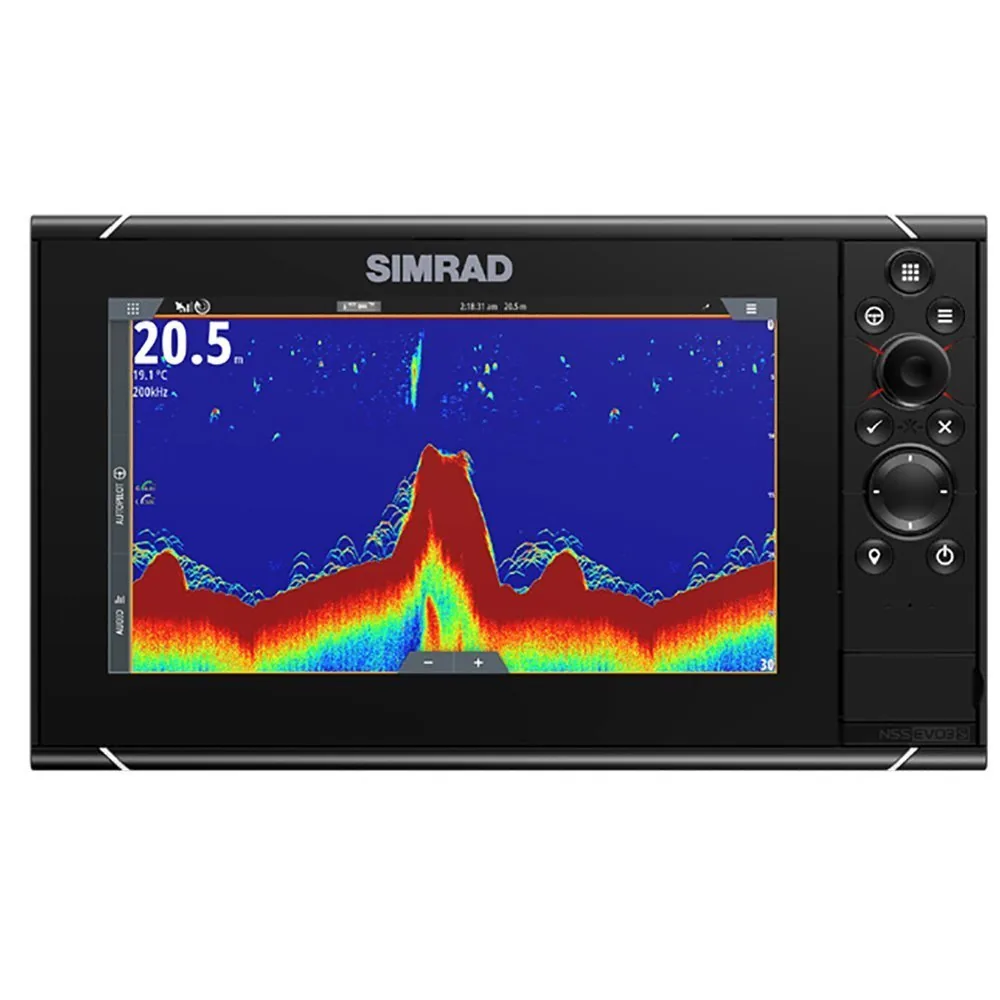

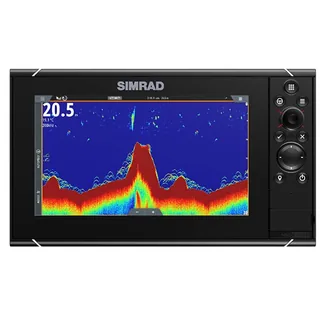

The Simrad NSS9 evo3S combines a 9-inch SolarMAX IPS HybridTouch display with a 1280 x 720 resolution, iMX 8 quad-core processor, 1kW dual-channel CHIRP, Active Imaging, and ForwardScan. No transducer is included, but two Ethernet ports, NMEA 2000, J1939, WiFi, and Bluetooth support a connected marine electronics installation. HybridTouch provides both touchscreen and physical control options.

Key Features

- 9-inch SolarMAX IPS HybridTouch display – Provides a clear chart and sonar workspace with both touch and physical-control operation.
- 1280 x 720 HD resolution – Shows sharper chart and system detail than 800 x 480 displays.
- iMX 8 high-performance quad-core processor – Provides the processing platform for the NSS9 evo3S system.
- 1kW dual-channel CHIRP, Active Imaging, and ForwardScan – Supports conventional, structure, and forward-looking sonar with suitable hardware.
- Two Ethernet, NMEA 2000, J1939, WiFi, and Bluetooth – Provides confirmed options for networking, engine data, and wireless connections.

Who Is This For?

This unit suits coastal fishing boats, cruisers, larger center consoles, and owners who want a 9-inch display with broader networking than a compact NSX model. Physical controls are useful when spray, gloves, or boat movement make touchscreen-only operation less convenient.

It is not ideal for a small helm that needs a simple standalone unit, and no transducer is included. A 12-inch model is better when several information panels must remain visible at once.

Compatibility

Confirmed interfaces include two Ethernet ports, NMEA 2000, J1939, WiFi, Bluetooth, HybridTouch control, 1kW dual-channel CHIRP, Active Imaging, and ForwardScan. The supplied information does not identify specific compatible transducers, NMEA 0183, radar, autopilot, or third-party chartplotter systems. No named incompatible system was provided; verify Simrad network and sonar requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSS9 evo3S, 000-15402-001
- Display: 9-inch SolarMAX IPS HybridTouch
- Resolution: 1280 x 720 HD
- Built-in sonar: 1kW dual-channel CHIRP, Active Imaging, ForwardScan
- Transducer: Not included
- Processor: iMX 8 high-performance quad-core
- Networking: Two Ethernet, NMEA 2000, J1939, WiFi, Bluetooth
- Warranty: 2-year standard warranty plus 5-year upgrade support
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty with 5-year upgrade support as listed in the supplied specifications. No warranty exclusions or upgrade conditions were provided.

The NSS9 evo3S is the more network-focused 9-inch choice in this group, with HybridTouch, an iMX 8 processor, dual Ethernet, J1939, and broader listed sonar functions. It offers more physical control and system connectivity than the NSX 3009 touchscreen. The trade-off is that it is a display-only package with no transducer, so it suits a planned Simrad installation rather than a complete starter bundle.
