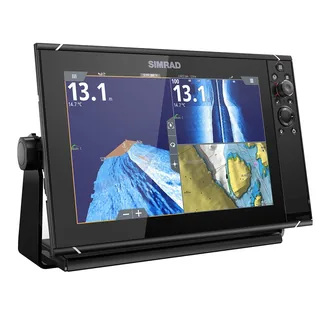

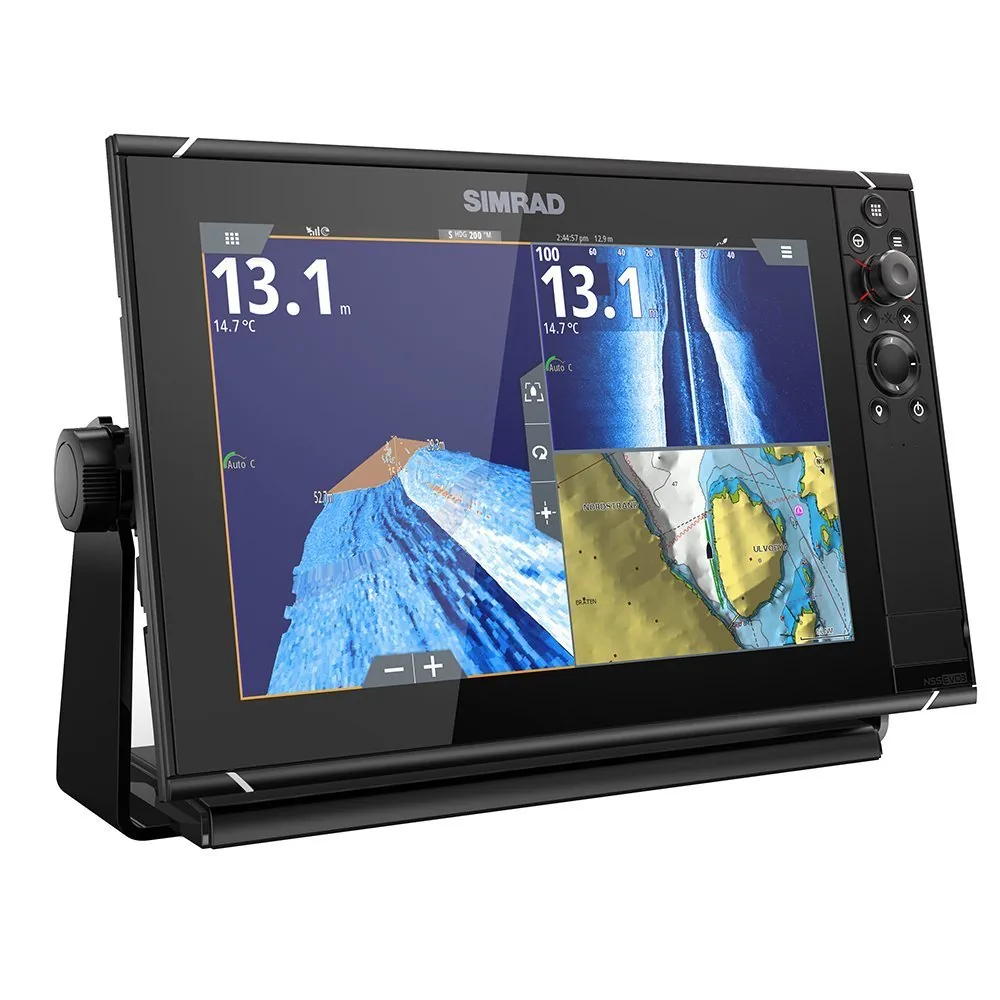

Simrad NSS7 evo3 Chartplotter/Fishfinder with Insight Charts

The Simrad NSS7 evo3 combines a 7-inch SolarMAX HD touchscreen with keypad and rotary control, Insight Charts, dual-channel CHIRP, StructureScan HD, and ForwardScan. Its NMEA 2000, NMEA 0183, Ethernet, and WiFi connections suit a connected coastal fishing or cruising installation. The mixed control layout is useful on a moving boat, where physical controls can be easier to operate than touch alone.

Key Features

- 7-inch SolarMAX HD touchscreen – Provides a bright display for charts and sonar in a compact helm.
- 1024 x 600 resolution – Gives sharper detail than 800 x 480 displays.
- Touchscreen, keypad, and rotary dial – Lets you choose touch or physical control depending on weather, gloves, and boat movement.
- Dual-channel CHIRP, StructureScan HD, and ForwardScan – Supports conventional fishfinding, structure imaging, and forward-looking sonar with suitable hardware.
- NMEA 2000, NMEA 0183, Ethernet, and WiFi – Provides confirmed options for connecting marine electronics and sharing data.

Who Is This For?

The NSS7 evo3 suits coastal fishing boats, small cruisers, and operators who want a 7-inch display with both touch and physical controls. Its networking options make it more suitable for a connected installation than a basic standalone fishfinder.

It is not the best fit for a helm that needs a large 10- or 12-inch screen for constant split-screen use. The supplied specifications also do not identify a transducer as included.

Compatibility

Confirmed compatibility includes Insight Charts, NMEA 2000, NMEA 0183, one Ethernet port, and WiFi. The supplied information does not identify specific compatible transducer models, autopilots, radar systems, or third-party chartplotters. No named incompatible system was provided; verify the sonar and network requirements before connecting existing equipment.

Technical Specifications

- Brand: Simrad
- Model: NSS7 evo3, 000-13237-001
- Display: 7-inch SolarMAX HD touchscreen
- Resolution: 1024 x 600 pixels
- Interface: Touchscreen, keypad, and rotary dial
- Built-in sonar: Dual-channel CHIRP, StructureScan HD, ForwardScan
- Preloaded charts: Insight Charts
- Networking: NMEA 2000, NMEA 0183, one Ethernet port, WiFi
- Warranty: 2-year standard warranty plus 5-year upgrade support
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty with 5-year upgrade support as listed in the supplied specifications. No warranty exclusions or upgrade conditions were provided.

The NSS7 evo3 stands apart from simpler 7-inch units through its combination of touchscreen, keypad, and rotary control, plus NMEA 0183 and Ethernet connectivity. It is a sensible choice for a boat owner who wants a compact display with broader networking and multiple sonar options. The trade-off is that the supplied package details do not include a transducer, so sonar installation requires separate hardware selection.
