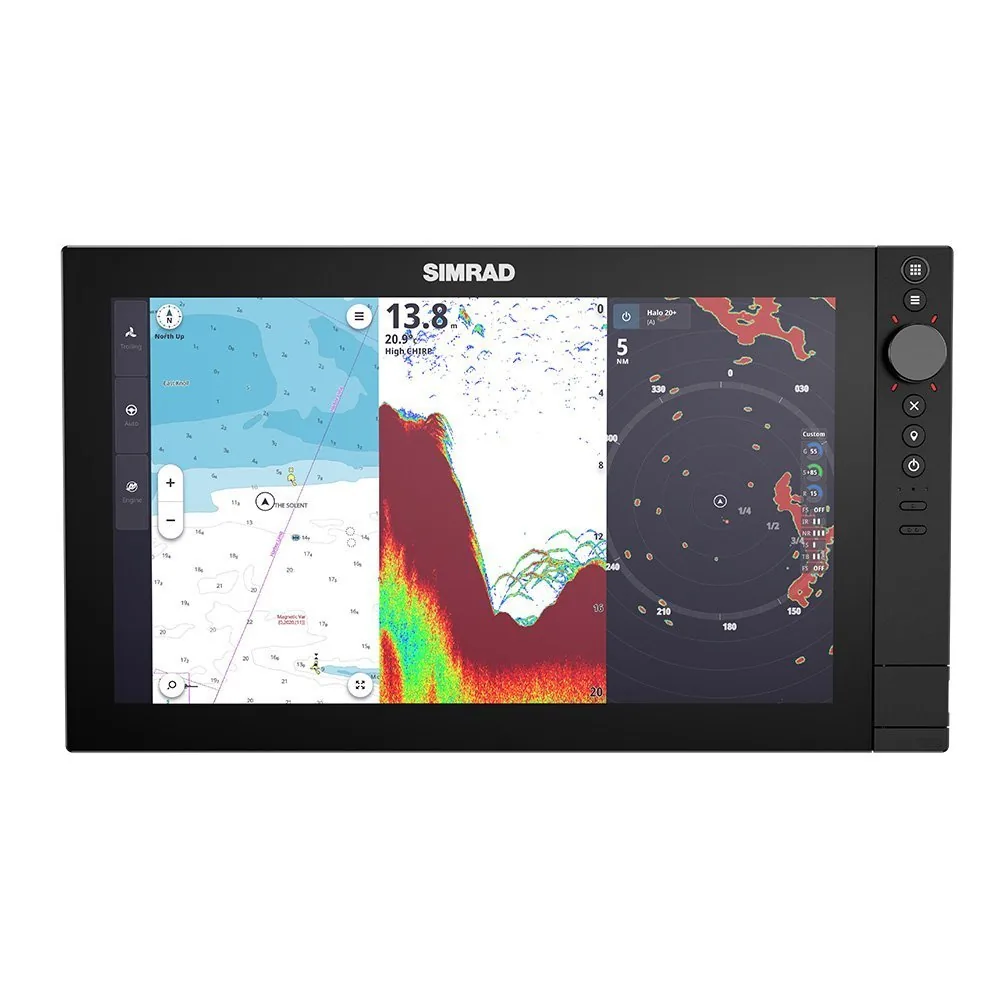

The Simrad NSS 4-16 provides a 16-inch SolarMAX IPS touchscreen with hybrid control, Full HD 1920 x 1080 resolution, a Qualcomm 8-core processor, built-in dual-channel 1kW CHIRP, and Active Imaging HD support. C-MAP Discover X North America charts are preloaded, but no transducer is included. This large multifunction display suits offshore fishing boats, cruisers, and commercial-style helms.

Key Features

- 16-inch SolarMAX IPS touchscreen with hybrid control – Provides a large workspace with touch and physical operation options.
- 1920 x 1080 Full HD resolution – Shows detailed charts, sonar, and system data across the large display.
- Qualcomm 8-core processor – Provides the stated high-performance processing platform.
- Dual-channel 1kW CHIRP and Active Imaging HD support – Supports high-power and scanning sonar with suitable hardware.
- C-MAP Discover X North America charts – Provides preloaded chart coverage for supported North American waters.

Who Is This For?

This unit suits offshore fishing vessels, commercial boats, large center consoles, and multi-display helms where a 16-inch screen can be viewed comfortably. Its hybrid control is useful when wet hands or boat movement make touchscreen-only operation less practical.

It is not ideal for a compact boat or buyers seeking a complete fishfinder package because the transducer is not included. The large display also requires careful mounting and power planning.

Compatibility

Confirmed features include hybrid control, Qualcomm 8-core processing, dual-channel 1kW CHIRP, Active Imaging HD support, and C-MAP Discover X North America charts. The supplied information does not identify NMEA 2000, NMEA 0183, Ethernet, radar, autopilot, WiFi, Bluetooth, or specific transducer compatibility. No named incompatible system was provided; verify Simrad network and sonar requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSS 4-16, NSS4 Series
- Display: 16-inch SolarMAX IPS touchscreen with hybrid control
- Resolution: 1920 x 1080 Full HD
- Processor: Qualcomm 8-core processor
- Built-in sonar: Dual-channel 1kW CHIRP, Active Imaging HD support
- Preloaded charts: C-MAP Discover X North America
- Transducer: Not included
- Warranty: 2-year standard warranty
- Origin: Made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The NSS 4-16 is the large-screen choice in this group, offering more chart and sonar workspace than the NSS4-12 and Lowrance 10-inch displays. Its Full HD resolution and dual-channel 1kW CHIRP suit a serious offshore installation, but the transducer must be selected separately. Choose it for a large helm, not a compact single-screen boat.
