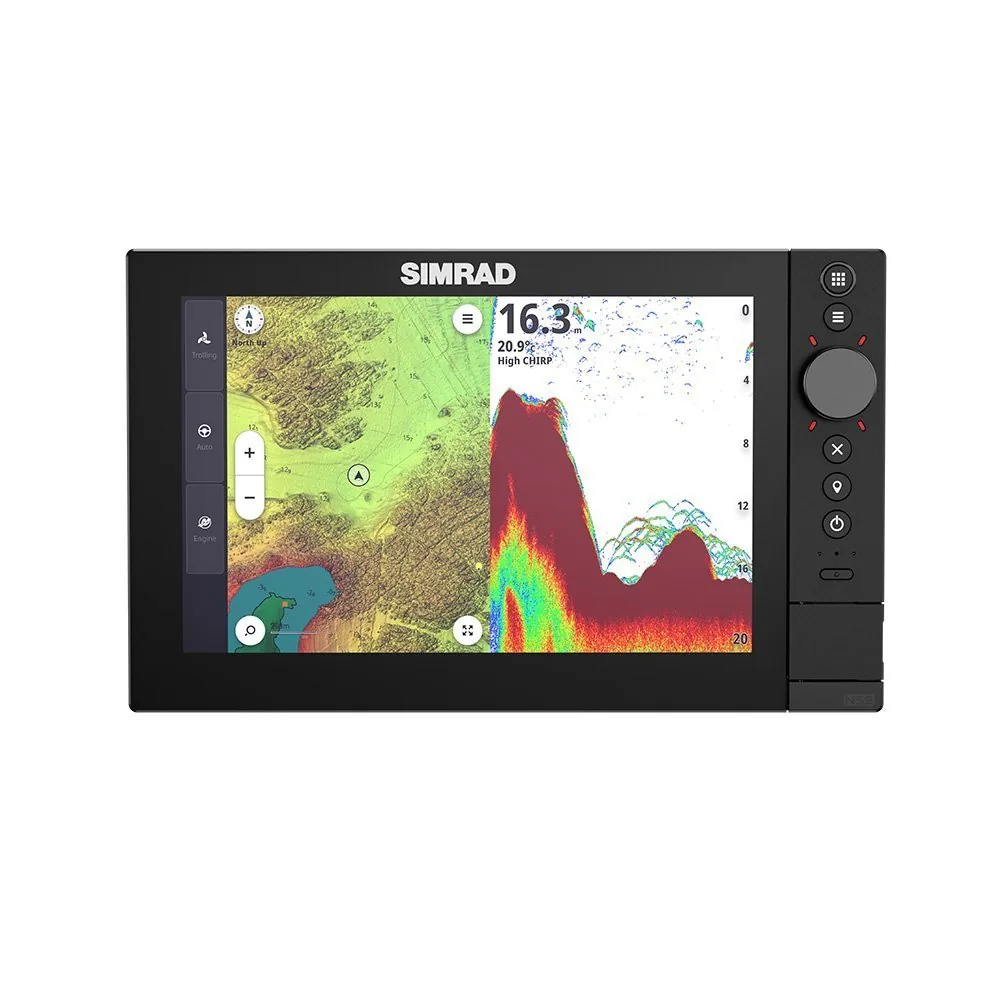

Simrad NSS4-10 10″ Combo C-MAP Chartplotter Unit

The Simrad NSS4-10 is a 10.1-inch SolarMAX HD IPS multifunction display with touchscreen and keypad control, 1280 x 720 resolution, dual-channel 1kW sonar, Active Imaging HD, StructureScan 3D, and SideScan/DownScan support. ActiveTarget, ActiveTarget 2, and LiveScope network compatibility provide expansion options, while NMEA 2000, NMEA 0183, J1939, Ethernet, and FLIR radar control support a connected marine system.

Key Features

- 10.1-inch SolarMAX HD IPS display – Provides a clear workspace for charts, sonar, and system data.
- 1280 x 720 resolution – Shows detailed mapping and sonar information in a mid-size display.
- Touchscreen and keypad control – Provides flexible operation when weather or boat movement makes one control method less convenient.
- Dual-channel 1kW sonar, Active Imaging HD, StructureScan 3D, and SideScan/DownScan – Supports several sonar technologies with suitable hardware.
- ActiveTarget, ActiveTarget 2, and LiveScope compatibility – Allows expansion with listed live-sonar modules and network equipment.

Who Is This For?

This model suits premium saltwater center consoles, offshore sportfishers, commercial blue-water yachts, and 22- to 42-foot boats that need a connected multifunction display. Its dual-control layout and multiple network interfaces suit a helm where radar, engine, and sonar data are combined.

It is not ideal for a basic fishing setup or a small console that only needs simple charting and depth. The supplied specifications do not identify a transducer as included, so sonar hardware must be selected separately.

Compatibility

Confirmed interfaces and features include Simrad Marine Ethernet, NMEA 2000, NMEA 0183, J1939 engine CAN bus, FLIR radar control, ActiveTarget, ActiveTarget 2, LiveScope network modules, Active Imaging HD, StructureScan 3D, and SideScan/DownScan. The supplied information does not identify specific transducer models. No named incompatible system was provided; verify Simrad, Lowrance, Garmin, and FLIR component compatibility before installation.

Technical Specifications

- Brand: Simrad
- Model: NSS4-10, 000-16124-001
- Display: 10.1-inch SolarMAX HD IPS with touchscreen and keypad
- Resolution: 1280 x 720 pixels
- Sonar output: 1,000 watts RMS per channel, true dual-channel
- Scanning sonar: Active Imaging HD, StructureScan 3D, SideScan, DownScan
- Live sonar: ActiveTarget, ActiveTarget 2, LiveScope network module compatibility
- Networking: Simrad Ethernet, NMEA 2000, NMEA 0183, J1939, FLIR radar control
- Operating voltage: 10-32 VDC
- Waterproof rating: IPX6 and IPX7

Warranty & Support

The supplied specifications do not state a warranty term for this listing. Confirm the current Simrad warranty coverage and exclusions before purchase.

The NSS4-10 is the compact flagship-style option here, offering more sonar and network expansion than a basic 10-inch MFD while retaining a manageable helm footprint. Its dual-channel 1kW engine, live-sonar compatibility, and FLIR radar control suit a connected offshore system. The trade-off is that the transducer and other network components must be selected separately, so installation planning is essential.
