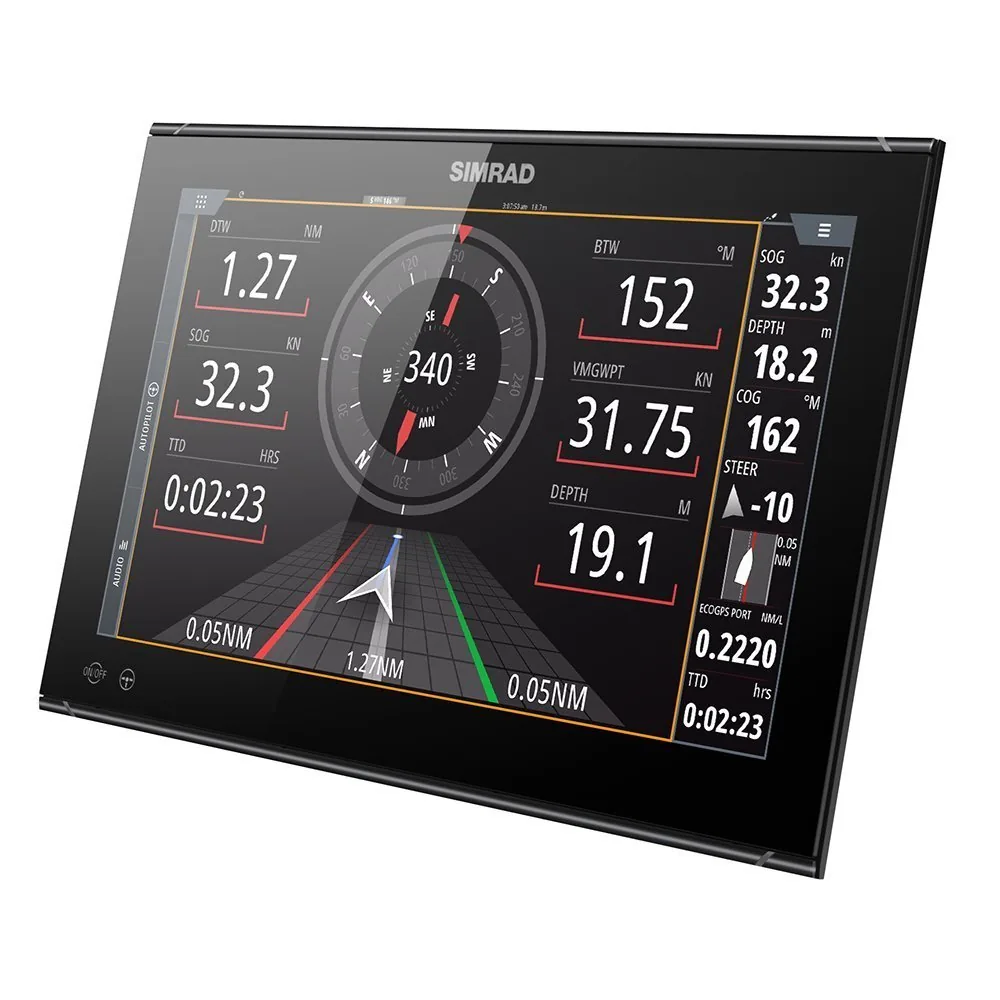

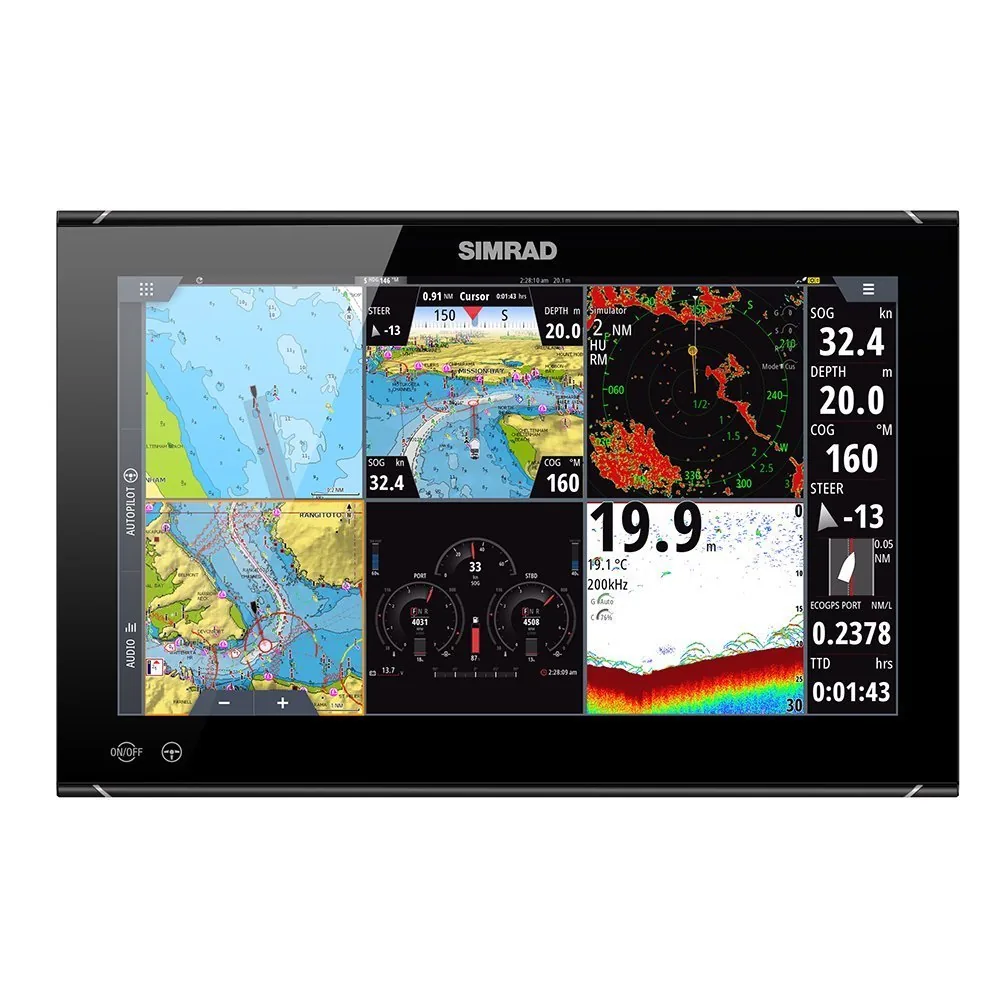

The Simrad NSO evo3S 16 is a large-format marine MFD for serious offshore boats, commercial vessels, and multi-display helms. Its 16-inch SolarMAX IPS Full HD screen provides room for charts, radar, engine data, and video, while the iMX 8 quad-core processor supports the system platform. Sonar requires an external module such as the S5100, SonarHub, or StructureScan 3D.

Key Features

- 16-inch SolarMAX IPS Full HD display – Provides a large, bright workspace for navigation and vessel data.
- 1920 x 1080 resolution – Gives detailed chart, radar, and video information across the large screen.
- iMX 8 high-performance quad-core processor – Provides the processing platform for the MFD system.
- Full multi-touch with OP50 remote support – Allows touchscreen use or remote physical control from another helm position.
- Three Ethernet ports, J1939, NMEA 2000, and HDMI input/output – Supports complex network, engine-data, and video installations.

Who Is This For?

This system suits commercial fishing vessels, offshore cruisers, pilot boats, and large multi-display helms where a 16-inch screen can remain visible from a standing position. Its networking and video connections are better suited to a planned vessel electronics system than a small recreational boat.

It is not ideal for a compact console or a buyer expecting an all-in-one fishfinder. Sonar is not self-contained and requires an external module, while the 16-inch display needs substantial mounting space.

Compatibility

Confirmed connections include three Ethernet ports, J1939, NMEA 2000, HDMI input/output, OP50 remote support, and external sonar modules including S5100, SonarHub, and StructureScan 3D. The supplied information does not identify radar, autopilot, NMEA 0183, or specific transducer compatibility. No named incompatible system was provided; verify module, network, and video requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSO evo3S 16, 000-15124-001
- Display: 16-inch SolarMAX IPS high-definition
- Resolution: 1920 x 1080 Full HD
- Processor: iMX 8 high-performance quad-core
- Control: Full multi-touch with OP50 remote support
- Networking: Three Ethernet, J1939, NMEA 2000, HDMI input/output
- Sonar support: External module required; S5100, SonarHub, or StructureScan 3D
- Warranty: 2-year standard warranty plus 5-year upgrade support
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty with 5-year upgrade support as listed in the supplied specifications. No warranty exclusions or upgrade conditions were provided.

The NSO evo3S 16 is the system-builder choice in this group, offering the largest display and the broadest listed video and network connections. It is more suitable than the 12-inch NSS12 evo3S for a large helm where several information panels must stay visible. The trade-off is that it needs external sonar hardware, so it is not the right purchase if you want a single box with a ready-to-use sounder.
