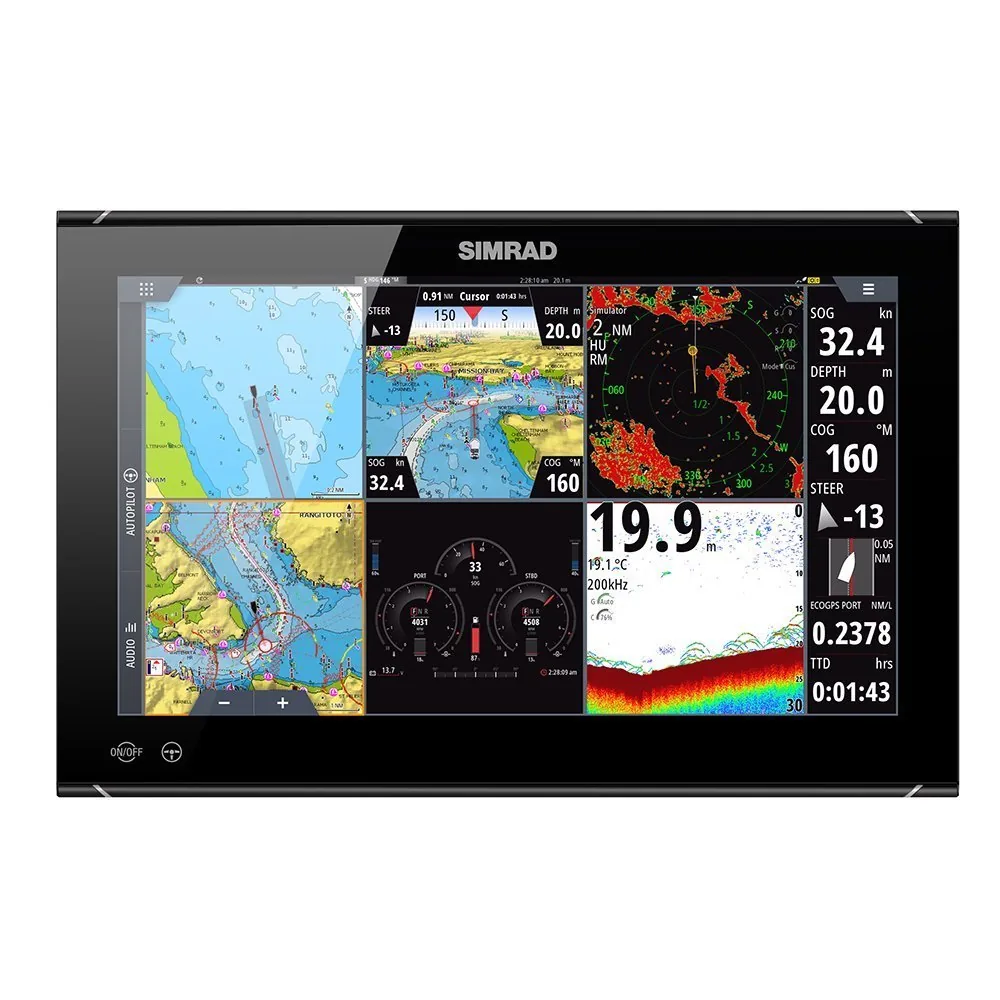

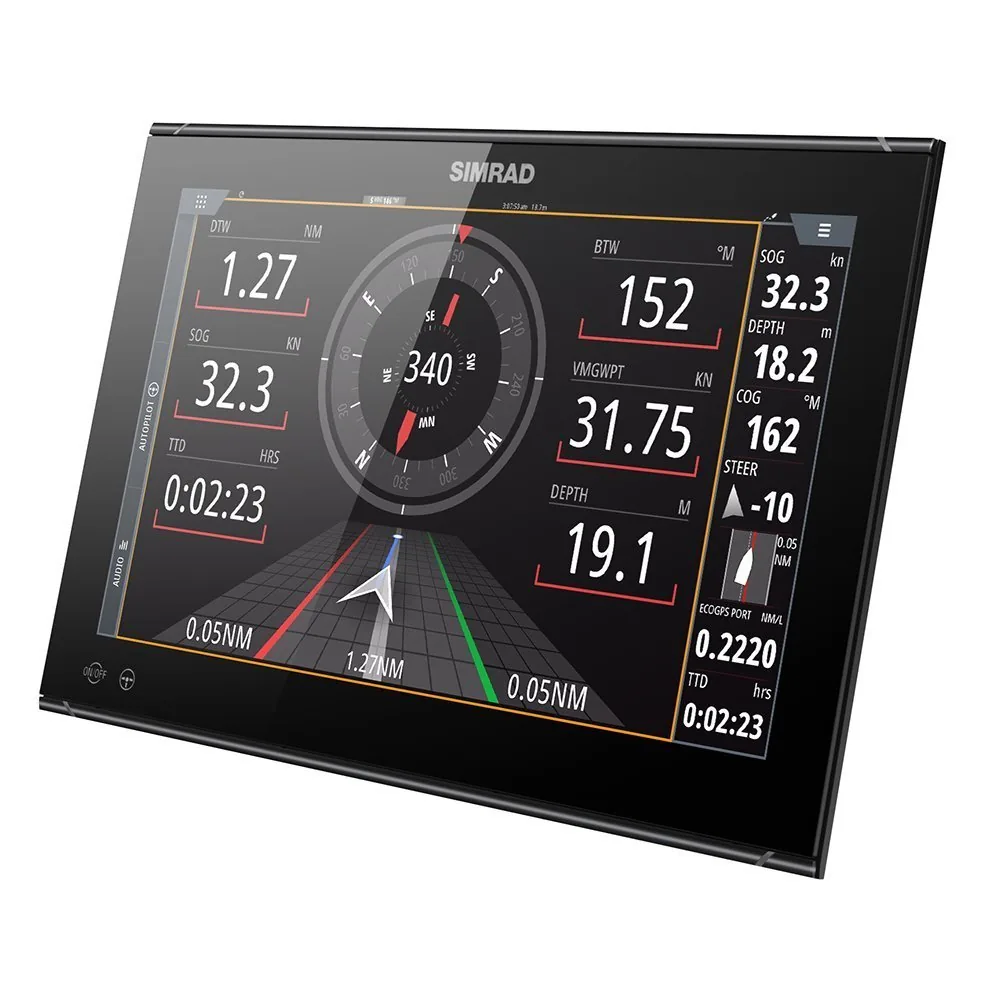

The Simrad NSO evo3S 16 display-only system is designed for large offshore boats, commercial vessels, and multi-display helms that need a 16-inch Full HD screen. Its iMX 8 quad-core processor, three Ethernet ports, J1939, NMEA 2000, and HDMI input/output support a complex vessel system. Sonar requires an external module such as the S5100, SonarHub, or S3100.

Key Features

- 16-inch SolarMAX IPS Full HD display – Provides a large workspace for charts, radar, engine data, and video.
- 1920 x 1080 resolution – Shows detailed navigation and video information across the large screen.
- iMX 8 high-performance quad-core processor – Provides the processing platform for the NSO evo3S system.
- External sonar module support – Allows sonar expansion through listed S5100, SonarHub, or S3100 modules.
- HDMI input, HDMI output, and composite video input – Supports the listed video connection options for a larger vessel system.

Who Is This For?

This model suits commercial fishing vessels, offshore cruisers, pilot boats, and multi-display helms where a large screen can remain visible from a standing position. Three Ethernet ports and J1939 support make it better suited to a planned vessel network than a small recreational boat.

It is not ideal for a compact console or buyers who expect an all-in-one fishfinder. Sonar hardware is not included, and the 16-inch display requires substantial mounting space.

Compatibility

Confirmed connections include three Ethernet ports, J1939, NMEA 2000, HDMI input, HDMI output, composite video input, and external sonar modules including S5100, SonarHub, and S3100. The supplied information does not identify specific radar, autopilot, NMEA 0183, or transducer compatibility. No named incompatible system was provided; verify Simrad module, video, and network requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: NSO evo3S 16, 000-15124-001
- Display: 16-inch SolarMAX IPS multi-touch
- Resolution: 1920 x 1080 Full HD
- Processor: iMX 8 high-performance quad-core
- Sonar support: External module required; S5100, SonarHub, or S3100
- Video interface: HDMI input, HDMI output, composite video input
- Networking: Three Ethernet, J1939, NMEA 2000
- Warranty: 2-year standard warranty plus 5-year upgrade support
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty with 5-year upgrade support as listed in the supplied specifications. No warranty exclusions or upgrade conditions were provided.

The NSO evo3S 16 display-only system is the large-vessel choice in this group, with more screen area, video connectivity, and Ethernet capacity than the NSX 3009. Its main trade-off is the need for external sonar hardware and a much larger mounting area. Choose it for a commercial or offshore system that will be built around separate radar, sounder, and video modules, not for a compact all-in-one installation.
