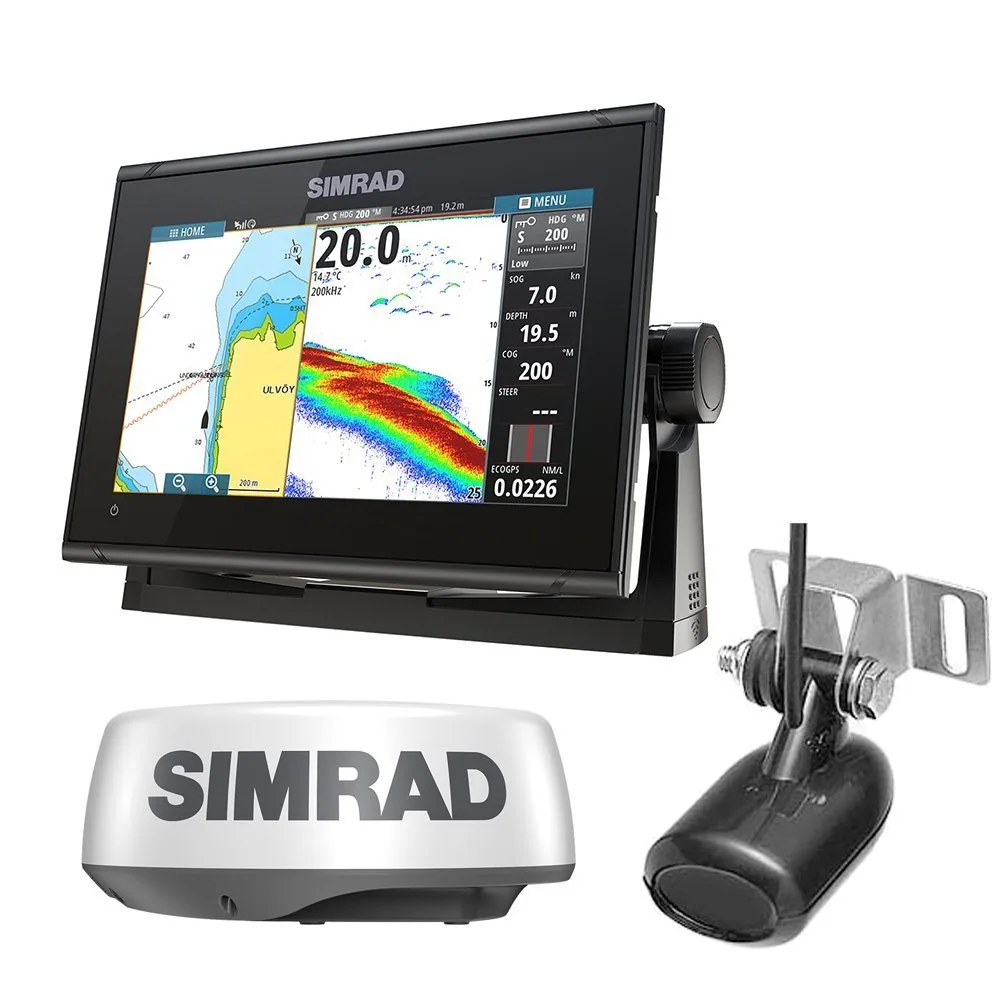

Simrad GO9 XSE Combo w/Transom Mount Transducer 83/200 kHz & HALO20 Package

The Simrad GO9 XSE Radar Bundle combines a 9-inch SolarMAX multi-touch display with a HALO20 pulse-compression dome radar, an included 83/200kHz Medium/High CHIRP transducer, and C-MAP US Inland Basemap. NMEA 2000, a dedicated Ethernet radar port, and WiFi support the listed radar connection. This package suits coastal day cruisers, runabouts, RIBs, and 18- to 26-foot center consoles.

Key Features

- 9-inch SolarMAX multi-touch display – Provides a practical chart, radar, and sonar workspace for a mid-size helm.
- 800 x 480 resolution – Displays essential navigation and fishfinding information while keeping the display compact.
- HALO20 pulse-compression dome radar with 24nm range – Provides the included radar component for target and weather monitoring.
- 83/200kHz Medium/High CHIRP transducer included – Provides conventional sonar from the included transom-mount transducer.
- NMEA 2000, Ethernet radar port, and WiFi – Supports the listed network and radar connections.

Who Is This For?

This bundle suits coastal day boats, sports runabouts, RIBs, and single-outboard center consoles that want radar and sonar in one package. The included dome, transducer, and display reduce the number of separate components needed for installation.

It is not ideal for a large offshore vessel that needs a 12- or 16-inch display, or for buyers who require detailed regional charts because the supplied chart specification lists a US Inland Basemap.

Compatibility

Confirmed components include the HALO20 pulse-compression dome radar, 83/200kHz Medium/High CHIRP transducer, C-MAP US Inland Basemap, NMEA 2000, one Ethernet radar port, and WiFi. The supplied information does not identify NMEA 0183, autopilot, Bluetooth, or third-party radar compatibility. No named incompatible system was provided; verify Simrad radar, sonar, and network requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: GO9 XSE Radar Bundle, 000-15402-001
- Display: 9-inch multi-touch SolarMAX display
- Resolution: 800 x 480 pixels
- Radar: HALO20 pulse-compression dome, 24nm range
- Transducer: 83/200kHz Medium/High CHIRP transom mount
- Preloaded charts: C-MAP US Inland Basemap
- Networking: NMEA 2000, one Ethernet radar port, WiFi
- Warranty: 2-year standard warranty
- Origin: Made in Mexico

Warranty & Support

Simrad provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GO9 XSE Radar Bundle is the integrated small-boat choice here, combining radar, a transducer, and chartplotting in a 9-inch display. It is more complete than the standalone GO9 XSE system, but the 800 x 480 screen offers less detail than larger MFDs and the included chart coverage is listed as US Inland Basemap. Choose it for compact radar expansion rather than a large offshore helm.
