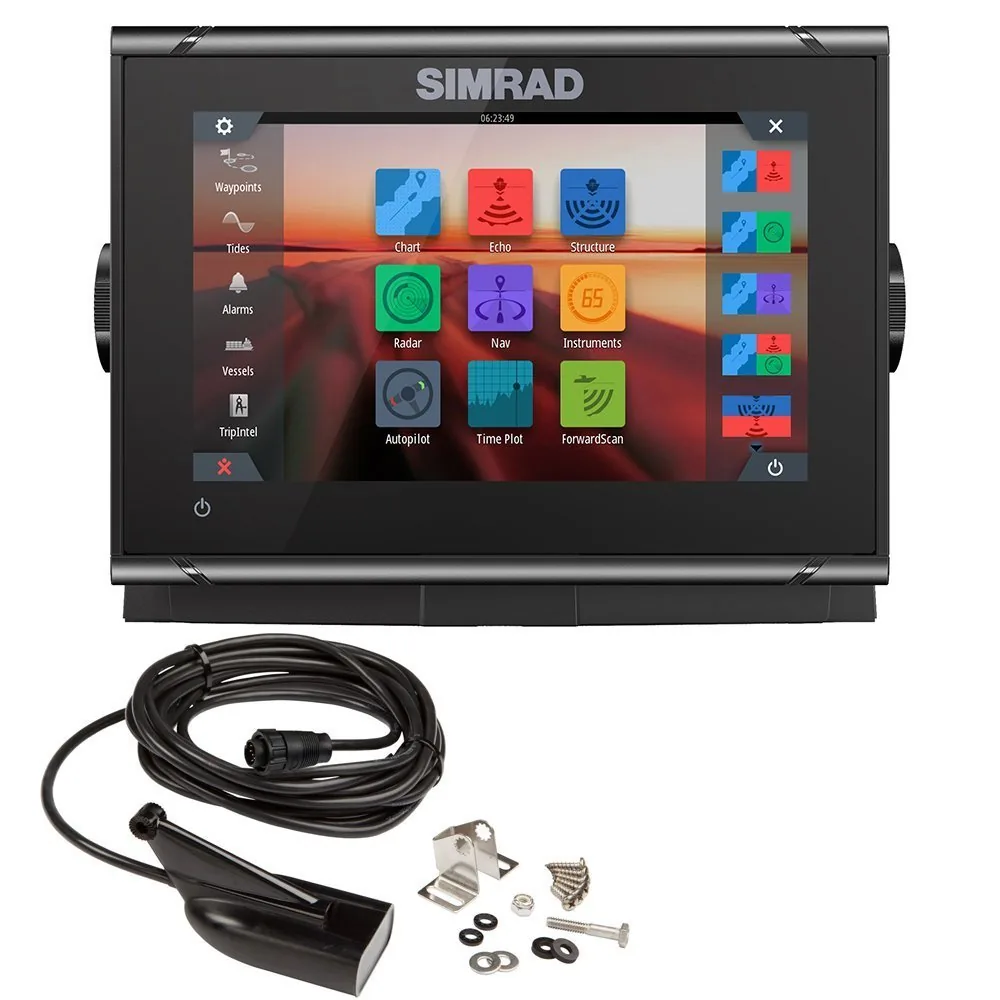

Simrad GO7 XSR Chartplotter/Fishfinder w/HDI Transom Mount Transducer & C-MAP Discover Chart

The Simrad GO7 XSR bundle combines a 7-inch multi-touch widescreen with C-MAP Discover North America charts and an included HDI Skimmer transducer. Medium/High CHIRP and DownScan are provided by the supplied transducer, while the unit also supports SideScan and ForwardScan with compatible equipment. NMEA 2000, a radar port, and WiFi give this compact chartplotter room to expand on a coastal fishing boat or small cruiser.

Key Features

- 7-inch multi-touch widescreen – Provides a compact display for charts and sonar.
- 800 x 480 WVGA resolution – Shows essential navigation and fishfinding information while keeping installation manageable.
- HDI Skimmer transducer included – Provides Medium/High CHIRP and DownScan from the included transom-mount transducer.
- C-MAP Discover North America charts – Provides preloaded chart coverage for supported North American waters.
- NMEA 2000, radar port, and WiFi – Provides confirmed options for networking and future electronics expansion.

Who Is This For?

This bundle suits small center consoles, coastal fishing boats, bay boats, and compact cruisers that need charting and sonar in one package. The included HDI transducer makes it more convenient than a display-only unit.

It is not ideal for a large offshore helm that needs a 10- or 12-inch display for comfortable split-screen viewing. SideScan and ForwardScan support are listed, but the included transducer specification covers Medium/High CHIRP and DownScan.

Compatibility

Confirmed components include the HDI Skimmer transducer, C-MAP Discover North America charts, NMEA 2000, radar port, and WiFi. The supplied information does not identify specific autopilot, radar, NMEA 0183, or third-party transducer compatibility. No named incompatible system was provided; verify Simrad accessory and network requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: GO7 XSR, 000-14838-002
- Display: 7-inch multi-touch widescreen
- Resolution: 800 x 480 WVGA
- Transducer: HDI Skimmer with Medium/High CHIRP and DownScan
- Preloaded charts: C-MAP Discover North America
- Networking: NMEA 2000, radar port, WiFi
- Sonar support: CHIRP, DownScan, SideScan, ForwardScan
- Warranty: 2-year limited warranty
- Origin: Designed in Norway; made in Mexico

Warranty & Support

Simrad provides a 2-year limited warranty. The supplied specifications do not state warranty exclusions or service procedures.

The GO7 XSR HDI bundle is the practical choice over the display-only version when you want the transducer included for a simpler installation. Its 7-inch size suits smaller boats, while NMEA 2000 and the radar port provide room to expand. The trade-off is screen area: a GO9 or larger MFD is easier to read for complex split-screen work, but it requires more helm space.
