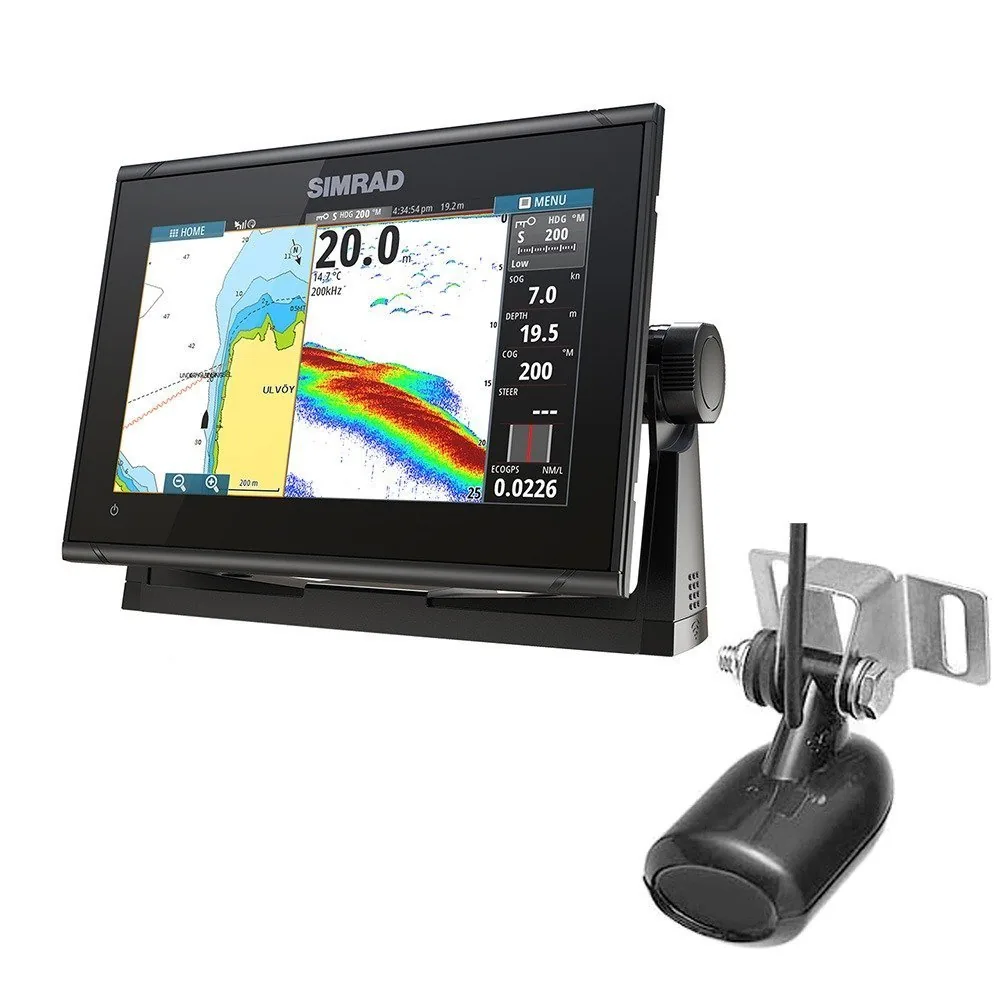

The Simrad GO9 XSE bundle with an 83/200kHz transducer provides a 9-inch multi-touch SolarMAX display, conventional Medium/High CHIRP sonar, StructureScan HD, DownScan Imaging, and a transom-mount Skimmer transducer. C-MAP and radar Ethernet support are listed, along with NMEA 2000, dual microSD slots, WiFi, and a dedicated radar connection. It is suited to coastal day boats and 18- to 26-foot center consoles.

Key Features

- 9-inch WVGA multi-touch display – Provides a practical chart and sonar workspace for a mid-size helm.
- 800 x 480 resolution – Keeps the unit compact while displaying essential navigation and fishfinding information.
- 83/200kHz Skimmer transducer included – Provides Medium/High CHIRP and conventional sonar from the supplied transducer.
- StructureScan HD and DownScan Imaging – Adds structure and downward imaging to conventional sonar.
- NMEA 2000, dual microSD, WiFi, and radar Ethernet – Provides the listed options for data, chart, and radar expansion.

Who Is This For?

This model suits coastal day cruisers, sports runabouts, RIBs, and single-outboard center consoles that need a 9-inch chartplotter/fishfinder with a transducer included. The transom-mount Skimmer is practical for a straightforward installation.

It is not ideal for a large vessel that needs a Full HD display or integrated radar hardware in the same package. The listed 83/200kHz transducer provides less imaging coverage than an Active Imaging 3-in-1 unit.

Compatibility

Confirmed components include the 83/200kHz Skimmer transducer, StructureScan HD, DownScan Imaging, NMEA 2000, dual microSD slots, built-in WiFi, and a radar Ethernet port. The supplied information does not identify a specific radar model, NMEA 0183, autopilot, Bluetooth, or third-party transducer compatibility. No named incompatible system was provided; verify Simrad accessory and network requirements before installation.

Technical Specifications

- Brand: Simrad
- Model: GO9 XSE Med/High Bundle, 000-13212-001
- Display: 9-inch WVGA multi-touch screen
- Resolution: 800 x 480 pixels
- Sonar output: 500 watts RMS
- Traditional CHIRP: 83/200kHz Medium and High CHIRP
- Scanning sonar: StructureScan HD and DownScan Imaging
- Transducer: Skimmer 83/200kHz transom mount with 20-foot cable
- Networking: NMEA 2000, dual microSD, WiFi, radar Ethernet port
- Waterproof rating: IPX7

Warranty & Support

The supplied specifications do not state a warranty term for this listing. Confirm the current Simrad warranty coverage and exclusions before purchase.

This GO9 XSE transducer bundle is the sonar-focused alternative to the GO9 XSE radar package, including StructureScan HD and DownScan through the 83/200kHz transom transducer but not listing a radar dome. It provides more imaging than a basic conventional sounder, while the 9-inch display remains practical on a smaller boat. Choose it when sonar is the priority and radar will be added separately or is not required.
