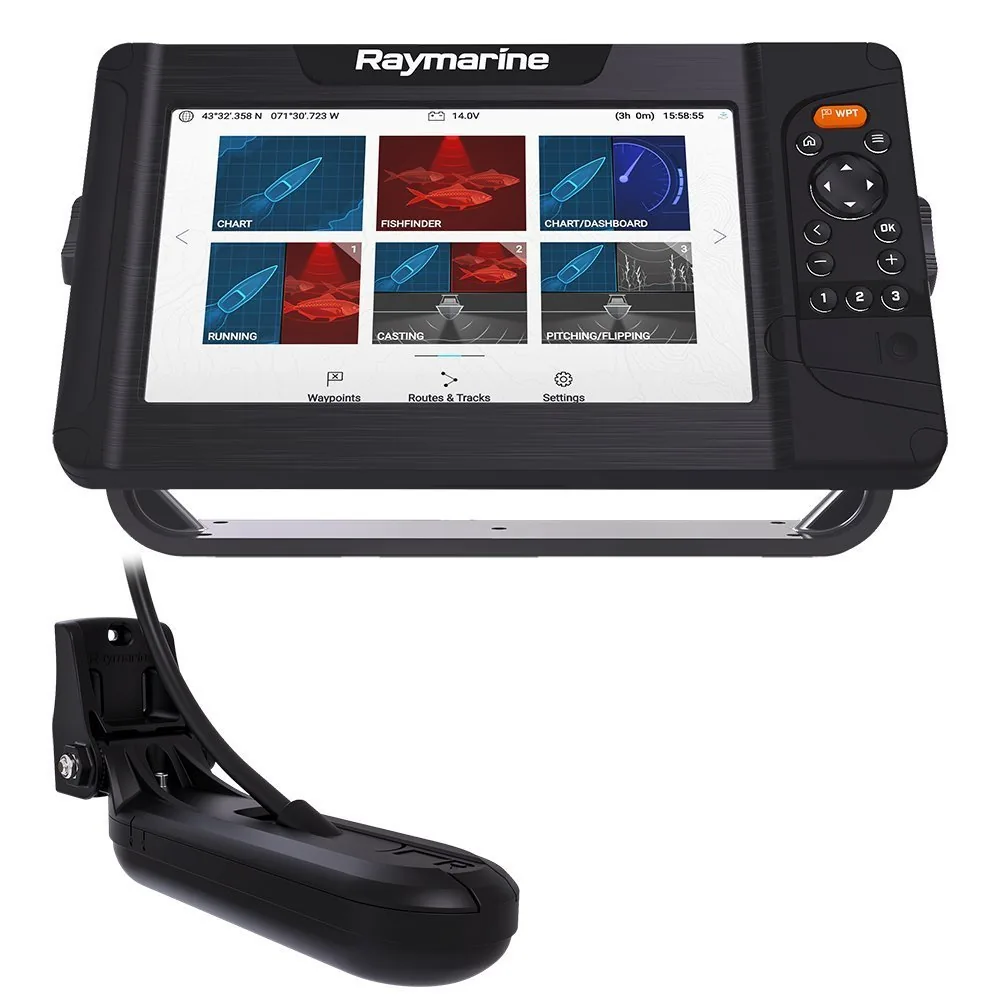

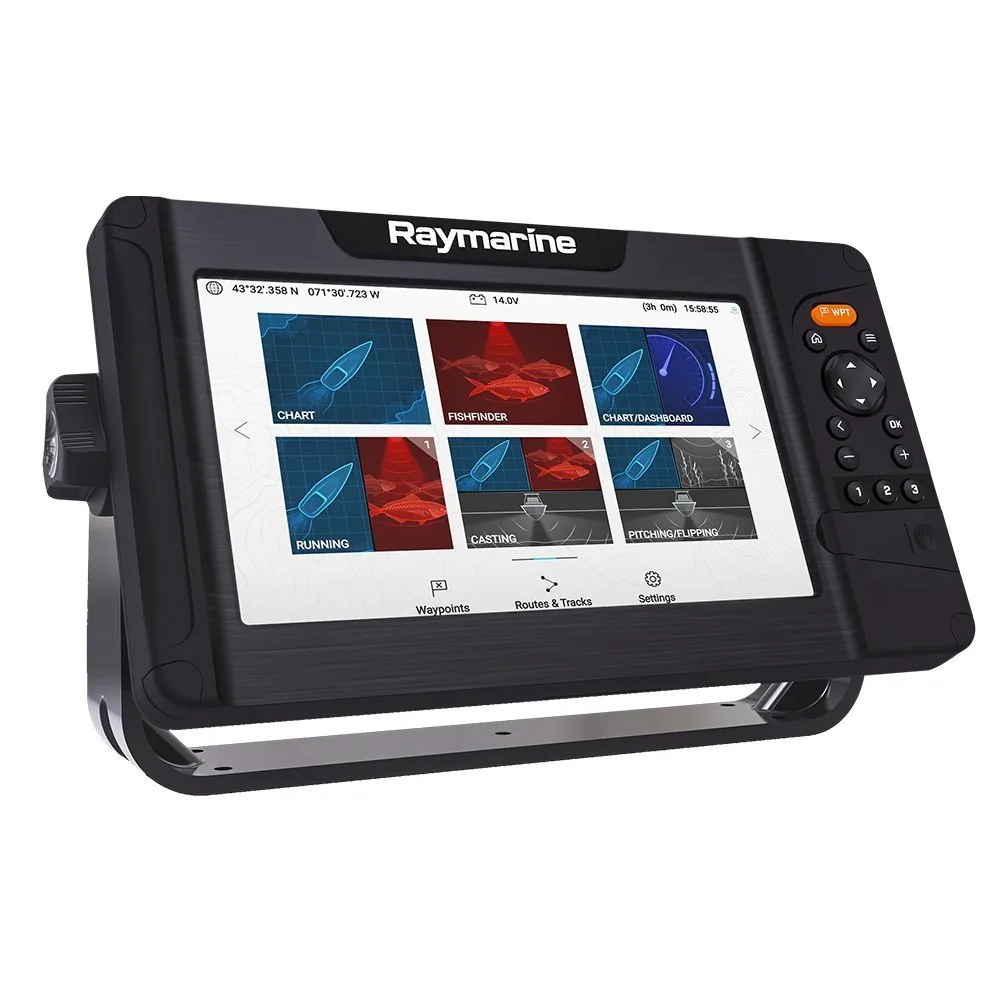

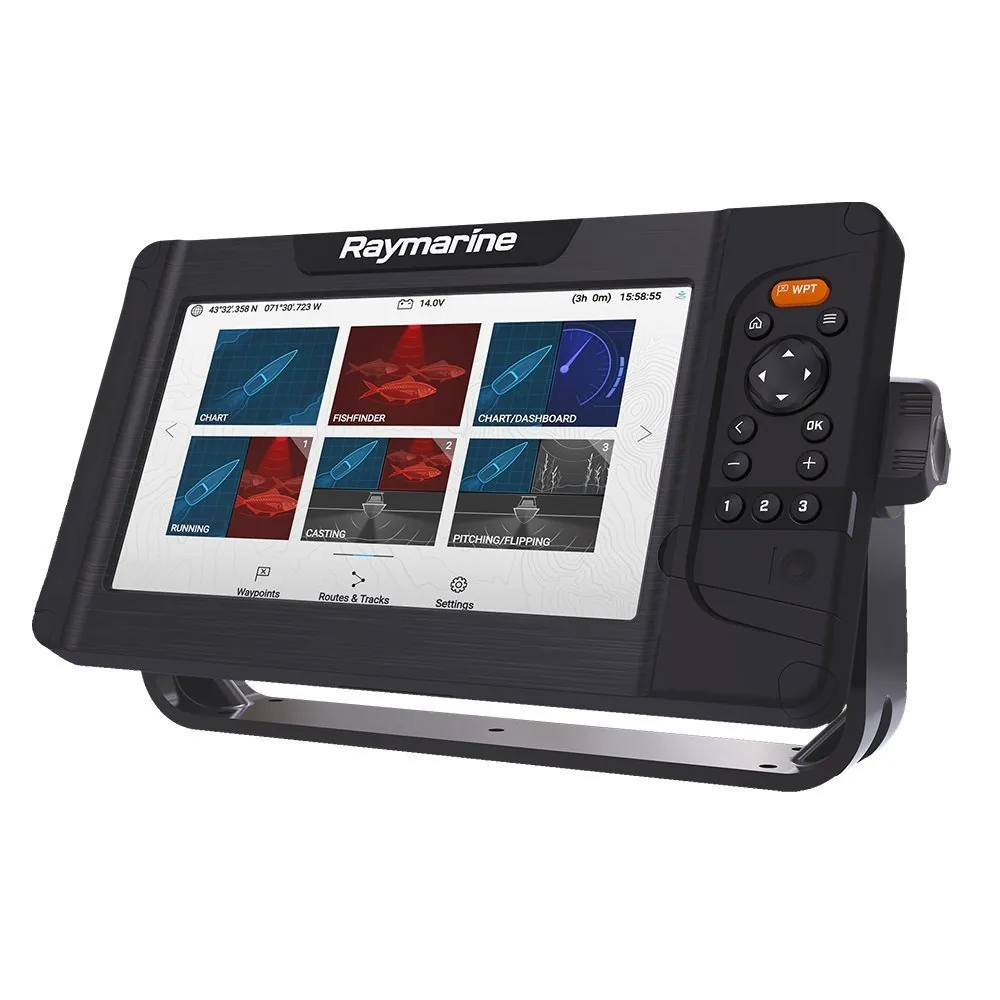

Raymarine Element 9 HV Combo w/HV-100 Transducer

The Raymarine Element 9 HV bundle combines a 9-inch sunlight-viewable display with an included HV-100 HyperVision all-in-one transom-mount transducer. HyperVision 1.2MHz, SideVision, DownVision, and RealVision 3D provide multiple sonar views, while the 1,500-nit brightness is specified for clear viewing in bright conditions. This package is designed as a complete sonar installation rather than a display-only upgrade.

Key Features

- 9-inch sunlight-viewable LCD – Provides a practical chart and sonar display for coastal boats and fishing helms.
- 800 x 480 WVGA resolution – Displays essential chart and sonar data in a compact 9-inch format.
- HV-100 HyperVision all-in-one transducer included – Supplies the transducer required for the listed sonar modes.
- HyperVision 1.2MHz, SideVision, DownVision, and RealVision 3D – Provides high-frequency, side-looking, downward, and three-dimensional sonar views.
- 1,500-nit brightness – Provides the stated screen brightness for viewing in strong daylight.

Who Is This For?

This bundle suits coastal fishing boats, small center consoles, day boats, and cruisers that want a 9-inch Raymarine display with the transducer included. The all-in-one HV-100 transducer simplifies the sonar side of a new installation.

It is not ideal for buyers who already own a different compatible transducer or who need a larger 12-inch navigation display. The supplied specification also does not list detailed chart coverage as included.

Compatibility

Confirmed compatibility includes the HV-100 HyperVision all-in-one transom-mount transducer, HyperVision 1.2MHz, SideVision, DownVision, and RealVision 3D sonar. The supplied information does not identify NMEA 2000, NMEA 0183, radar, autopilot, WiFi, or Bluetooth compatibility for this listing. No named incompatible system was provided; verify Raymarine network and mounting requirements before installation.

Technical Specifications

- Brand: Raymarine
- Model: Element 9 HV, E70534-05
- Display: 9-inch sunlight-viewable LCD
- Resolution: 800 x 480 WVGA
- Transducer: HV-100 HyperVision all-in-one transom mount included
- Sonar type: HyperVision 1.2MHz, SideVision, DownVision, RealVision 3D
- Brightness: 1,500 nits
- Typical power draw: 20 watts
- Warranty: 3-year limited warranty with product registration
- Origin: Designed in the UK; made in Hungary

Warranty & Support

Raymarine provides a 3-year limited warranty with product registration. The supplied specifications do not state warranty exclusions or service procedures.

The Element 9 HV bundle is the ready-to-install sonar choice compared with the Element 9 S display-only model. The included HV-100 transducer provides HyperVision, SideVision, DownVision, and RealVision 3D, while the 1,500-nit screen is specified for bright conditions. The trade-off is less installation flexibility: you receive the included HV-100 rather than choosing a separate transducer for a particular hull.
