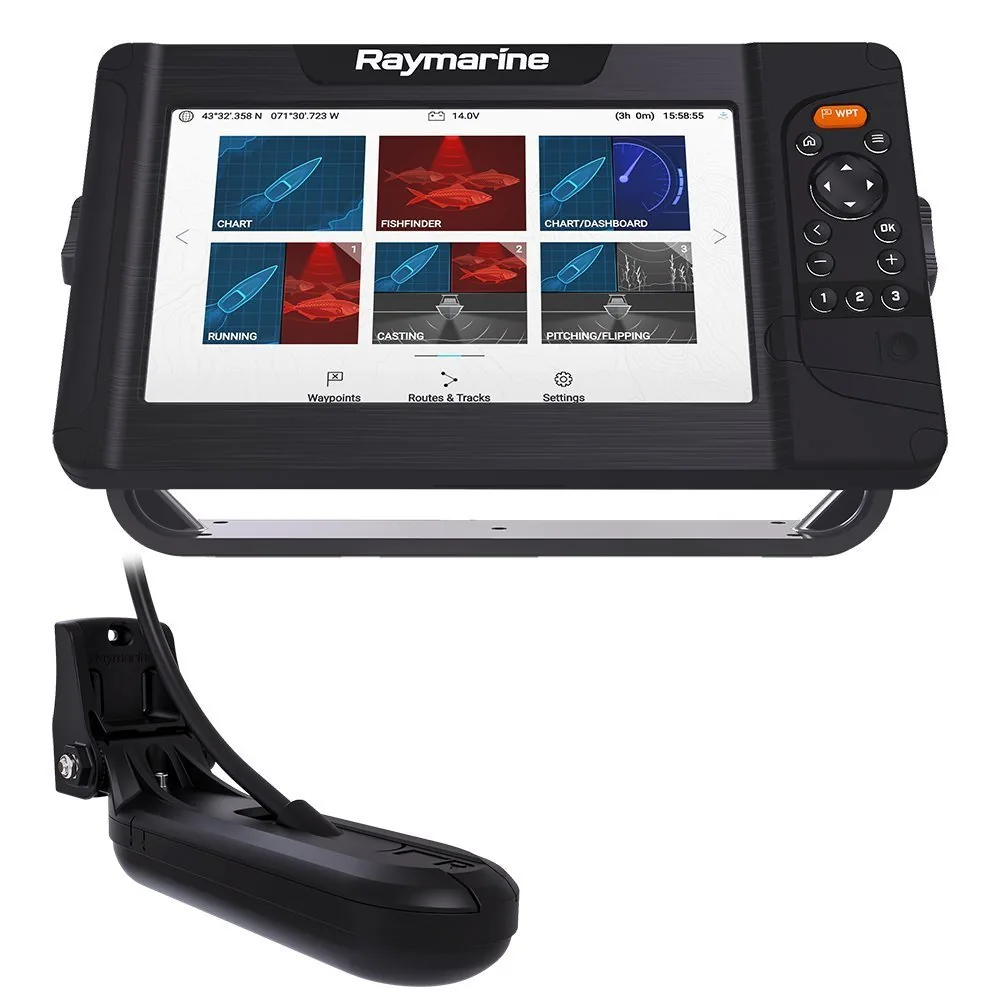

Raymarine Element 9 HV Combo w/HV-100 Transom Mount Transducer & Lighthouse North America Chart

Buying a chartplotter and then discovering the transducer is a separate line item — and a separate compatibility decision — is exactly what this bundle skips. The Raymarine Element 9 HV Combo ships with the HV-100 transom-mount transducer already matched to the unit, so HyperVision CHIRP and RealVision 3D imaging work the day it’s installed.

Key Features

- HV-100 all-in-one transom mount transducer included and pre-matched to the head unit — no separate compatibility research needed before you can use HyperVision or RealVision 3D.
- HyperVision CHIRP at 1.2MHz plus RealVision 3D — sharper structure and fish detail than the standard CHIRP found on the entry-level Element S.
- 9″ sunlight-viewable LCD — built to stay readable in direct sun without the glare issues cheaper non-optically-treated screens get.
- LightHouse North America charts preloaded — no separate chart purchase to start navigating coastal and inland US waters.
- Quad-core processor with NMEA 2000 and SeaTalkNG — enough for smooth single-display operation, with a path to network into a larger Raymarine system later.

Who This Is For

This suits anglers who want RealVision 3D and HyperVision imaging without researching transducer compatibility separately — the bundle removes that step entirely. It’s not the right buy if you already own a compatible Raymarine transducer from a previous unit; the no-transducer version of this same display exists specifically so you’re not paying for hardware you don’t need.

Compatibility

Confirmed compatible: NMEA 2000 devices, SeaTalkNG networks, and Wi-Fi for the Raymarine app. The HV-100 transducer included here is matched specifically to this unit’s HyperVision sonar engine — it is not the same transducer used by Raymarine’s RealVision MAX (RVM) line, so it won’t cross over to an Axiom RVM display if you upgrade later.

Technical Specifications

- Display: 9.0″ Sunlight Viewable LCD, 800×480 WVGA
- Transducer: HV-100 All-in-One Transom Mount, included
- Sonar: HyperVision CHIRP (1.2MHz), RealVision 3D
- Charts: LightHouse North America, preloaded
- Processor: Quad-core
- Networking: NMEA 2000 (SeaTalkNG), Wi-Fi
- Water rating: IPX6 / IPX7

Warranty & Support

Covered by Raymarine’s 2-year standard limited warranty, extendable to 3 years free with online registration within 90 days of purchase.

Weigh this against the no-transducer version of the same Element 9 HV, and the decision is simple: buy this bundle if you don’t already own a compatible transducer, and buy the bare unit if you do. Nothing else about the head unit changes between the two.
