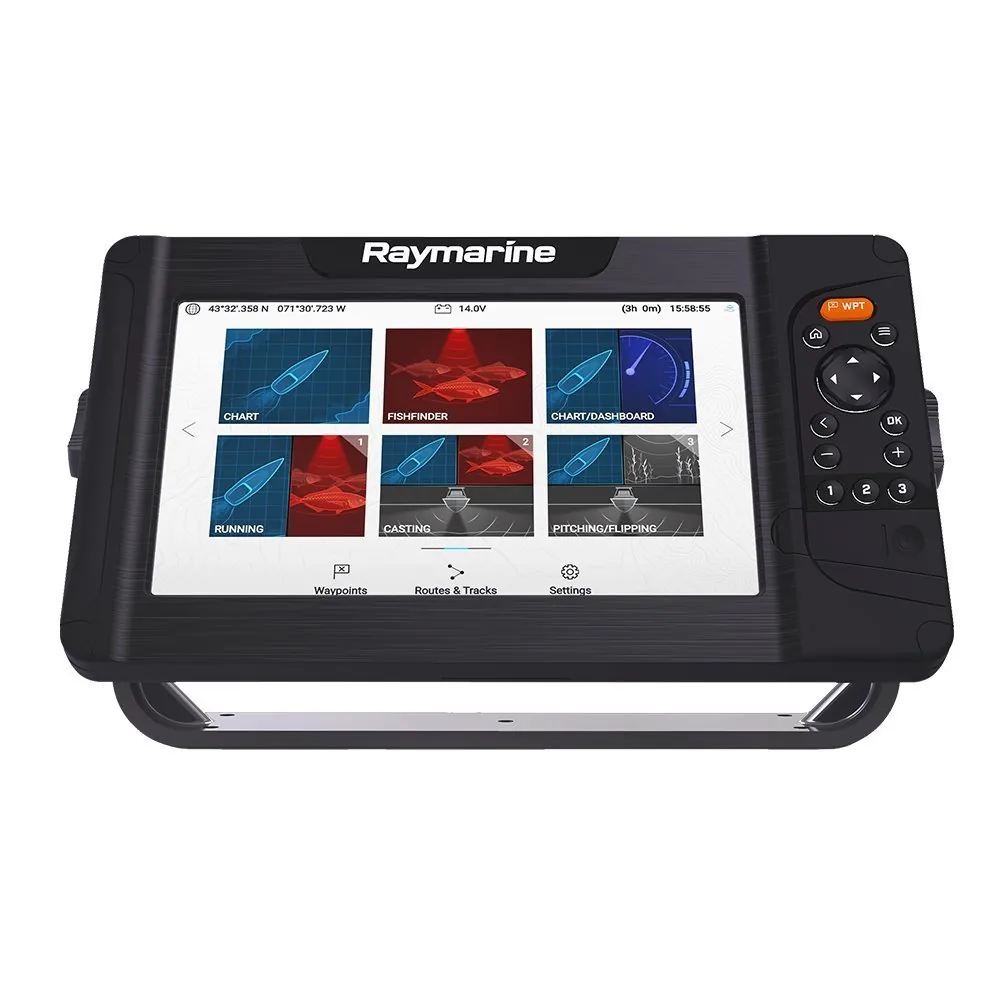

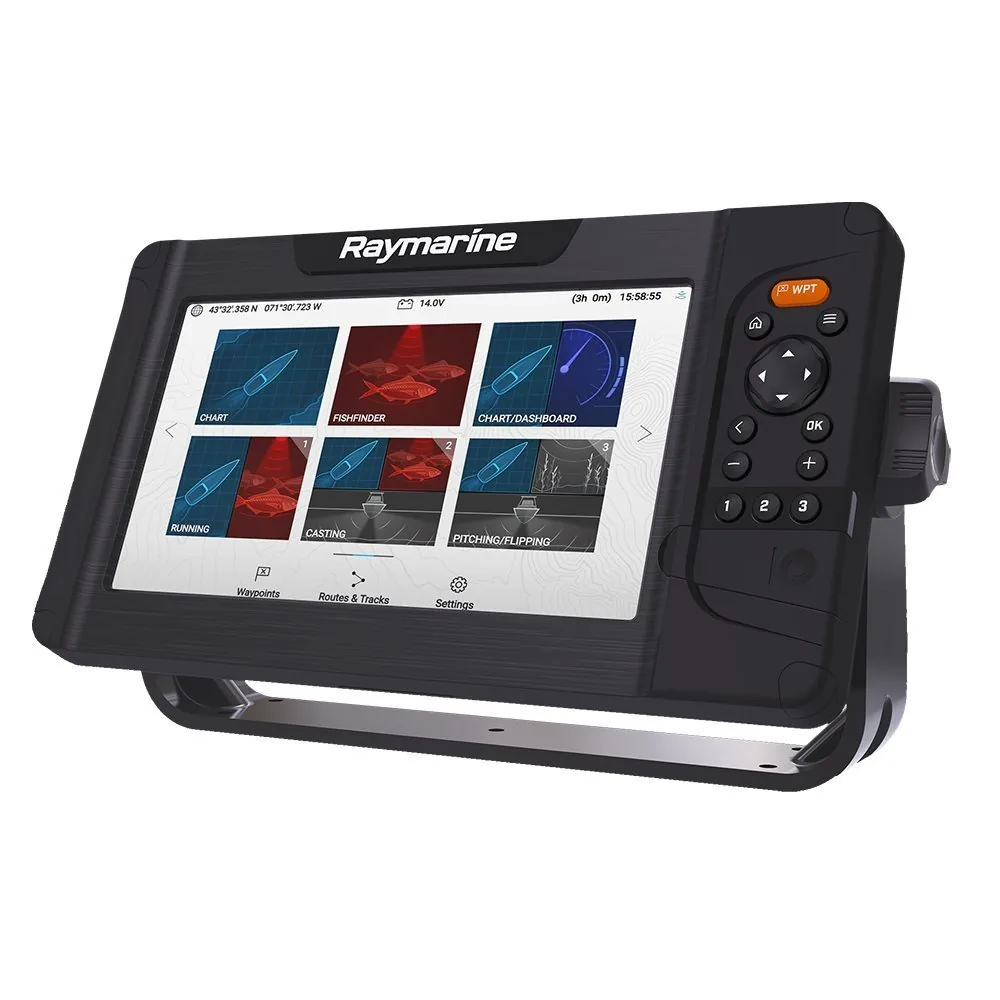

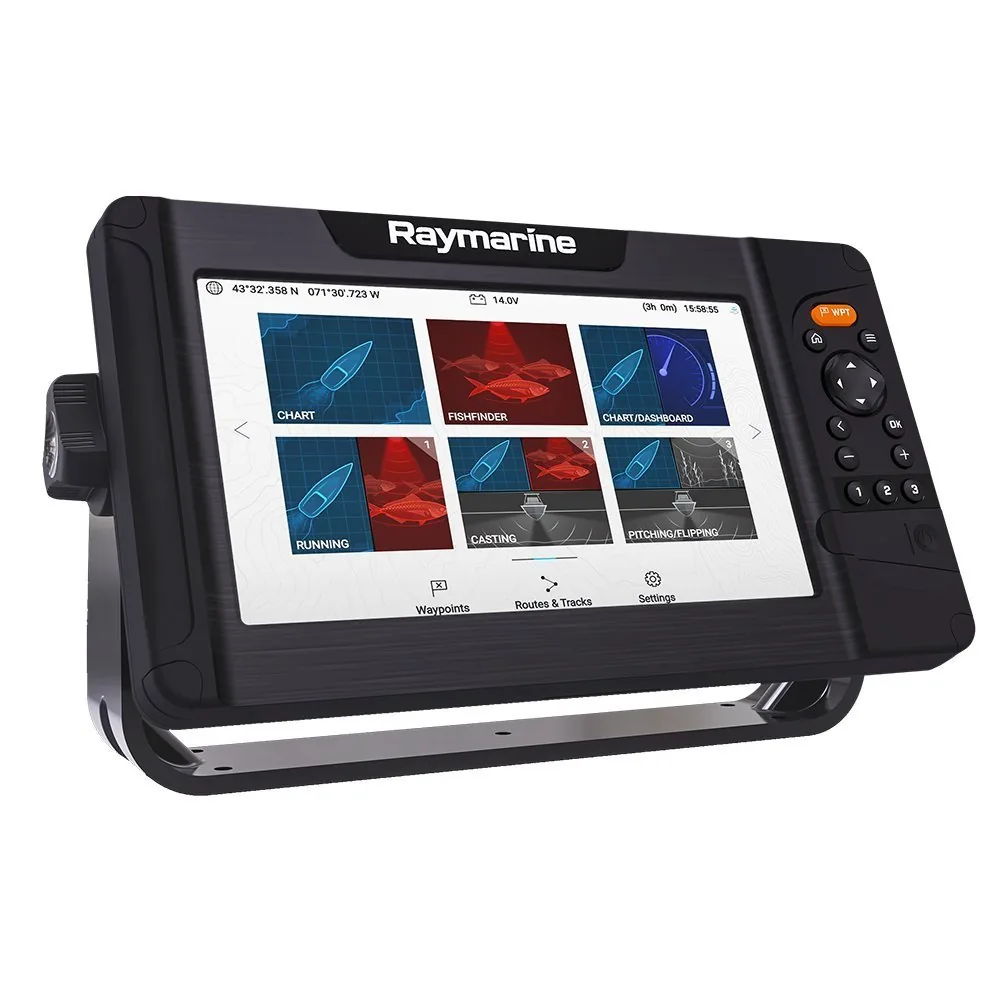

Raymarine Element 9 HV Combo w/Nav+ & Canada Chart

The Raymarine Element 9 HV bundle with Navionics+ Canada and Alaska charts combines a 9-inch optically bonded display with an included HV-100 transom-mount transducer. HyperVision 1.2MHz CHIRP, RealVision 3D, and High CHIRP provide several sonar views, while NMEA 2000, WiFi, and Bluetooth support listed network connections. It is a complete regional chart and sonar package for supported Canadian and Alaskan waters.

Key Features

- 9-inch optically bonded LCD – Provides a practical screen size for coastal fishing and cruising.
- 800 x 480 WVGA resolution – Displays chart and sonar information in a compact format.
- HV-100 all-in-one transom-mount transducer included – Supplies the sonar hardware for the listed functions.
- HyperVision 1.2MHz CHIRP, RealVision 3D, and High CHIRP – Provides detailed high-frequency and conventional sonar views.
- Navionics+ Canada and Alaska charts – Provides preloaded regional chart coverage for supported Canadian and Alaskan waters.

Who Is This For?

This package suits Canadian and Alaskan coastal anglers, small cruisers, center consoles, and boats that need regional charts and multiple Raymarine sonar views in one box. The included HV-100 transducer makes it suitable for a new installation.

It is not ideal for boats operating outside the listed chart region or buyers who need a larger high-resolution display. Buyers who already have a transducer may prefer a display-only model.

Compatibility

Confirmed components include the HV-100 all-in-one transom-mount transducer, Navionics+ Canada and Alaska charts, HyperVision 1.2MHz CHIRP, RealVision 3D, High CHIRP, NMEA 2000, WiFi, and Bluetooth. The supplied information does not identify NMEA 0183, radar, autopilot, or third-party transducer compatibility. No named incompatible system was provided; verify chart region and Raymarine network requirements before installation.

Technical Specifications

- Brand: Raymarine
- Model: Element 9 HV, E70534-05-CAN
- Display: 9-inch optically bonded LCD
- Resolution: 800 x 480 WVGA
- Preloaded charts: Navionics+ Canada and Alaska
- Sonar: HyperVision 1.2MHz CHIRP, RealVision 3D, High CHIRP
- Transducer: HV-100 all-in-one transom mount included
- Networking: NMEA 2000, WiFi, Bluetooth
- Warranty: 3-year limited warranty with product registration
- Origin: Designed in the UK; made in Hungary

Warranty & Support

Raymarine provides a 3-year limited warranty with product registration. The supplied specifications do not state warranty exclusions or service procedures.

This Element 9 HV package is the right choice over the no-chart Element 9 S when your boat operates in Canada or Alaska and you want charts and the HV-100 transducer included. It combines regional mapping with HyperVision, RealVision 3D, and High CHIRP sonar. The trade-off is regional limitation: buyers operating elsewhere should confirm chart coverage before choosing this package.
