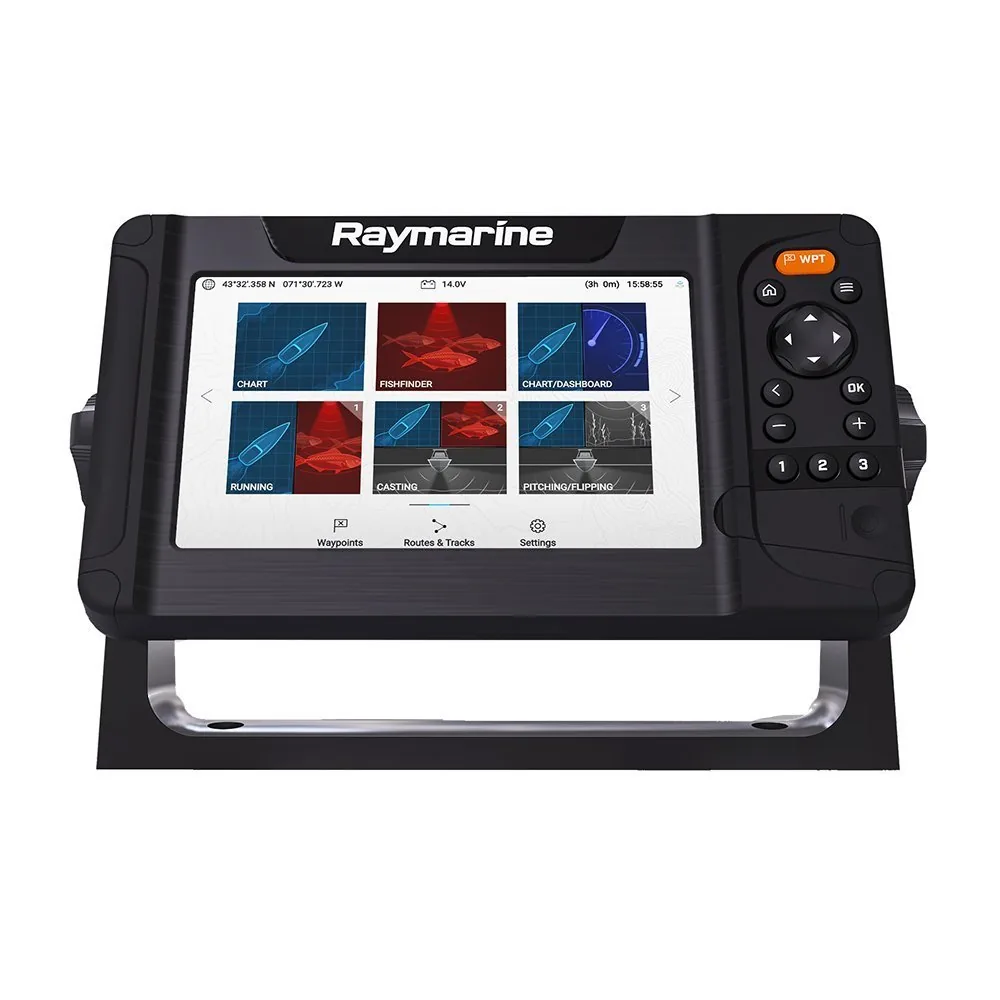

Raymarine Element 7 HV Combo w/Lighthouse North America Chart – No Transducer

The Raymarine Element 7 HV with LightHouse North America Charts is a compact marine chartplotter fishfinder for small fishing boats and coastal craft. Its 7-inch sunlight-viewable screen keeps the helm installation tidy, while built-in HyperVision, RealVision 3D, and High CHIRP sonar provide several ways to examine the bottom. This version does not include a transducer, so it is best for an owner who already has a suitable installation plan rather than someone looking for a complete fishfinder bundle.

Key Features

- 7-inch sunlight-viewable LCD → Provides a compact display for charts, depth information, and sonar views on smaller consoles.
- 800 x 480 WVGA resolution → Offers basic chart and sonar detail while keeping the unit smaller and less demanding on helm space.
- HyperVision 1.2MHz sonar → Uses a high-frequency sonar mode for detailed returns in suitable shallow-water conditions.
- RealVision 3D and High CHIRP → Adds three-dimensional and CHIRP sonar views when paired with the appropriate transducer.
- LightHouse North America Charts preloaded → Gives you chart coverage for supported North American waters without buying a separate chart package at installation.

Who Is This For?

This model suits small center-consoles, bay boats, aluminum fishing boats, and trailerable coastal boats that need Raymarine charting and sonar in a compact display. It is also useful when keypad operation is preferred over touch controls.

It is not ideal for a large offshore boat or a helm where several data panels must remain visible at once; the 7-inch 800 x 480 display has less viewing area than the Axiom 2 Pro 9 or 12-inch MFDs. It is also not a complete fishfinder package because the transducer is not included.

Compatibility

The supplied specifications confirm NMEA 2000 through SeaTalkng and WiFi networking. They do not identify compatible transducer models, autopilots, NMEA 0183 equipment, or third-party chartplotter systems. No specific incompatible system was provided; verify the exact transducer and network requirements before connecting this unit to an existing boat system.

Technical Specifications

- Brand: Raymarine
- Model: Element 7 HV, E70532-00-NAG
- Display: 7.0-inch sunlight-viewable LCD
- Resolution: 800 x 480 WVGA
- Preloaded charts: LightHouse North America Charts
- Built-in sonar: HyperVision 1.2MHz, RealVision 3D, High CHIRP
- Transducer: Not included
- Networking: NMEA 2000 via SeaTalkng, WiFi
- Warranty: 3-year limited warranty with product registration
- Origin: Designed in the UK; made in Hungary

Warranty & Support

Raymarine provides a 3-year limited warranty with product registration. The supplied information does not specify warranty exclusions or service procedures.

This no-transducer Element 7 HV is the lower-cost, compact alternative to the Axiom 2 Pro 9 RVM, with the same 7-inch-class installation advantage but a smaller 800 x 480 display and keypad-only controls. It is the right choice when helm space is limited and you want LightHouse North America Charts, NMEA 2000 through SeaTalkng, and multiple sonar modes. Choose the Axiom 2 Pro 9 instead if you need a larger HD screen and a more advanced display platform.
