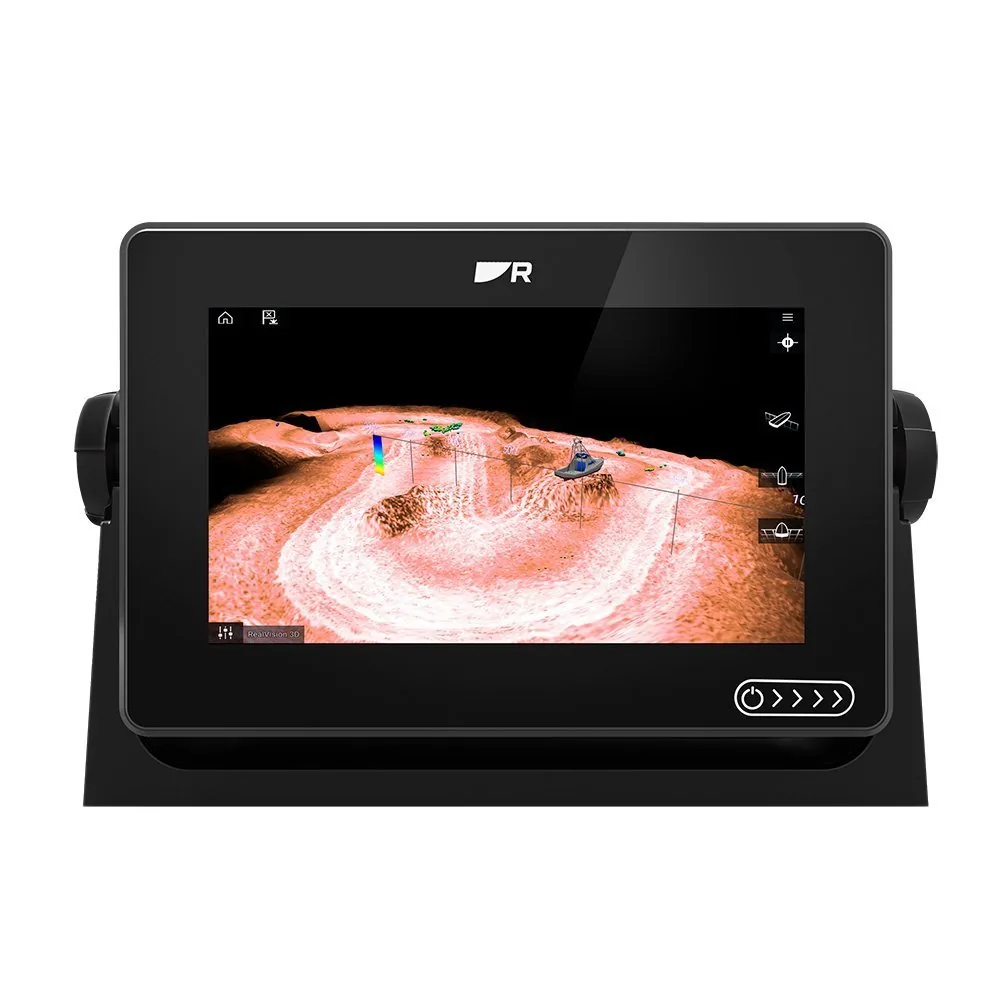

Raymarine Axiom+ 7 RV 7 Chartplotter/Fishfinder w/RV-100 T/M Transducer & Lighthouse North America Chart

The Raymarine Axiom+ 7 RV bundle combines a 7-inch HydroTough IPS display with LightHouse North America Charts and an included RV-100 RealVision 3D transom-mount transducer. RealVision 3D, 600W High CHIRP, DownVision, and SideVision give this compact chartplotter/fishfinder several sonar views, while the LightHouse 4 touchscreen interface keeps operation simple on small fishing boats and coastal cruisers.

Key Features

- 7-inch HydroTough high-density IPS display – Provides a compact but clear chart and sonar workspace.
- 1024 x 600 WSVGA resolution – Shows useful chart and imaging detail in a small helm footprint.
- RV-100 RealVision 3D all-in-one transducer included – Provides the transducer required for the listed sonar functions.
- RealVision 3D, 600W High CHIRP, DownVision, and SideVision – Offers three-dimensional, downward, side-looking, and conventional sonar views.
- Full touchscreen with LightHouse 4 OS – Provides touch-based control for charts, sonar, and system menus.

Who Is This For?

This bundle suits small center consoles, bay boats, coastal fishing boats, and cruisers that need a complete Raymarine chartplotter/fishfinder package in a 7-inch display. The included RV-100 transducer makes it practical for a new installation.

It is not ideal for buyers who prefer keypad control or need a 9- or 12-inch display for constant split-screen use. The transom-mount transducer also requires a suitable mounting location on the hull.

Compatibility

Confirmed components include the RV-100 RealVision 3D transom-mount transducer, LightHouse North America Charts, RealVision 3D, High CHIRP, DownVision, SideVision, and LightHouse 4 touchscreen operation. The supplied information does not identify NMEA 2000, NMEA 0183, autopilot, radar, or third-party transducer compatibility. No named incompatible system was provided; verify Raymarine network and mounting requirements before installation.

Technical Specifications

- Brand: Raymarine
- Model: Axiom+ 7 RV, E70635-05-NAG
- Display: 7-inch HydroTough high-density IPS
- Resolution: 1024 x 600 WSVGA
- Transducer: RV-100 RealVision 3D all-in-one transom mount
- Preloaded charts: LightHouse North America Charts
- Built-in sonar: RealVision 3D, 600W High CHIRP, DownVision, SideVision
- Interface: Full touchscreen with LightHouse 4 OS
- Warranty: 3-year limited warranty with product registration
- Origin: Designed in the UK; made in Hungary

Warranty & Support

Raymarine provides a 3-year limited warranty with product registration. The supplied specifications do not state warranty exclusions or service procedures.

The Axiom+ 7 RV is the complete Raymarine choice for buyers who want the RV-100 transducer and North American charts included with a compact display. It offers more sonar views than a basic High CHIRP package, including RealVision 3D and SideVision. The trade-off is the 7-inch touchscreen, which is easy to fit but provides less viewing area than larger Axiom and Garmin MFDs.
