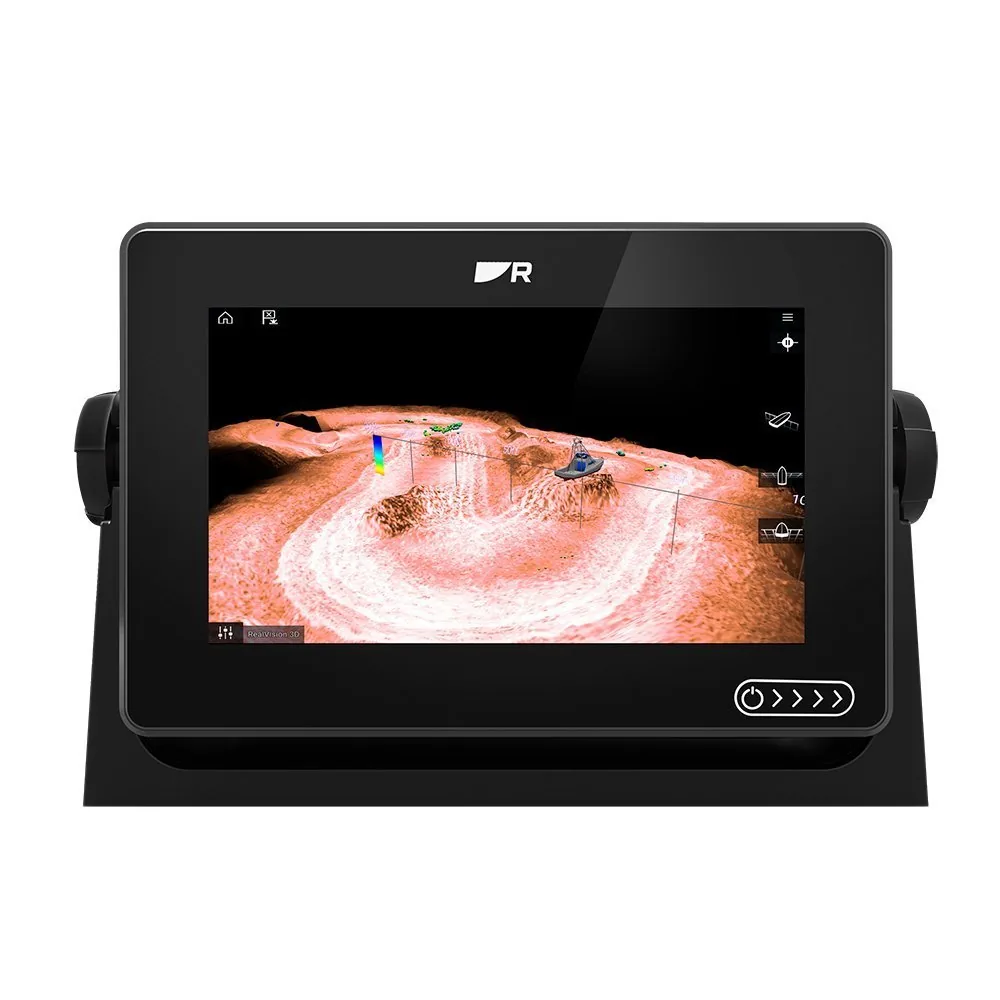

Raymarine Axiom+ 7 RV – 7 Chartplotter/Fishfinder w/Lighthouse North America Chart

Not every helm needs the 12-inch display’s footprint, and the Axiom+ 7 RV exists for exactly that smaller station — a bow-mount unit, a secondary display, or a primary chartplotter on a boat where console space is genuinely limited. It runs the same RealVision 3D sonar engine as its larger 12-inch sibling, just on a 7-inch screen sized for where that matters.

Key Features

- 7″ HydroTough High-Density IPS touchscreen at 1024×600 — smaller footprint than the Axiom+ 12 RV without dropping to a lower sonar tier.
- RealVision 3D, DownVision, and SideVision built in — the same imaging technology the 12-inch Axiom+ runs, not a scaled-down version for the smaller display.
- LightHouse North America charts preloaded — navigation-ready without a separate chart purchase.
- 1,500-nit brightness — holds up in direct sun on an open bow station where shade isn’t an option.
- RayNet Ethernet, NMEA 2000, and Bluetooth — networks into a larger Raymarine system the same way the 12-inch Axiom+ and Axiom 2 Pro lines do.

Who This Is For

Fits boats where a 7-inch display is the practical ceiling for the mounting location — a bow station, a smaller center console, or a secondary display paired with a larger unit at the main helm. It’s not the right pick if you want the largest single-display screen your budget allows; the Axiom+ 12 RV or Axiom 2 Pro 9 RVM both offer more screen for a primary station.

Compatibility

Confirmed compatible: NMEA 2000 devices, RayNet Ethernet for networking additional Axiom or Axiom+ displays, and Bluetooth accessories. This unit ships with no transducer — RealVision 3D, DownVision, and SideVision need an RV-series transducer connected before they show anything, and that transducer is a separate purchase on this listing.

Technical Specifications

- Display: 7.0″ HydroTough High-Density IPS, 1024×600 (WSVGA)
- Charts: LightHouse North America, preloaded
- Sonar: RealVision 3D, High CHIRP, DownVision, SideVision
- Transducer: Not included
- Brightness: 1,500 nits
- Processor: Quad-core
- Storage: 16GB solid state
- Networking: NMEA 2000, RayNet Ethernet, Wi-Fi, Bluetooth

Warranty & Support

Covered by Raymarine’s 2-year standard limited warranty, extendable to 3 years free with online registration within 90 days of purchase.

Against the Axiom+ 12 RV, the trade is straightforward: less screen for a station that doesn’t need or fit more, at the same sonar capability. If you’re mounting this as a secondary display alongside a larger primary unit, that trade works entirely in your favor.
