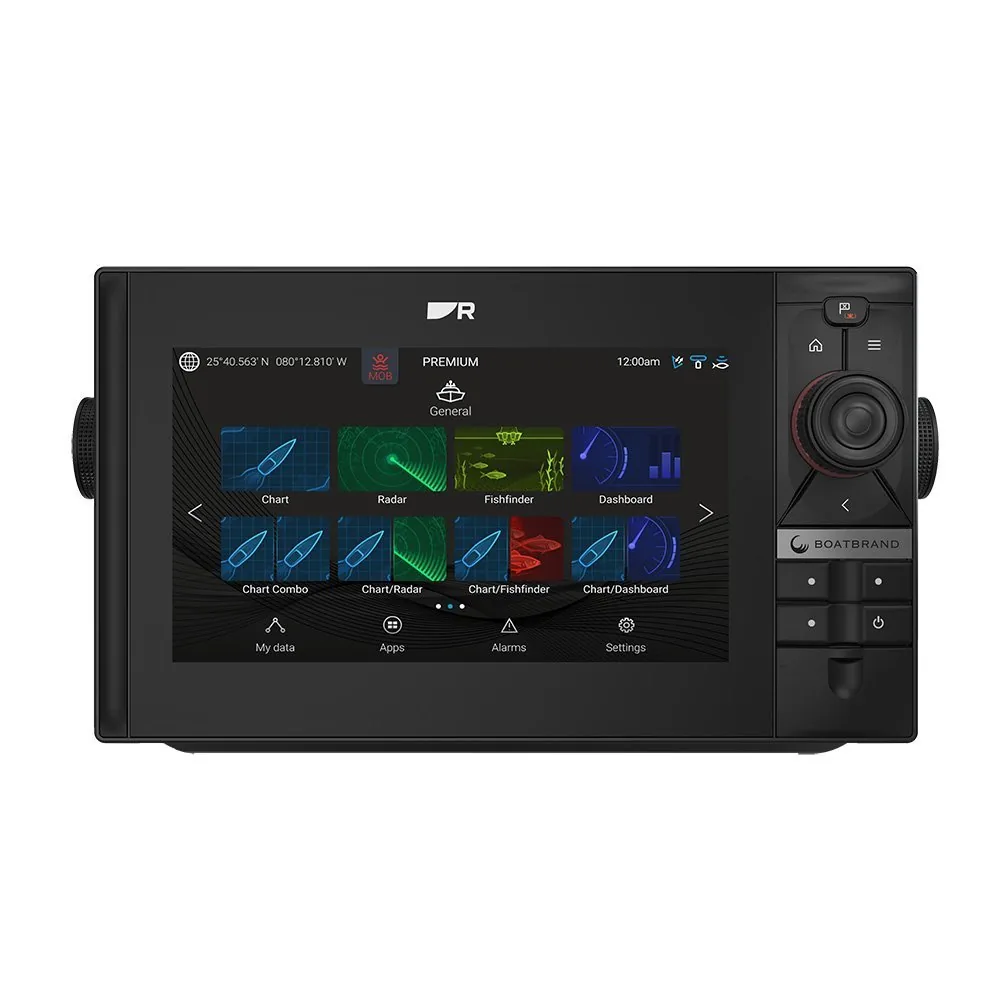

Raymarine Axiom 2 Pro 9 S 9 Chartplotter/Fishfinder – No Transducer or Chart

The Raymarine Axiom 2 Pro 9 S is a 9-inch HydroTough IPS chartplotter and fishfinder display with HybridTouch controls, built-in single-channel High CHIRP sonar, and a base map. No detailed charts or transducer are included, so this version suits buyers building a Raymarine installation who want to select those components separately. The 1280 x 720 HD display provides more detail than smaller 800 x 480 Element models.

Key Features

- 9-inch HydroTough IPS touchscreen – Provides a clear chart and sonar workspace for a compact helm.
- 1280 x 720 HD resolution – Shows sharper chart and system detail than 800 x 480 displays.
- Built-in single-channel High CHIRP – Supports conventional fishfinding when paired with a compatible transducer.
- HybridTouch touchscreen and keypad – Provides touch operation plus physical controls for wet or moving conditions.
- Base map only – Provides basic reference mapping, while detailed charts must be added separately.

Who Is This For?

This model suits coastal fishing boats, small cruisers, center consoles, and Raymarine owners planning a custom installation. HybridTouch is useful when you want touchscreen speed but still need physical controls for spray, gloves, or boat movement.

It is not ideal for buyers who want a complete chartplotter/fishfinder package, because neither detailed charts nor a transducer is included. It is also less suitable for anglers seeking multiple scanning sonar views.

Compatibility

Confirmed features include HybridTouch touchscreen and keypad control, built-in single-channel High CHIRP sonar, and base-map operation. The supplied information does not identify a specific compatible transducer, NMEA 2000, NMEA 0183, WiFi, Bluetooth, radar, or autopilot system. No named incompatible system was provided; verify Raymarine network, chart, and transducer requirements before installation.

Technical Specifications

- Brand: Raymarine
- Model: Axiom 2 Pro 9 S, E70654
- Display: 9-inch HydroTough IPS touchscreen
- Resolution: 1280 x 720 HD
- Built-in sonar: Single-channel High CHIRP
- Charts: Not included; base map only
- Transducer: Not included
- Interface: HybridTouch touchscreen and keypad
- Warranty: 3-year limited warranty with product registration
- Origin: Designed in the UK; made in Hungary

Warranty & Support

Raymarine provides a 3-year limited warranty with product registration. The supplied specifications do not state warranty exclusions or service procedures.

The Axiom 2 Pro 9 S is the custom-installation alternative to Raymarine bundles that include charts or a transducer. Its 9-inch 1280 x 720 screen and HybridTouch controls place it above the smaller Element display platform, but the base map and missing transducer create additional setup work. Choose it when you want to specify the chart and sonar hardware yourself, not when you need a ready-to-fish package.
