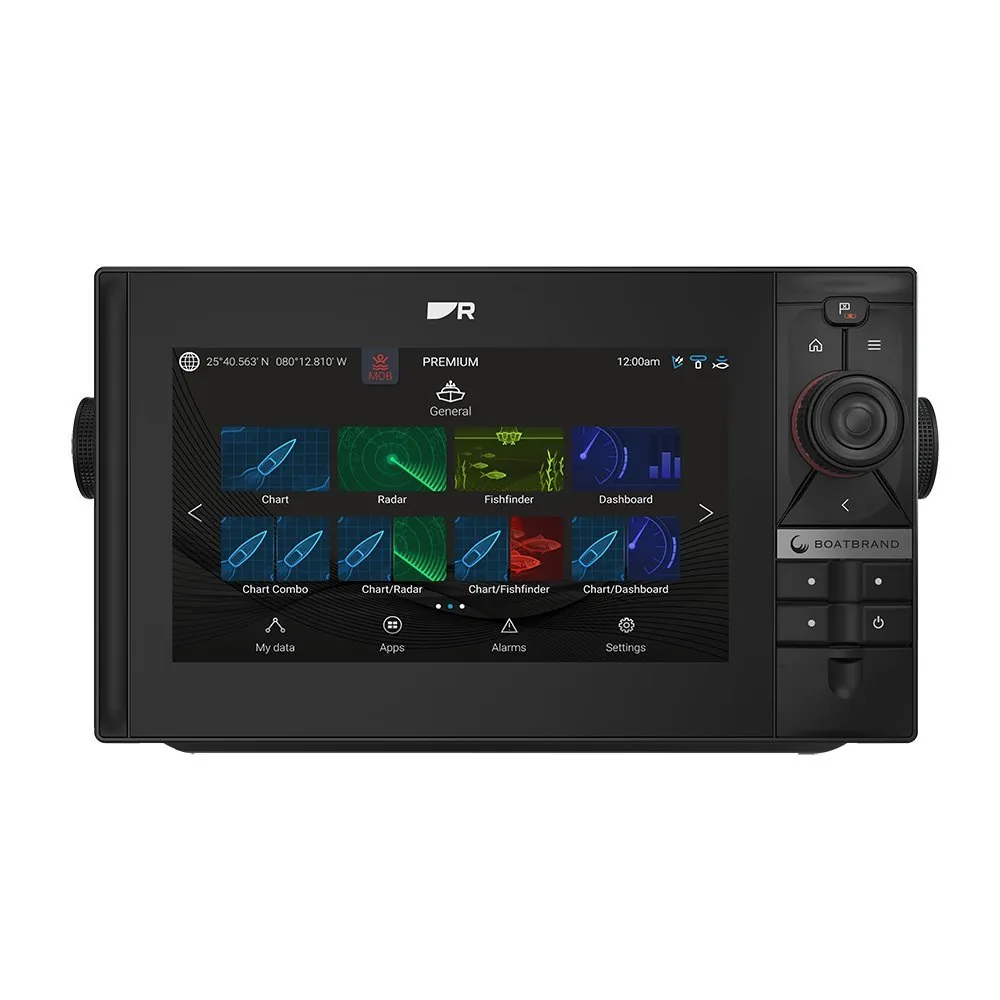

Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder – No Transducer

Running a center console through afternoon chop with one hand on the wheel is exactly the situation Raymarine had in mind when it kept a physical keypad on the Axiom 2 Pro RVM — a backup for when a wet touchscreen stops cooperating, and the IPX6/IPX7 rating means spray over the console isn’t a concern either. The Axiom 2 Pro 9 RVM pairs a 9-inch HydroTough IPS touchscreen with Raymarine’s RealVision MAX sonar engine, giving anglers one display that plots the route, marks structure, and grows into a full networked helm as your boat’s electronics expand.

Key Features

- 6-core processor drives the LightHouse interface — menus and chart redraws stay quick even flipping between full-screen sonar and split-screen navigation at speed.
- HydroTough nano-coated 9″ IPS touchscreen (1280×720 HD) rated IPX6/IPX7 — glare stays low in direct sun, and spray or a dropped hose won’t bother it.
- RealVision MAX sonar (600W CHIRP) plus a separate 1kW dual-channel CHIRP — reads structure and suspended fish with real detail instead of the fuzzy blobs a standard 2D sounder shows.
- Bluetooth alongside built-in Wi-Fi and the Raymarine app — pair a wireless headset or check the chart from the cockpit without walking back to the helm.
- Two RayNet ports plus NMEA 2000 and SeaTalkNG — this works standalone now, but it’s built to network with additional Axiom displays, radar, or sonar modules later without swapping hardware.

Who This Is For

This suits anglers who want one display handling navigation and fish-finding together, and who plan to grow the system over time rather than replace the whole helm at once. It’s a poor fit if you just want a basic depth-and-arches fishfinder for a small skiff: this is a premium MFD, it ships with no transducer, and you’ll need to budget for one separately before RealVision MAX does anything at all.

Compatibility

Confirmed compatible: NMEA 2000 devices, SeaTalkNG networks, additional Raymarine Axiom displays and Raymarine radar/sonar modules over RayNet, and Bluetooth accessories. One thing worth knowing before you buy: this SKU includes no transducer, and Raymarine’s RealVision MAX imaging (600W CHIRP DownVision/SideVision/3D) only activates with an RVM-compatible transducer — an older Raymarine CHIRP-only transducer won’t unlock it.

Technical Specifications

- Display: 9.0″ HydroTough IPS touchscreen, 1280×720 HD
- Processor: 6-core
- Sonar: RealVision MAX 600W CHIRP + 1kW dual-channel CHIRP
- Transducer: Not included
- Networking: 2x RayNet, NMEA 2000 (SeaTalkNG), Wi-Fi, Bluetooth
- Storage: 64GB solid state
- Water rating: IPX6 / IPX7
- Dimensions (surface mount): 11.78″ x 6.84″ x 2.56″

Warranty & Support

Covered by Raymarine’s 2-year standard limited warranty against defects in materials and workmanship. Register online within 90 days of purchase and Raymarine extends that to 3 years at no extra cost.

Compare it to the smaller Axiom 2 Pro 7, and the case for the 9-inch comes down to screen real estate for split-screen views and more room to grow the network later. If your fishing already involves route-planning and you’re likely to add electronics over the next few seasons, that’s the trade-off that works in your favor — just don’t forget the transducer is a separate purchase.
