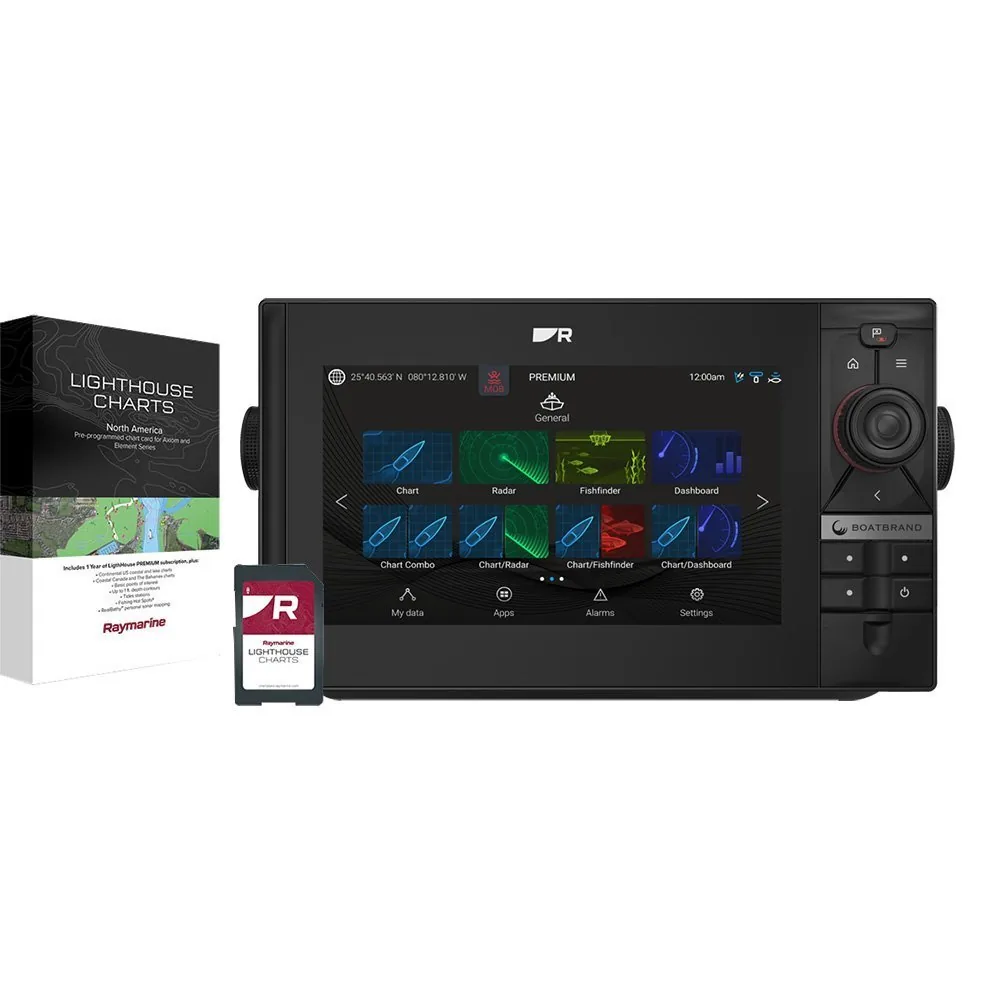

Raymarine Axiom 2 Pro 9 RVM Chartplotter/Fishfinder – Lighthouse North America Chart – No Transducer

On a compact center-console or coastal cruiser, a 9-inch display gives you room to keep the chart visible while checking sonar without crowding the helm. The Raymarine Axiom 2 Pro 9 RVM is a marine chartplotter fishfinder with North American LightHouse charts, HybridTouch controls, and built-in RealVision MAX sonar processing. This version does not include a transducer, so it suits an installation where you already have one selected.

Key Features

- 9-inch HydroTough IPS touchscreen → Gives you more usable chart and sonar space than a 7-inch display.
- 1280 x 720 HD resolution → Produces clearer chart labels and split-screen detail than the Element 7 HV’s 800 x 480 screen.
- RealVision MAX and 1kW dual-channel CHIRP sonar → Provides a capable fishfinding platform, but a compatible transducer is required and not included.
- HybridTouch touchscreen and keypad → Lets you use touch for quick selections and physical controls when spray, gloves, or boat movement make touch less convenient.
- LightHouse North America Charts → Provides preloaded chart coverage for supported North American waters.

Who Is This For?

This model suits coastal fishing boats, trailerable offshore boats, and cruisers that need a larger Raymarine display in a moderate-size helm. It is especially useful for buyers who want the Axiom 2 Pro platform and already have a transducer plan.

It is not the right choice if you need a complete fishfinder package ready to install, because no transducer is included. Buyers who need a much larger viewing area should consider a 12-inch-class MFD instead.

Compatibility

The supplied specifications confirm Raymarine HybridTouch operation and the built-in RealVision MAX/1kW dual-channel CHIRP sonar platform, but they do not identify compatible transducer models, autopilots, NMEA 2000, NMEA 0183, or third-party chartplotter networks. No named incompatible system was provided, so exact transducer and network compatibility must be verified before purchase.

Technical Specifications

- Brand: Raymarine
- Model: Axiom 2 Pro 9 RVM, E70654-00-NAG
- Display: 9-inch HydroTough IPS touchscreen
- Resolution: 1280 x 720 HD
- Preloaded charts: LightHouse North America Charts
- Built-in sonar: RealVision MAX and 1kW dual-channel CHIRP
- Transducer: Not included
- Interface: HybridTouch touchscreen and keypad
- Warranty: 3-year limited warranty with product registration
- Origin: Designed in the UK; made in Hungary

Warranty & Support

Raymarine provides a 3-year limited warranty with product registration. The supplied information does not specify exclusions or service procedures, so those details should be confirmed in Raymarine’s current warranty documentation.

The Axiom 2 Pro 9 RVM sits above the Raymarine Element 7 HV in display size, resolution, and control style, while taking less helm space than a 12-inch MFD. Its main trade-off is the missing transducer: you receive the stronger sonar platform but must select and purchase the transducer separately. Choose this model for a 9-inch Raymarine installation with room to build a matched sonar system, not for a bundled ready-to-fish package.
