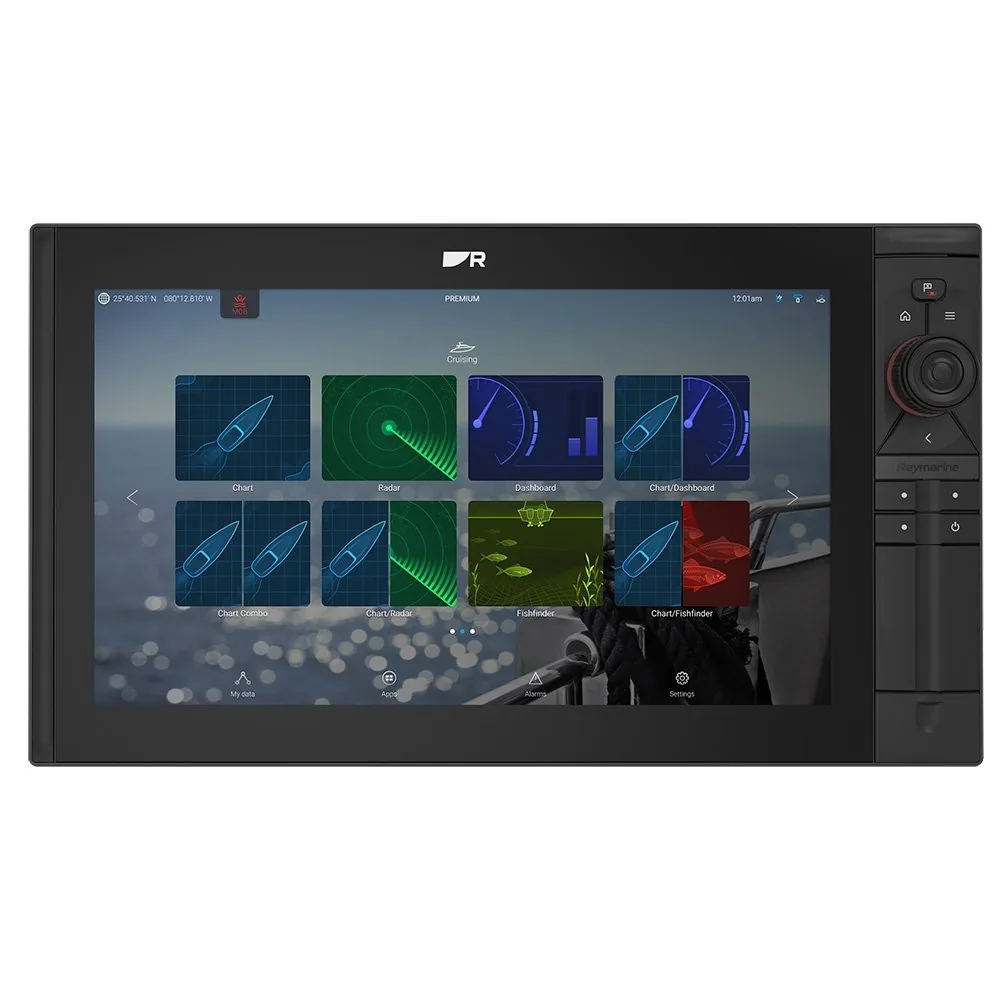

Raymarine Axiom 2 Pro 16 S 15.6 Chartplotter/Fishfinder – No Chart or Transducer

The Raymarine Axiom 2 Pro 16 S display-only model provides a 15.6-inch HydroTough IPS Full HD touchscreen, built-in single-channel High CHIRP, a six-core processing platform, and HybridTouch control. No detailed charts or transducer are included, so this version is intended for a custom Raymarine installation where chart data and sonar hardware will be selected separately.

Key Features

- 15.6-inch HydroTough IPS touchscreen – Provides a large workspace for charts, sonar, and vessel data.
- 1920 x 1080 Full HD resolution – Shows detailed information across the large display.
- Built-in single-channel High CHIRP – Supports conventional fishfinding when paired with a suitable transducer.
- Six-core processing power – Provides the stated processing platform for the Axiom 2 Pro 16 S.
- No charts or transducer included – Leaves the buyer free to choose chart coverage and sonar hardware for the installation.

Who Is This For?

This model suits large offshore boats, commercial-style helms, cruisers, and multi-display installations that need a 15.6-inch Raymarine display. It is useful for buyers replacing a control head or building a custom electronics system.

It is not ideal for a small console or a buyer who needs a ready-to-use chartplotter/fishfinder. Detailed charts and the transducer must both be added separately before full chart and sonar use.

Compatibility

Confirmed features include the 15.6-inch HydroTough IPS display, single-channel High CHIRP, six-core processing power, and HybridTouch control. The supplied information does not identify compatible transducer models, chart systems, NMEA 2000, NMEA 0183, radar, autopilot, or third-party networks. No named incompatible system was provided; verify Raymarine chart, sonar, and network requirements before installation.

Technical Specifications

- Brand: Raymarine
- Model: Axiom 2 Pro 16 S, E70656
- Display: 15.6-inch HydroTough IPS touchscreen
- Resolution: 1920 x 1080 pixels
- Built-in sonar: Single-channel High CHIRP
- Charts: None
- Transducer: Not included
- Processor: Six-core processing power
- Warranty: 3-year limited warranty with registration
- Origin: Designed in the UK; made in Hungary

Warranty & Support

Raymarine provides a 3-year limited warranty with registration. The supplied specifications do not state warranty exclusions or service procedures.

The no-chart, no-transducer Axiom 2 Pro 16 S is the most flexible but least complete version of this large Raymarine display. It retains the 15.6-inch Full HD screen, HybridTouch operation, and High CHIRP platform while leaving chart and sonar selection open. Choose it for a custom or replacement installation; choose the charted version if North American LightHouse coverage is required immediately.
