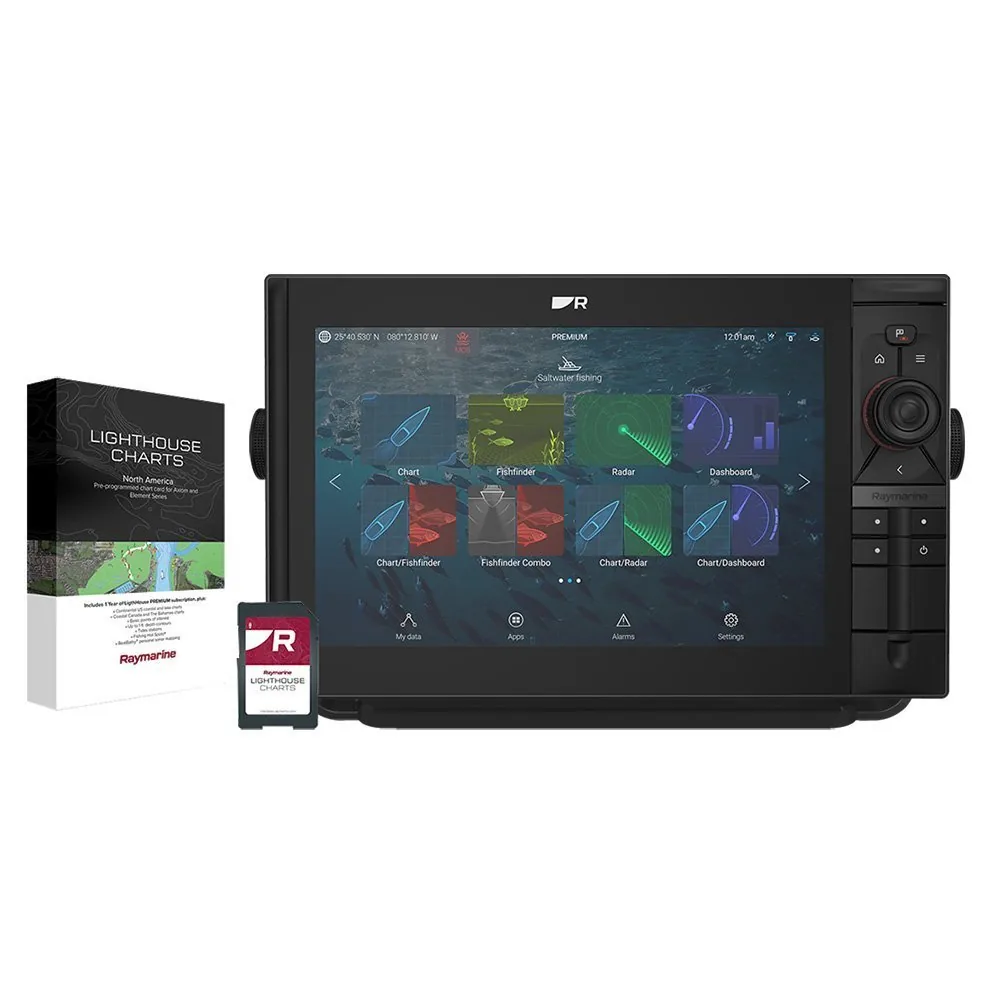

Raymarine Axiom 2 Pro 12 S 12 Chartplotter/Fishfinder w/Lighthouse North America Chart – No Transducer

The Raymarine Axiom 2 Pro 12 S is a large 12.1-inch marine chartplotter and fishfinder with preloaded LightHouse North America Charts, a HydroTough IPS touchscreen, and HybridTouch control through both touchscreen and keypad. Its built-in single-channel High CHIRP sounder requires a separate transducer, making this model better suited to a planned Raymarine installation than a complete ready-to-fish package.

Key Features

- 12.1-inch HydroTough IPS touchscreen – Provides a large chart and sonar workspace for a standing helm.
- 1280 x 800 WXGA resolution – Offers more chart and data detail than smaller 800 x 480 displays.
- Single-channel High CHIRP sonar – Provides a sounder platform for fishfinding when paired with a compatible transducer.
- HybridTouch touchscreen and keypad – Allows quick touch operation and physical control when spray, gloves, or boat movement make touch less practical.
- LightHouse North America Charts – Provides preloaded chart coverage for supported North American waters.

Who Is This For?

This unit suits offshore fishing boats, larger coastal cruisers, and vessels with enough dash space for a 12.1-inch multifunction display. The large screen is useful when charts, sonar, and other information must remain visible together.

It is not ideal for a small console or buyers who need a complete sonar bundle. The transducer is not included, and the single-channel High CHIRP sounder is less extensive than systems that include multiple scanning sonar modes.

Compatibility

Confirmed compatibility includes Raymarine HybridTouch control, LightHouse North America Charts, and the built-in single-channel High CHIRP sounder. The supplied information does not identify compatible transducer models, NMEA 2000, NMEA 0183, autopilot, radar, or third-party chartplotter systems. No named incompatible system was provided; verify Raymarine network and transducer requirements before ordering.

Technical Specifications

- Brand: Raymarine
- Model: Axiom 2 Pro 12 S, E70655-00-NAG
- Display: 12.1-inch HydroTough IPS touchscreen
- Resolution: 1280 x 800 WXGA
- Built-in sonar: Single-channel High CHIRP
- Transducer: Not included
- Preloaded charts: LightHouse North America Charts
- Interface: HybridTouch touchscreen and keypad
- Warranty: 3-year limited warranty with product registration
- Origin: Designed in the UK; made in Hungary

Warranty & Support

Raymarine provides a 3-year limited warranty with product registration. The supplied specifications do not state warranty exclusions or service procedures.

The Axiom 2 Pro 12 S is the right Raymarine choice when screen size is the priority. Its 12.1-inch 1280 x 800 display is much easier to work from than a 7-inch unit, and HybridTouch gives you both touch and physical control. The trade-off is the separate transducer and single-channel High CHIRP sounder, so choose this model for a large Raymarine chartplotter platform rather than an all-inclusive sonar package.
