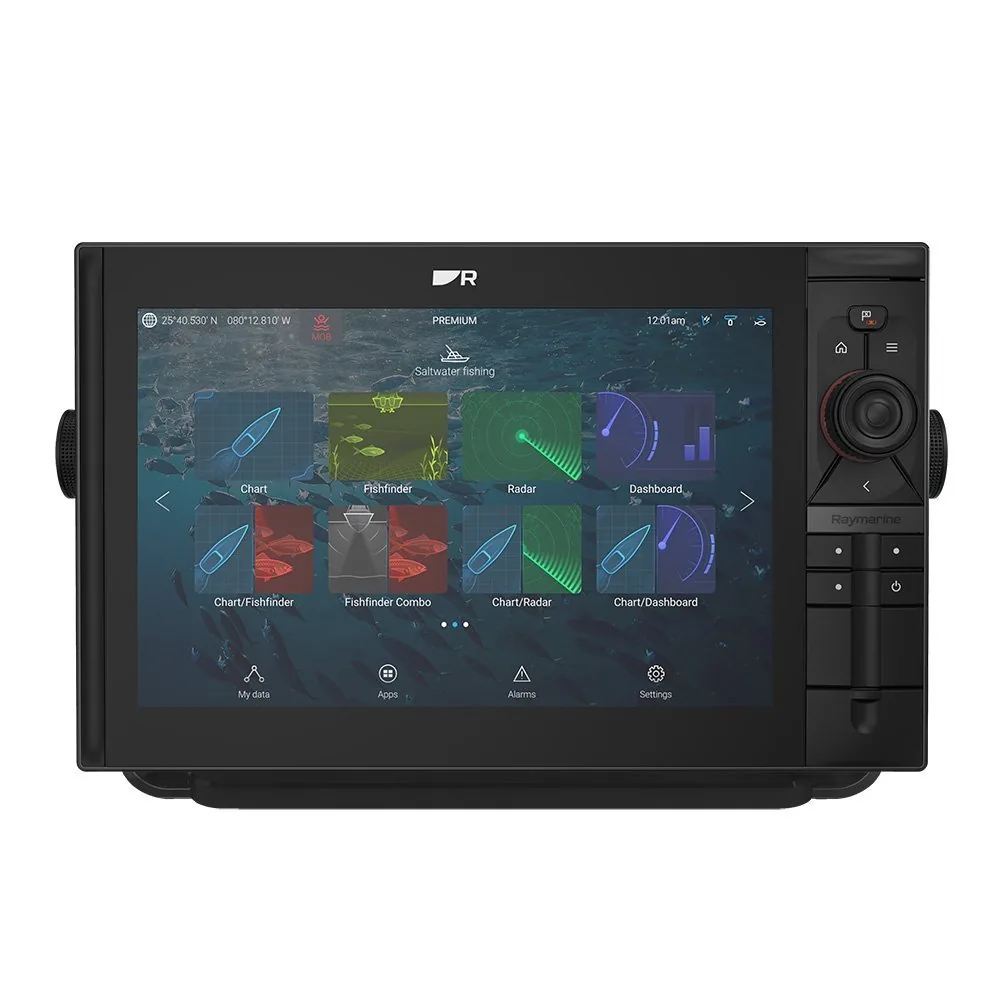

Raymarine Axiom 2 Pro 12 S 12 Chartplotter/Fishfinder – No Chart or Transducer

The Raymarine Axiom 2 Pro 12 S is a 12.1-inch HydroTough IPS touchscreen with 1280 x 800 resolution, built-in single-channel High CHIRP, and HybridTouch touchscreen plus keypad control. This version includes no charts or transducer, so it suits a planned Raymarine installation where both components will be selected separately. Its smaller footprint makes it easier to fit than the 15.6-inch Axiom 2 Pro 16 S.

Key Features

- 12.1-inch HydroTough IPS touchscreen – Provides a large chart and sonar workspace while requiring less helm space than a 16-inch unit.
- 1280 x 800 resolution – Shows useful detail across charts, sonar, and system information.
- Built-in single-channel High CHIRP – Supports conventional fishfinding when paired with a compatible transducer.
- HybridTouch touchscreen and keypad – Provides touch control and physical operation in wet or moving conditions.
- No charts or transducer included – Allows separate selection of chart coverage and sonar hardware.

Who Is This For?

This model suits coastal fishing boats, offshore cruisers, larger center consoles, and Raymarine owners building a custom installation. The 12.1-inch format provides more viewing area than small MFDs without the mounting demand of the 16-inch version.

It is not ideal for buyers seeking a complete ready-to-fish package, because neither charts nor a transducer is included. The single-channel High CHIRP platform also provides less sonar channel capacity than RealVision MAX models.

Compatibility

Confirmed features include the 12.1-inch HydroTough IPS display, single-channel High CHIRP, HybridTouch touchscreen and keypad control, and the Axiom 2 Pro platform. The supplied information does not identify compatible transducer models, chart systems, NMEA 2000, NMEA 0183, radar, autopilot, or third-party networks. No named incompatible system was provided; verify Raymarine chart, sonar, and network requirements before installation.

Technical Specifications

- Brand: Raymarine
- Model: Axiom 2 Pro 12 S, E70655
- Display: 12.1-inch HydroTough IPS touchscreen
- Resolution: 1280 x 800 pixels
- Built-in sonar: Single-channel High CHIRP
- Charts: None
- Transducer: Not included
- Interface: HybridTouch touchscreen and keypad
- Warranty: 3-year limited warranty with registration
- Origin: Designed in the UK; made in Hungary

Warranty & Support

Raymarine provides a 3-year limited warranty with registration. The supplied specifications do not state warranty exclusions or service procedures.

The Axiom 2 Pro 12 S is the more compact custom-installation alternative to the Axiom 2 Pro 16 S, with a 12.1-inch display and 1280 x 800 resolution. It retains HybridTouch and single-channel High CHIRP but includes neither charts nor a transducer. Choose it when helm space is limited and you want to select the Raymarine chart and sonar components yourself.
