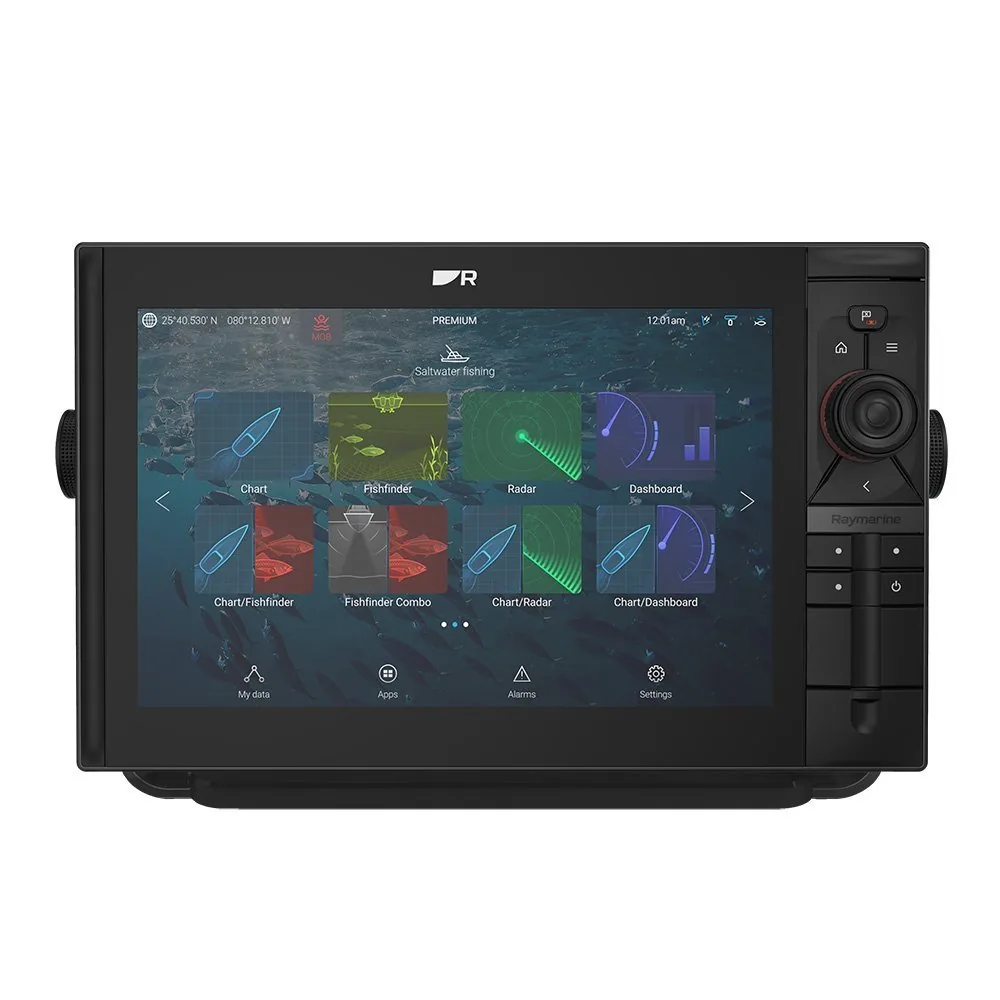

Raymarine Axiom 2 Pro 12 RVM Chartplotter/Fishfinder – No Transducer

The Raymarine Axiom 2 Pro 12 RVM is a large-format 12.1-inch chartplotter and fishfinder with a HydroTough IPS touchscreen, RealVision MAX, and 1kW dual-channel CHIRP sonar. This version includes no detailed charts or transducer, so it suits a planned Raymarine installation where both components will be selected separately. Its 64GB solid-state storage provides onboard space for system data and user information.

Key Features

- 12.1-inch HydroTough IPS touchscreen – Provides a large workspace for charts, sonar, and split-screen information.
- 1280 x 800 WXGA resolution – Shows detailed chart and sonar information across the large display.
- RealVision MAX and 1kW dual-channel CHIRP – Provides an advanced sonar platform when paired with a compatible transducer.
- 64GB solid-state storage – Provides internal storage for system data and user information.
- Base map only – Provides basic reference mapping, while detailed charts must be added separately.

Who Is This For?

This unit suits offshore fishing boats, coastal cruisers, larger center consoles, and multi-display helms with enough room for a 12.1-inch MFD. Its large screen is useful when chart and sonar information must remain visible together.

It is not ideal for buyers seeking a complete ready-to-fish package, because neither detailed charts nor a transducer is included. A smaller unit is better for a compact helm with limited mounting space.

Compatibility

Confirmed features include RealVision MAX, 1kW dual-channel CHIRP, 64GB solid-state storage, and base-map operation. The supplied information does not identify compatible transducer models, NMEA 2000, NMEA 0183, radar, autopilot, or third-party chartplotter networks. No named incompatible system was provided; verify Raymarine sonar, chart, and network requirements before installation.

Technical Specifications

- Brand: Raymarine
- Model: Axiom 2 Pro 12 RVM, E70655
- Display: 12.1-inch HydroTough IPS touchscreen
- Resolution: 1280 x 800 WXGA
- Charts: Not included; base map only
- Built-in sonar: RealVision MAX and 1kW dual-channel CHIRP
- Transducer: Not included
- Internal storage: 64GB solid state
- Warranty: 3-year limited warranty with product registration
- Origin: Designed in the UK; made in Hungary

Warranty & Support

Raymarine provides a 3-year limited warranty with product registration. The supplied specifications do not state warranty exclusions or service procedures.

The Axiom 2 Pro 12 RVM display-only version is the custom-installation alternative to the charted bundle. It keeps the large 12.1-inch display, RealVision MAX, and 1kW dual-channel CHIRP while leaving chart and transducer selection open. The trade-off is the additional setup work and cost, so choose it when you already have a Raymarine installation plan rather than needing a complete package.
