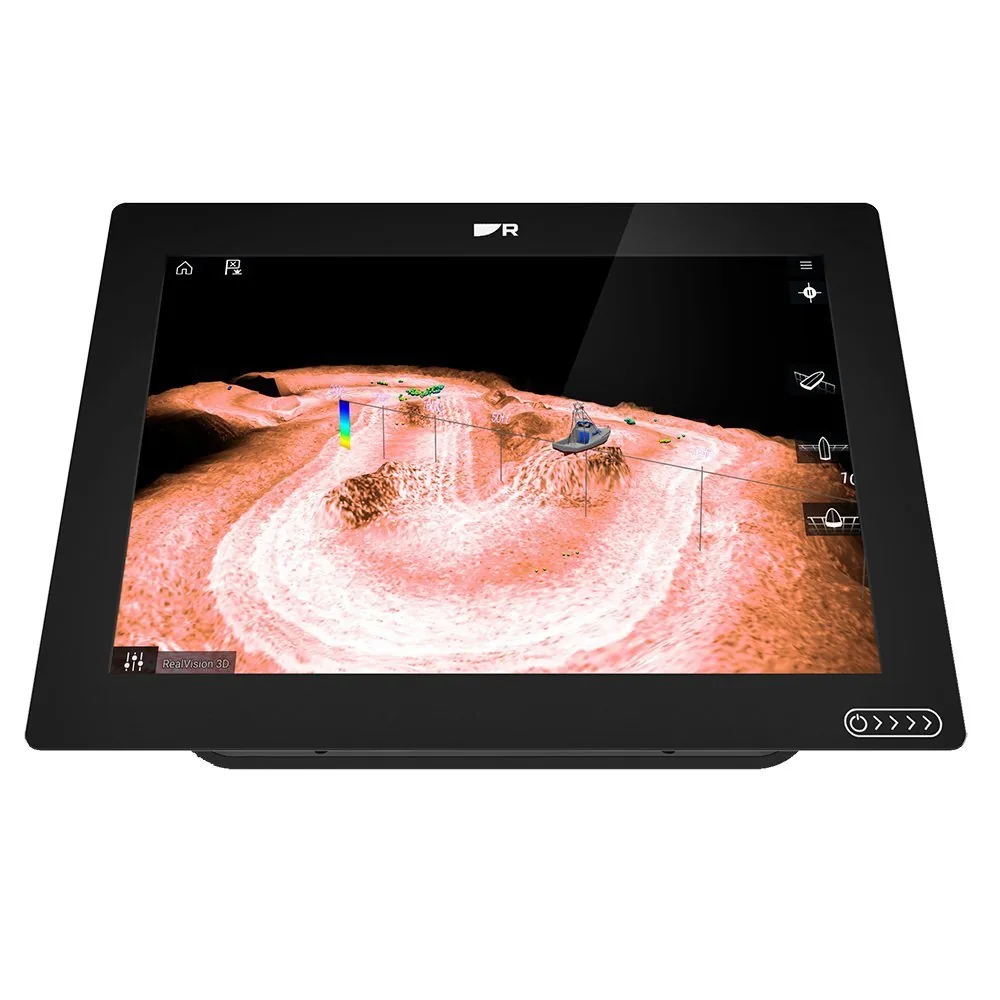

Raymarine Axiom+ 12 RV 12 Chartplotter/Fishfinder w/RV-100 T/M Transducer & Lighthouse North America Chart

A bigger screen doesn’t always mean newer hardware, and that’s worth knowing before the display size alone decides this purchase. The Axiom+ 12 RV bundle puts a 12.1-inch HydroTough display and an included RV-100 transducer in front of you, running on the same quad-core processor as Raymarine’s older Element line — a size upgrade, not necessarily a performance one, compared to the 6-core Axiom 2 Pro.

Key Features

- 12.1″ HydroTough High-Density IPS display at 1280×800 — meaningfully more screen than the 9″ Axiom 2 Pro or Element units, useful for a primary helm station.
- RV-100 RealVision 3D transducer included, pre-matched to the unit — RealVision 3D, DownVision, and SideVision all work without a separate transducer purchase.
- 600W High CHIRP alongside RealVision 3D — solid sonar performance, though a step below the Axiom 2 Pro RVM’s RealVision MAX engine.
- RayNet Ethernet plus NMEA 2000 and Bluetooth — networks into a larger Raymarine system the same way the Axiom 2 Pro line does.
- LightHouse North America charts preloaded — ready to navigate without a separate chart purchase.

Who This Is For

Suits anglers prioritizing screen size and an included transducer in one purchase, on a single-display helm that doesn’t need the fastest processor available. It’s a step down from the Axiom 2 Pro RVM if you specifically want RealVision MAX imaging or a 6-core processor — the Axiom+ line predates that upgrade, even though its display can run larger.

Compatibility

Confirmed compatible: NMEA 2000 devices, RayNet Ethernet for networking additional Axiom or Axiom+ displays, and Bluetooth accessories. The RV-100 transducer included here supports RealVision 3D — a generation behind the RVM (RealVision MAX) transducers the Axiom 2 Pro line uses, and the two are not interchangeable.

Technical Specifications

- Display: 12.1″ HydroTough High-Density IPS, 1280×800 (WXGA)
- Transducer: RV-100 RealVision 3D All-In-One Transom Mount, included
- Sonar: RealVision 3D, 600W High CHIRP, DownVision, SideVision
- Charts: LightHouse North America, preloaded
- Processor: Quad-core
- Storage: 16GB solid state
- Networking: NMEA 2000, RayNet Ethernet, Wi-Fi, Bluetooth
- Water rating: IPX6 / IPX7

Warranty & Support

Covered by Raymarine’s 2-year standard limited warranty, extendable to 3 years free with online registration within 90 days of purchase.

Against the Axiom 2 Pro 9 RVM, this trades processor generation and RealVision MAX imaging for a larger screen and a transducer already in the box — a fair trade if screen size and an all-in-one purchase matter more to you than the newer sonar engine.
