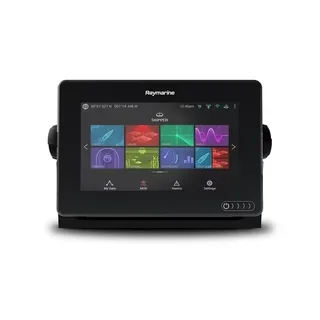

Raymarine Axiom MFD – 7, 9, 12-Inch Chartplotter & Sonar Options

The Raymarine Axiom MFD range gives boat owners a choice of 7-, 9-, or 12.1-inch touchscreen displays with built-in GNSS, LightHouse software, and integrated sonar options. Depending on the size and transducer selected, the system can provide traditional CHIRP, DownVision, SideVision, or RealVision 3D. This range suits small coastal boats through larger cruisers that want one Raymarine platform to grow with the boat.

The 7-inch model is easier to fit on a compact console, while the 12-inch version offers 1280 x 800 resolution and more room for split-screen work. Traditional sonar output is listed at 600W, with maximum depth depending on the connected transducer. LightHouse, Navionics, and C-MAP support give chart flexibility, while NMEA 2000, SeaTalkhs, WiFi, and Bluetooth connect the MFD to the wider system. A transducer is essential for the sonar functions, so the bundle choice matters.

Key Features

- 7-, 9-, and 12.1-inch display options – Lets the owner match the MFD to available helm space.
- Multi-touch LightHouse 3/4 interface – Provides direct control of charts and sonar pages.
- Traditional CHIRP and 600W sonar – Provides conventional fishfinding with a suitable transducer.
- DownVision, SideVision, and RealVision 3D options – Adds structure and imaging views depending on the model and sensor.
- LightHouse, Navionics, C-MAP, NMEA 2000, SeaTalkhs, WiFi, and Bluetooth – Supports a flexible Raymarine installation.

Who Is This For?

This Raymarine chartplotter and sonar range suits small center consoles, sailboats, cruisers, and offshore boats. It is not ideal to choose by screen size alone; the transducer and Axiom version determine which sonar views are actually available.

Compatibility

Confirmed features include built-in GPS/GNSS, LightHouse 3/4, NMEA 2000 through DeviceNet, SeaTalkhs, WiFi, Bluetooth, and compatible RealVision or CPT-S transducers. The supplied information does not identify specific radar, autopilot, Garmin, Simrad, or third-party transducer compatibility. No named incompatible system was provided.

Technical Specifications

- Brand: Raymarine
- Models: Axiom 7, Axiom 9, and Axiom 12.1
- Displays: 7-, 9-, and 12.1-inch multitouch LCD
- Resolution: 800 x 480 for 7-inch; 1280 x 800 for 12-inch
- Sonar: 50/200kHz traditional CHIRP and integrated options
- Output: 600W RMS
- Imaging: DownVision, SideVision, RealVision 3D
- GPS: Built-in GNSS, GPS/GLONASS
- Networking: NMEA 2000, SeaTalkhs, WiFi, Bluetooth
- Warranty: 3 years with registration

Warranty & Support

Raymarine provides a 3-year warranty with registration. The supplied specifications do not state warranty exclusions or service procedures.

The Axiom range is the flexible Raymarine choice because the display size and sonar package can be matched to the boat. The trade-off is that the model and transducer must be chosen together; not every Axiom setup provides RealVision 3D or SideVision. Choose it when you want a scalable Raymarine chartplotter system, not a one-size-fits-all bundle.
