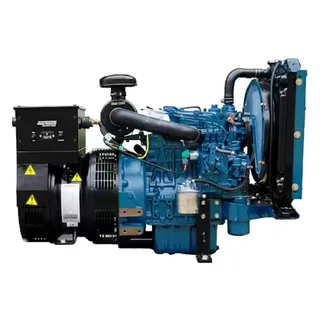

Phasor SEP-9.5 Radiator Cooled Diesel Generator 9.5kW 60Hz

The Phasor SEP-9.5 is a radiator-cooled diesel generator for applications requiring 9.5 kW of 120/240V single-phase 60Hz AC power. It uses a Kubota D1305-E three-cylinder diesel engine running at 1,800 RPM and a direct-coupled brushless generator with solid-state voltage regulation. The open-skid unit relies on its integrated radiator and engine-driven blower fan for cooling rather than a raw-water heat exchanger or keel-cooling circuit.

The generator includes a deluxe remote instrument panel with oil-pressure, coolant-temperature, voltage, and hour-meter gauges, plus automatic shutdown for low oil pressure and high coolant temperature. Proper installation requires sufficient airflow for radiator cooling, a correctly engineered exhaust route, diesel fuel system, start battery, AC distribution, grounding, and shore-power transfer equipment.

Key Specifications

- Radiator-cooled diesel generator for 120/240V single-phase 60Hz AC systems.
- Provides 9.5 kW continuous output at 1,800 RPM.
- Uses a Kubota D1305-E three-cylinder diesel engine with approximately 1,261 cc displacement.
- Provides 120/240V output with approximately 79A at 120V or 39.5A at 240V.
- Uses a direct-coupled brushless generator with solid-state voltage regulation.
- Uses an integral radiator and engine-driven blower fan for closed-loop engine cooling.
- Consumes approximately 0.90 US gallons per hour, or 3.40 L per hour, at full load.
- Measures approximately 914 mm by 533 mm by 610 mm and weighs approximately 236 kg.

Electrical Compatibility

This generator is designed for 120/240V single-phase 60Hz AC distribution. Confirm running load, simultaneous demand, power factor, and the largest motor-starting surge before selecting a 9.5 kW genset. Consider high-demand equipment including HVAC, refrigeration compressors, pumps, watermakers, battery chargers, and galley appliances.

The radiator-cooled design requires dedicated ventilation that can remove heat from the radiator and provide sufficient combustion air. Evaluate engine-room airflow and hot-air discharge routing before selecting this configuration.

Installation Considerations

Install the generator on a rigid vibration-isolated foundation with service clearance for the radiator, fan, belts, oil, filters, coolant, electrical terminals, exhaust, and fuel connections. Provide diesel feed and return, safe exhaust routing, adequate ventilation, starting battery, AC circuit breakers, grounding, and a correctly designed shore-power transfer switch or interlock. Installation and commissioning should be completed by a qualified marine generator technician.

Before Ordering

Confirm required continuous and surge load within 9.5 kW, 120/240V single-phase 60Hz compatibility, available 914 mm by 533 mm by 610 mm installation space, structural support for approximately 236 kg, sufficient radiator ventilation, diesel fuel layout, exhaust route, starting-battery circuit, AC distribution and transfer-switch design, grounding plan, service access, and qualified installation requirements before purchase.
