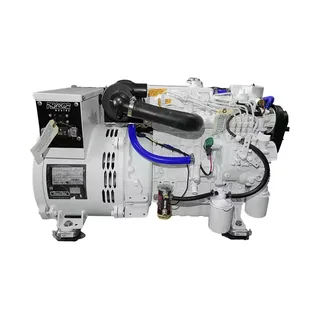

Overview Phasor K3-11.0kW 11 kW Marine Generator 120/240V

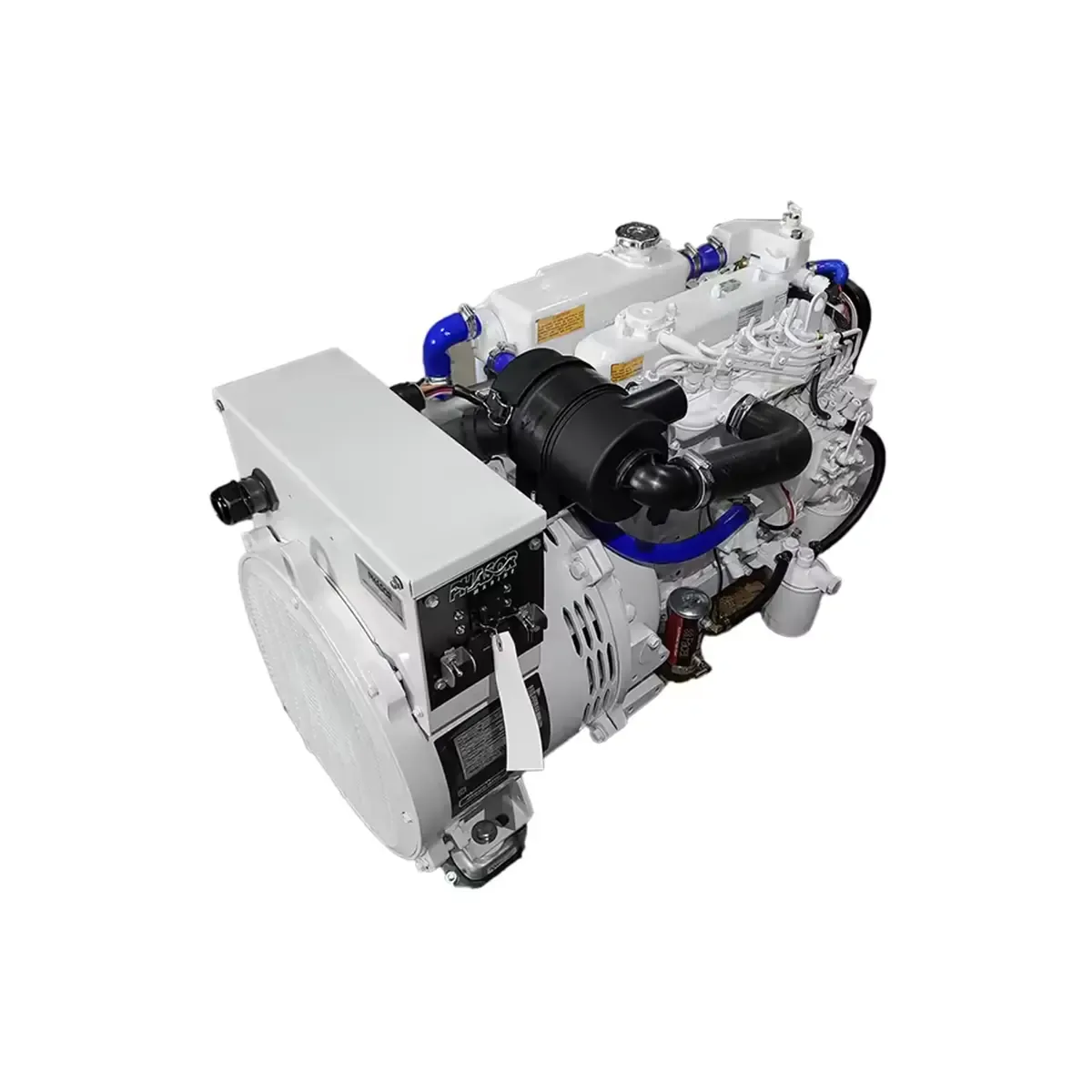

Phasor K3-11.0kW 11 kW Marine Generator 120/240V is a standard series diesel marine generator built with a Kubota D1305-E3BG three-cylinder engine and low 1800 RPM operating speed. This model is rated at 11 kW at 60 Hz and 9.0 kW at 50 Hz, with listed 120/240V output and 92.5/45.8 amp output. For buyers comparing marine generators by confirmed technical data, it offers a clear mix of output, voltage regulation, shutdown protection, and included spare service parts.

Key Features of Phasor K3-11.0kW 11 kW Marine Generator 120/240V

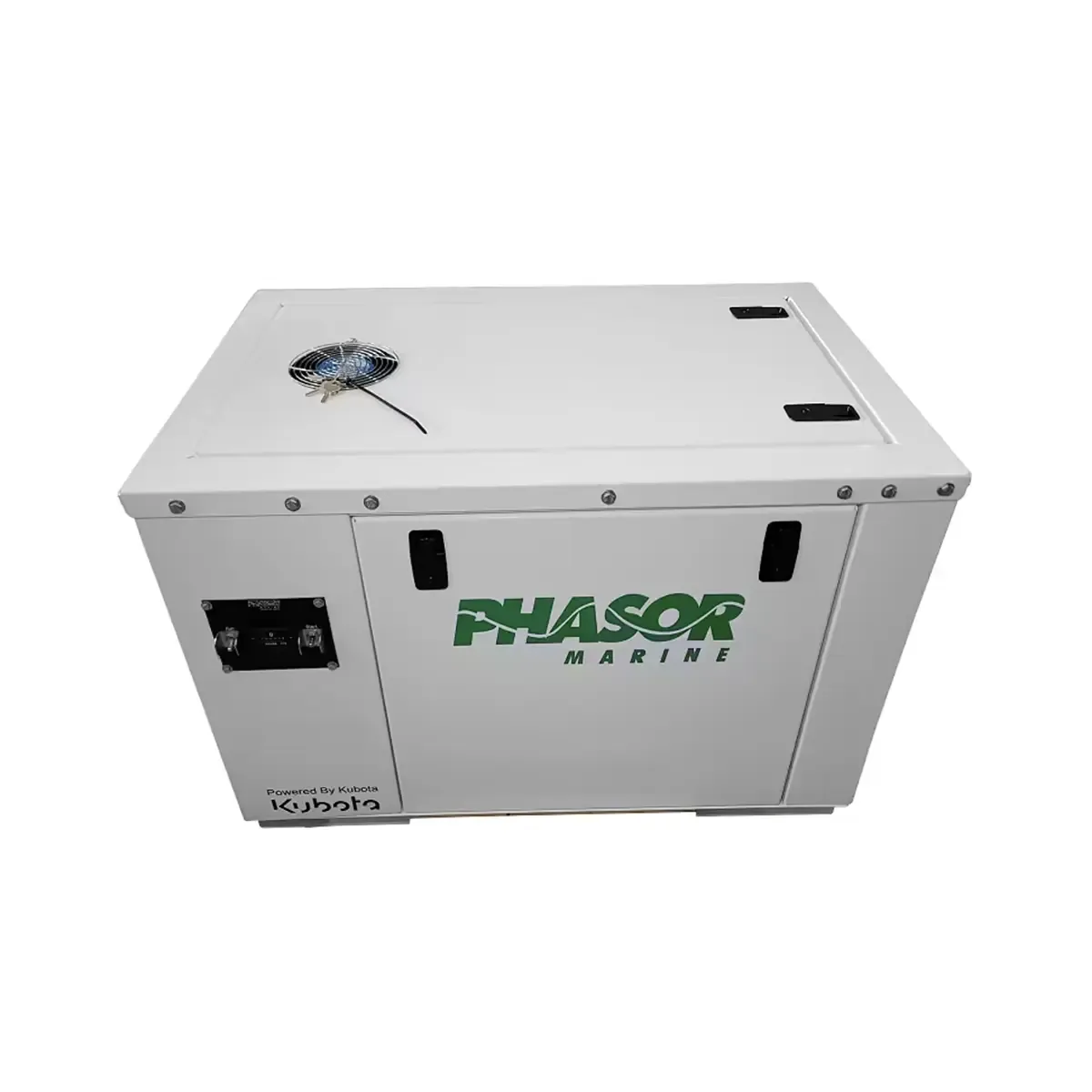

- Kubota D1305-E3BG diesel engine with three-cylinder design.
- 11 kW rated output at 60 Hz and 9.0 kW rated output at 50 Hz.
- 120/240V output with listed 92.5/45.8 amp specification.
- Low 1800 RPM operating speed.
- ±1% solid-state voltage regulation.
- Safety shutdown system for high coolant temperature or low lube oil pressure.
- Single bearing direct coupled generator design.
- Single series circuit control system with no printed circuit boards and tinned wiring.
- Fresh water double pass heat exchanger with removable integral cupro-nickel heat exchanger core.
- Water cooled exhaust manifold, stainless steel exhaust elbow cast, and gear driven raw water pump.
- Spin-on lube and fuel filters, secondary 5 micron fuel filter, and self bleed fuel system.
- Circuit breaker – single phase, electric fuel transfer pump, and belt guard.

Applications

This generator is suited to buyers looking for a diesel marine generator with stated 11 kW output at 60 Hz, dual-frequency rating details, and 120/240V configuration. It is also relevant for replacement or upgrade projects where engine model, output figures, operating speed, and service kit contents are important buying factors.

Why Choose This Marine Generator

This model gives buyers a specification-driven option with clearly stated engine, output, voltage, and fuel consumption data. The product data also confirms voltage regulation, safety shutdown protection, and multiple service-related spare parts included with the unit. The 5 year limited warranty adds a verified ownership detail for customers comparing marine generator options in this output range.
