Overview Phasor K3 6.5 kW Marine Generator 120/240V

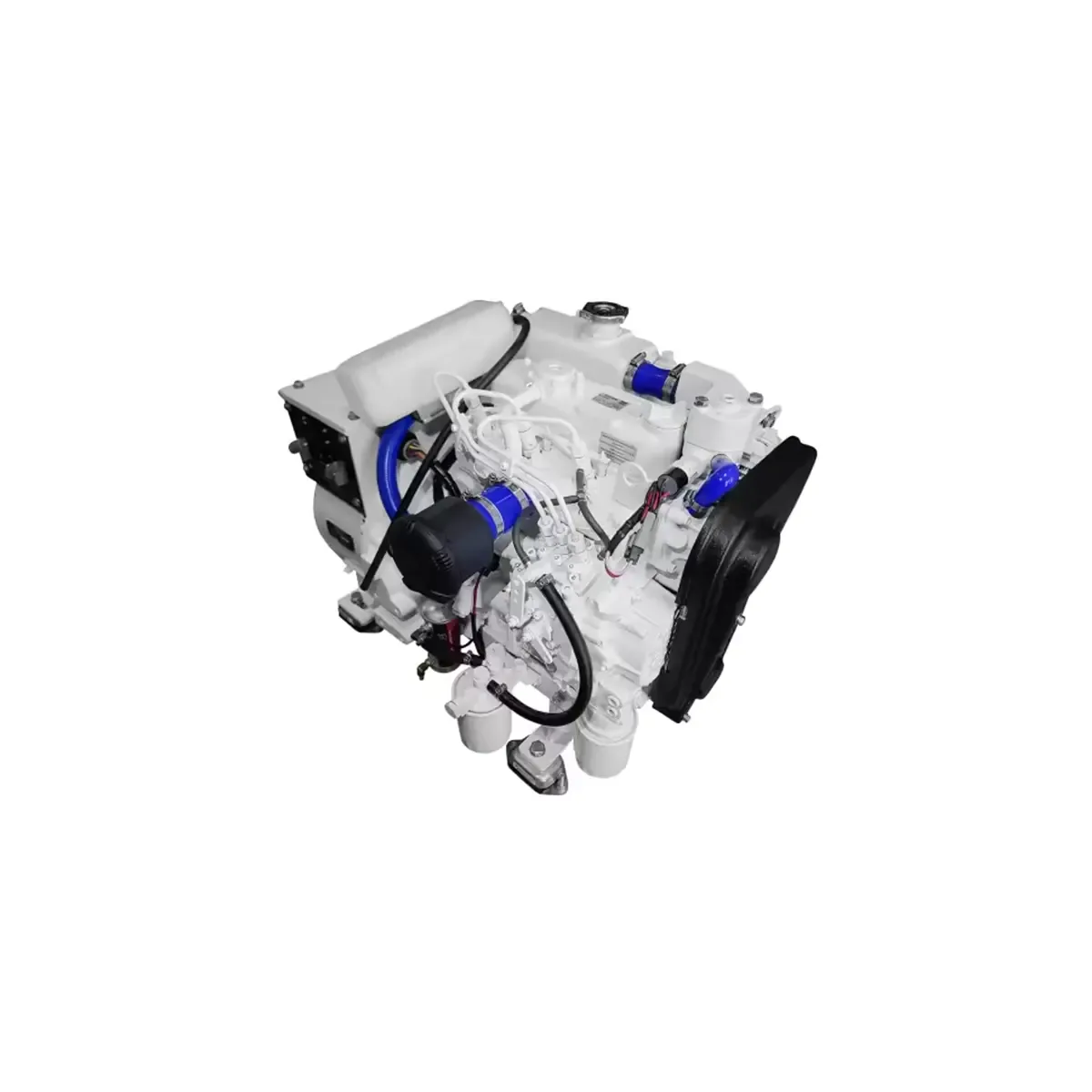

The Phasor K3 6.5 kW Marine Generator 120/240V is a compact series diesel marine generator built with a Kubota D1005-E4BG engine and a single bearing direct coupled generator. It delivers 6.5 kW at 60 Hz with 120/240V output, while operating at a low 1800 RPM for buyers who want a clearly specified low-speed generator package.

This model combines practical marine-focused construction with confirmed service and control details. The feature set includes ± 1% solid-state voltage regulation, a safety shutdown system for high coolant temperature or low lube oil pressure, a fresh water double pass heat exchanger, and a water cooled exhaust manifold with removable integral cupro-nickel heat exchanger core.

Key Features of Phasor K3 6.5 kW Marine Generator 120/240V

- 6.5 kW / 6,500 W output at 60 Hz with 120/240V electrical output.
- Kubota D1005-E4BG diesel engine with 3-cylinder configuration and 61 cubic inch displacement.
- Single bearing direct coupled generator design for this exact K3 configuration.
- Low 1800 RPM operating speed.
- ± 1% solid-state voltage regulation for tightly controlled output.
- Safety shutdown system for high coolant temperature or low lube oil pressure.
- Single series circuit control system with no printed circuit boards and tinned wiring.
- Fresh water double pass heat exchanger with zinc anode and removable cupro-nickel core.
- Gear driven raw water pump, stainless steel exhaust elbow cast, and four point stainless steel isolation mounts.
- Additional service-oriented features including self bleed fuel system, secondary 5 micron fuel filter, spin-on lube and fuel filters, and electric fuel transfer pump.

Applications

This generator is suited to buyers looking for a compact diesel marine generator with clearly defined 6.5 kW output and 120/240V, 60 Hz power specifications. It is also a practical option for installations where buyers want a lower-speed 1800 RPM generator and value confirmed cooling, fuel, and shutdown protection features in the product specification.

Why Choose This Marine Generator

The K3 stands out for its balance of compact dimensions, low-speed operation, and clearly listed marine-specific hardware. Buyers can review exact dimensions with or without enclosure, output ratings, fuel consumption figures, and line sizes without relying on vague marketing language. That makes it easier to assess whether this model fits the intended installation and service approach.

Phasor also includes a strong list of verified supporting features such as AWL-CRAFT 2000 urethane finish, USCG approved fuel lines, forged brass oil drain valve with safety lock, and molded blue silicone water hoses with stainless steel AWAB clamps. A 5 year limited warranty is listed, and optional equipment is available for buyers who may need add-ons such as remote start-stop control, stainless steel drip pan, 24 volt starting system, enclosure options, or remote oil filter kits.
