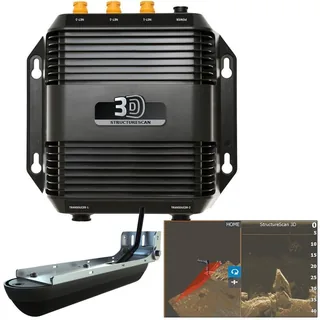

Navico StructureScan 3D SideScan Imaging f/HDS Gen3, NSS evo2 & NSO evo2

The Navico StructureScan 3D system adds three-dimensional perspective imaging, DownScan, and SideScan to compatible Lowrance and Simrad displays. It is designed for anglers who want to see structure from different angles rather than relying only on a traditional downward sonar view. The system uses a 455kHz scanning frequency and connects through the compatible display network.

SideScan reaches up to 600 feet on each side, while the 3D view is listed to 200 feet depth. ScanTrack pan-tilt-rotate and Leading Edge scanning help the operator examine structure and the area ahead of the boat. Compatibility includes Lowrance HDS Gen3, Carbon, Live, and Simrad NSS evo2/evo3 systems. The supplied listing notes that a StructureScan 3D Skimmer is included only if the bundle version is purchased, so confirm package contents carefully.

Key Features

- Multi-beam 3D sonar imaging – Provides a perspective view of underwater structure.
- DownScan and SideScan – Adds downward and side-looking imaging modes.
- 600-foot SideScan coverage per side – Provides the listed scanning range.
- 200-foot 3D depth capability – Defines the stated perspective-imaging depth range.
- ScanTrack and Leading Edge scanning – Helps control the scan direction and view structure ahead.

Who Is This For?

This StructureScan 3D sonar system suits Lowrance and Simrad freshwater fishing boats that need perspective, DownScan, and SideScan views. It is not ideal for buyers without a compatible display or for anyone expecting the transducer in every package; the supplied specifications qualify the Skimmer as bundle-dependent.

Compatibility

Confirmed compatibility includes Lowrance HDS Gen3, HDS Carbon, HDS Live, Simrad NSS evo2/evo3, StructureScan 3D, ScanTrack, and Leading Edge scanning. The supplied information does not identify Garmin, Raymarine, NMEA 2000, NMEA 0183, radar, or autopilot compatibility. No named incompatible system was provided; verify the display, module, transducer, and network arrangement before installation.

Technical Specifications

- Brand: Lowrance/Simrad Navico
- Model: StructureScan 3D, 000-12395-001
- Technology: Multi-beam 3D sonar imaging
- Views: 3D Perspective, DownScan, SideScan
- Frequency: 455kHz
- Range: 600 feet each side SideScan; 200 feet 3D depth
- Features: ScanTrack pan-tilt-rotate and Leading Edge scan
- Transducer: StructureScan 3D Skimmer if bundle purchased
- Compatibility: Lowrance HDS Gen3/Carbon/Live and Simrad NSS evo2/evo3
- Warranty: 2-year standard warranty

Warranty & Support

Navico provides a 2-year standard warranty. The supplied specifications do not state warranty exclusions or service procedures.

StructureScan 3D is the right choice when a standard sonar screen does not show enough context around the boat. Its trade-off is system dependence and a 200-foot 3D range, so it is best for structure fishing rather than deep-water sounder work. Confirm whether the transducer is included before comparing this system with a complete imaging bundle.
